10 Channels Automatic Battery Sorter for 18650 26650 and 21700 cylindrical Cell

INTRODUCTION

The 10-channel cylindrical battery sorter is a machine consisting of a voltage internal resistance tester, which is used to test the voltage internal resistance of batteries. The power of each battery is calculated according to the software settings of the host computer, and the batteries of different grades are converted according to the judgement results. Different channels for automatic classification of battery products.

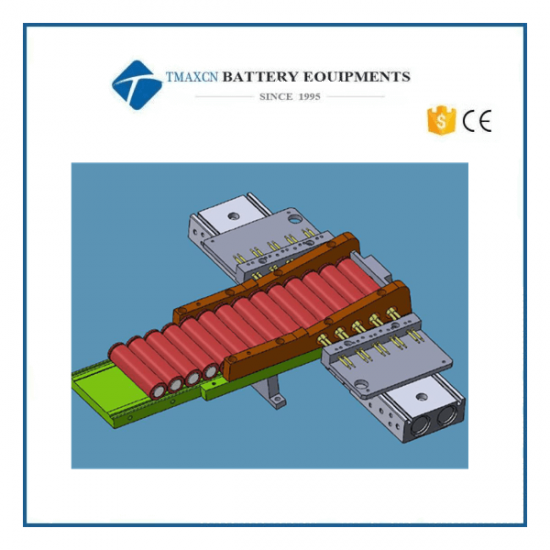

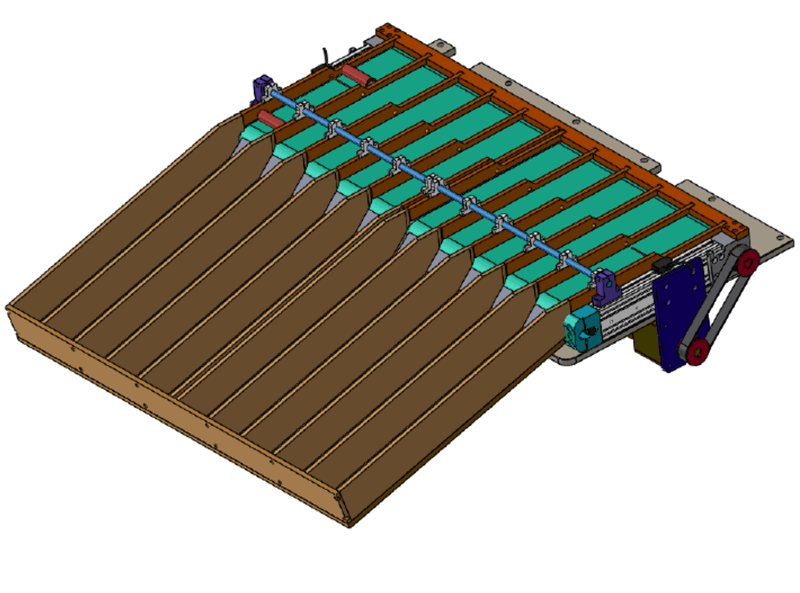

The automatic sorting device consists of feeding mechanism, detection mechanism, automatic sorting mechanism and receiver mechanism. The machine system designs and develops the upper computer software according to the user's requirement, and automatically classifies the batteries according to the grouping information, and collects them into the corresponding receivers.

FEATURE

1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

2. 10 Channel automatic cell sorter is designed to sort cylindrical cells

3. Sort by cell's voltage and impedance up to 10 groups

4. Automatic sorting control

5. Fast sorting speed ≥90PPM

6. Easy to refill cells during the process

7. Wheels design, easy to move the machine to any operating place

SPECIFICATION
