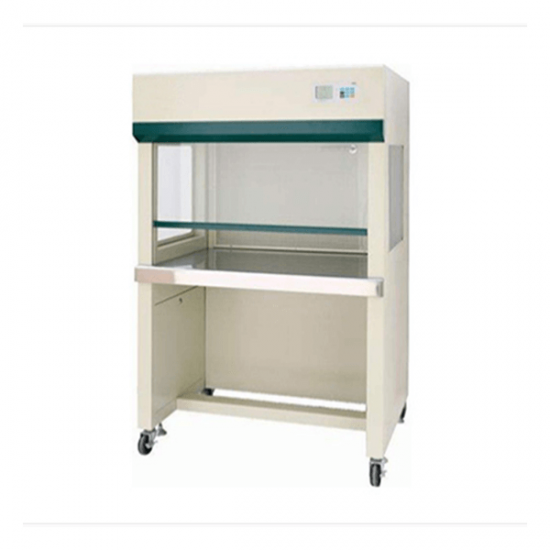

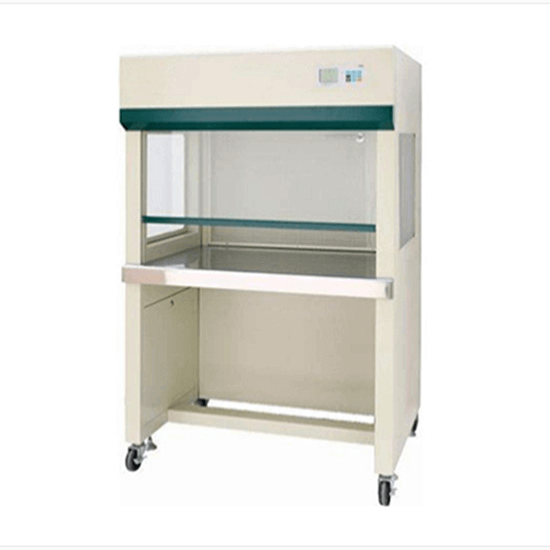

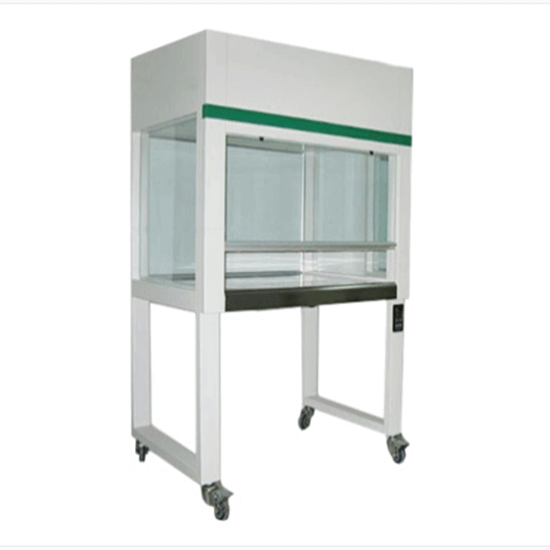

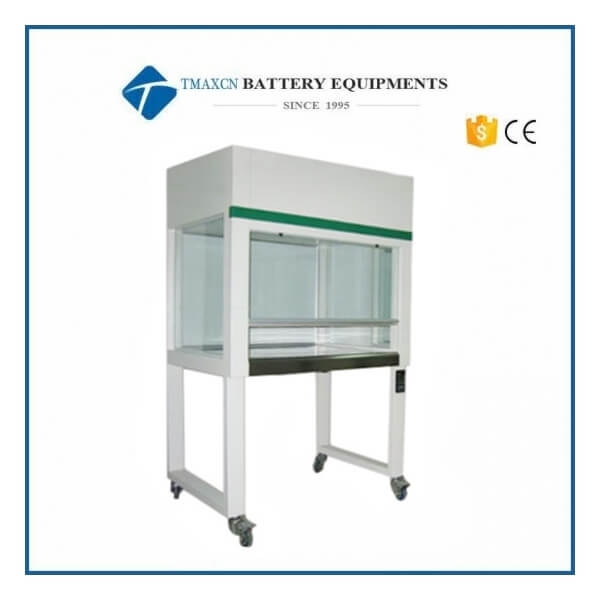

Vertical Medical Or Electronic Super Clean Workbench
Model Number:
TMAX-workbench-1Compliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Single-Side(1200×750mm) Vacuum Glove Box with H2O & O2 Purification SystemNext:
Compact Stainless Steel Vacuum Glove Box with Vacuum Flange & Gauge
Vertical Medical Or Electronic Super Clean Workbench
Product Descriptions:
The ultra-clean workbench is one of the essential equipment for biotechnology research and experimentation. It is widely used in biopharmaceutical, biochemical, environmental monitoring and electronic instrumentation industries to provide a local clean working environment.
The ultra-clean workbench is divided into Vertical Flow Clean Bench and Horizontal Flow Clean Bench according to the direction of airflow. It is divided into two types according to the operation structure: single-side operation and bilateral operation. According to its application, it can be divided into ordinary super-clean workbench and biological ( Medicine) Ultra-clean workbench.
Operating Principle
The air is sucked into the pre-filter through the fan, and the high-efficiency filter is filtered through the static pressure box, and the filtered air is sent out in a vertical or horizontal airflow state, so that the operation area reaches 100-level cleanliness (or higher cleanliness), and the operation is ensured. Production requirements for environmental cleanliness.
Product Feature
1. Horizontal manifold, open countertop, easy to operate
2. Vertical flow shape, quasi-closed table top, can effectively prevent the external airflow from being induced, and the odor of the human body during operation
3.Adopting adjustable fan system, touch switch adjusts voltage to ensure that wind speed in working area is always ideal.
4. The work surface is made of stainless steel and has good corrosion resistance.
5. Can be made into a separate table, no vibration on the table
6. Optional ultra-high efficiency filter for high cleanliness environment
7. Provide an operating environment with a cleanliness class of 100, with a filtration accuracy of ≥0.5μm
8.Using ultra-thin non-separator high efficiency air filter, occupying small space
9. With touch electronic control panel, the fan air volume can be adjusted steplessly to ensure that the wind speed in the working area is always in an ideal state.
10. Stainless steel work surface, plexiglass enclosure, can be equipped with UV light remote control electrical interface
Model |
TMAX-workbench-1A |
TMAX-workbench-1B |
TMAX-workbench-2A |
TMAX-workbench-3A |
TMAX-workbench-1C |
TMAX-workbench-2D |
Flow |
Vertical Flow |
Horizontal Flow |
||||
Cleanliness |
IOS Level 5 / Level 100 (US Federal 209E) |
|||||
Air speed |
Horizontal Flow |
|||||
noise |
≤62dB(A) |
|||||
Vibration half peak |
≤3μm |
≤5μm |
≤3μm |
≤5μm |
||
Illuminance |
≥300Lx |
|||||
Power |
AC, one-phase 220V, 50HZ |
|||||
power dissipation |
340W |
680W |
1020W |
155W |
310W |
|
Overall Dimension |
750*860*1460 |
1000*900*1460 |
1600*950*1460 |
2150*1070*1460 |
1000*750*1750 |
1750*750*1750 |
Workspace size |
650*540*570 |
900*580*570 |
1500*630*570 |
2050*750*570 |
900*700*600 |
1650*700*600 |
High efficiency filter specification and quantity |
640*610*69-1 |
890*610*69-1 |
760*610*69-2 |
1035*610*69-2 |
820*610*69-1 |
820*610*69-2 |
Specification and quantity of lighting |
20W-2 |
20W-2 |
40W-2 |
40W-3 |
20W-2 |
40W-2 |
Noted |
340W |
680W |
1020W |
155W |
310W |
