Vacuum Thermal Evaporating Carbon Coating Coater for Materials Science
Model Number:
TMAX-SD800CInput Power:
2000WCompliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportShipping Port:
XiamenMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
DC Vacuum Portable Auto Ion Sputtering Coater for Non-conductive SEM Sample PreparationNext:
DC or RF High Vacuum Magnetron Ion Sputtering Coating Coater
Vacuum Thermal Evaporating Carbon Coating Coater for Materials Science
Introduction

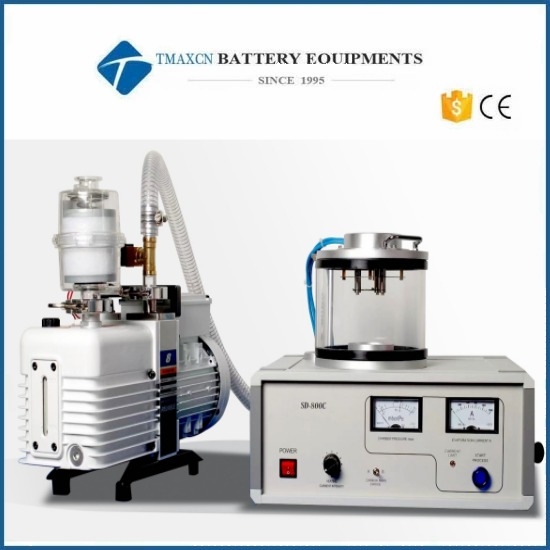

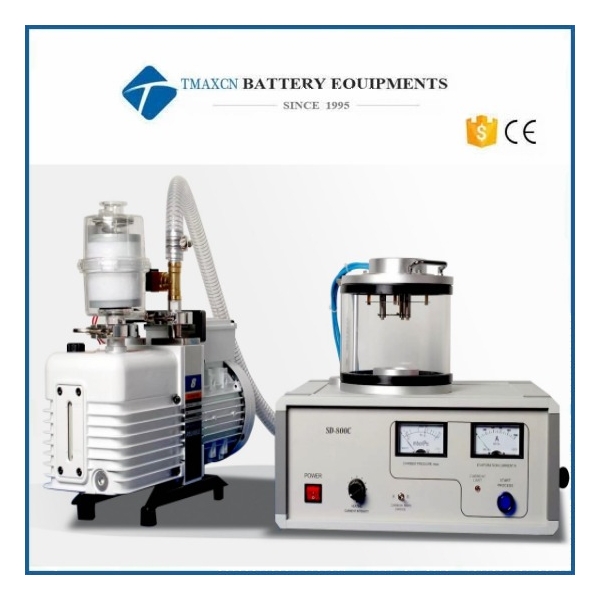

Thermal Evaporation Carbon Coater (SD800C Model) is ideal and designed for lab SEM sample preparation. SD800C Model carbon coater applies a thin conductive carbon film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM.
Working vacuum pressure can be achieved quickly when using proper vacuum pump within 5 minutes. It is user friendly and easy to operate.
Vacuum pump is included.
Parameter
Vacuum pump set |
(Oil required) rotary vacuum pump |
Rotary pumping speed |
50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h 2.6 L/s) |
Vacuum limit |
2Pa |
Max evaporation current |
100A |
Working pressure |
6Pa -4 Pa |
Vacuuming tme |
< 5 Min( 2Pa) |
Vacuum measure |
Measuring range from atmosphere to 2*10-2mbar |
Chamber size |
Φ150*120mm (height) scratch resistant quartz glass |
Evaporation target source |
Target material :carbon rope/target source:carbon rope |
Operation method |
Instruction Manua |
Weight/size |
45kg/340mm length x 390mm wide x 300mm high |
Power supply |
AC 110V 60Hz or AC 220V 50Hz |
Power consumption |
<2000W |
Warranty |
One year limited warranty with lifetime product support |
