Ultraviolet Light UV Climate Resistant Test Chamber
Model Number:
TMAX-UVCAType:
Aging Test ChamberCompliance:
CE CertifiedWarranty:
One year limited with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
-70C 180C 50L Temperature and Humidity Test ChamberNext:
Digital Display Pendulum Charpy Impact Tester for PE, PP, PVC, ABS, PS Materials

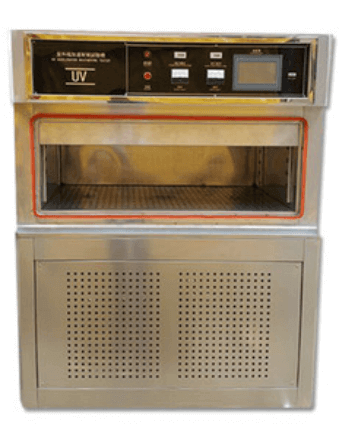

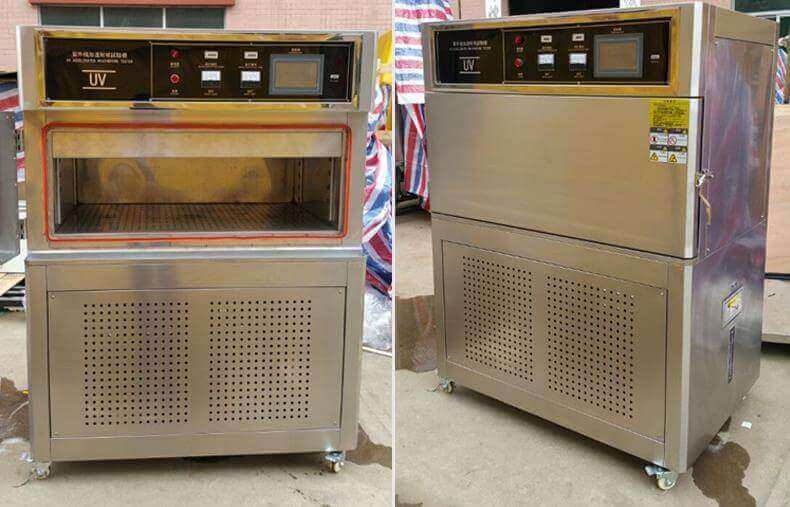

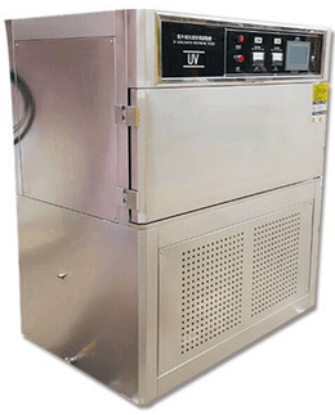

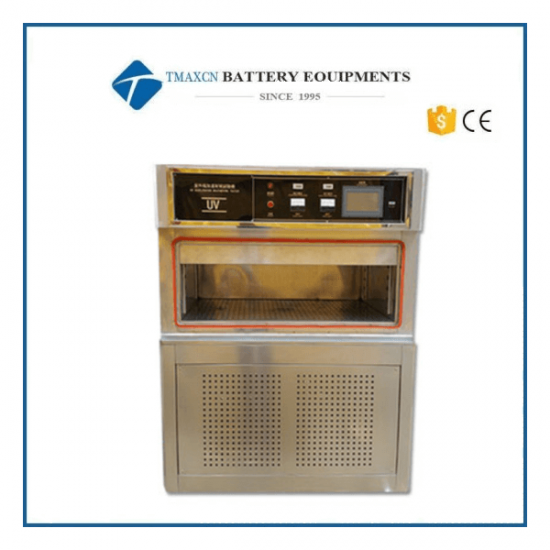

Ultraviolet Light UV Climate Resistant Test Chamber
Overview
This series of UV climate resistant test chamber adopts the fluorescent UV lamp that best analogizes the UV spectrum in sunlight, and combines with temperature control and humidity supply devices to analogize the high temperature, high humidity, condensation, dark rain cycle and other factors of sunlight (UV section) that cause color change, brightness, strength reduction, cracking, peeling, pulverization, oxidation and other damage to materials, and at the same time, through the cooperation between UV and humidity With the same action, the single light resistance or single moisture resistance of the material is weakened or invalid, so it is widely used to evaluate the climate resistance of the material. The equipment has the characteristics of providing the best UV simulation of sunlight, low cost of use and maintenance, easy to use, automatic operation of the equipment with control, high automation of the test cycle, good light stability, high reproducibility of the test results.
Performance
Temperature range |
RT+10℃~70℃ |
Humidity range |
≥90%RH |
Temperature display |
0.1℃ |
Temperature fluctuation |
±1.0℃ |
Lamp start |
Stabilized voltage and current |
Irradiance |
Adjustable within 2.0W/m2 |
Test cycle |
Adjustable test cycle of light, condensation and spray |
Lamp tube |
L=1200/40W，8pcs（UVA） |
Effective irradiation area |
700*1000mm |
UV wavelength |
UVA: 315-400nm |
Irradiation blackboard temperature |
50℃~70℃ |
Standard sample rack |
Stainless steel layer |
Machine parameters
Power supply |
AC220V/110V, 50Hz/60Hz |
Power |
4.5KW, 25 A |
Chamber dimensions |
700mmD*300mmH*1100mmW |
Volume |
230L |
Machine dimensions |
According to the actual model |
Machine material |
304 stainless steel inside and outside |
Shelf |
Stainless steel plate |
Controller |
TEMI intelligent controller |
Irradiation lamp |
UVA-340 8pcs |
Lamp Lifetime |
＞2000h |
Water source |
Tap water or distilled water |
Heating mode |
Tank type heating, fast heating and uniform temperature distribution |
Case cover |
Two way flip type, easy to close |
Activity wheel |
The bottom of the unit is fixed by high quality Pu movable wheel |
Drainage system |
Drainage with U-type sediment device |
Heating system |
1. Using U-type titanium alloy high speed heating electric heating tube 2. Temperature control and illumination completely independent system 3. The output power of temperature control is calculated by microcomputer to achieve high accuracy and high efficiency 4. The heating system has the function of preventing overtemperature: 5. The blackboard temperature adopts the color touch-screen program controller, the output power is calculated by the microcomputer, the PID is self-tuning, and the monitoring adopts the standard PT100 blackboard temperature sensor. 6. The temperature of the water tank is controlled and heated by the color touch screen program Korean temperature controller. The water tank is located at the lower part of the box, with the built-in electric heater. |
Safety protection |
Earth protection Power overload short circuit breaker Overload and short circuit fuse of control circuit |
Controller |
Color touch control TEMI880 Original Korean TEMI touch screen programmable controller With power-off program memory function, continue after power on |
Running time |
0-999 hours and 59 minutes |
temperature control |
PID self-tuning SSR control |
Temperature measuring device |
Imported PT100 platinum resistance temperature and humidity sensor |
Irradiation blackboard temperature |
50℃~70℃ |
Spray function |
YES |
