Transfer Interval Coating Machine for Cylindrical Cell Electrode Making
Model Number:
TMAX-ITMCompliance:
CE CertifiedWarranty:
1 Year Limited Warranty With Lifetime SupportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
18650 21700 4680 32650 AA AAA Cylindrical Cell Semi-automatic Electrode Slitting MachineNext:
Hydraulic Electric Roll to Roll Press Machine for High-precision Rolling of Battery Electrode

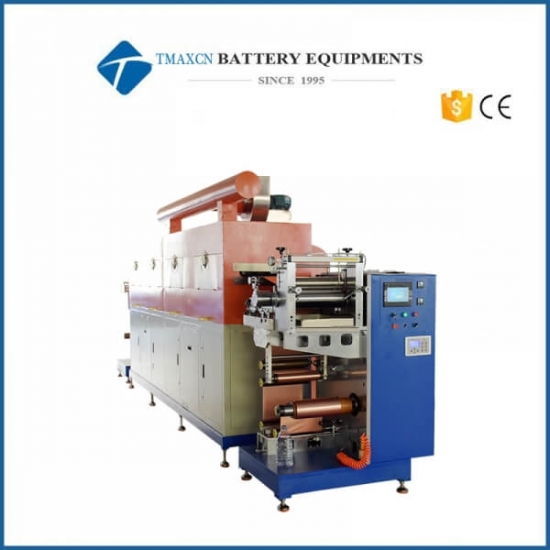

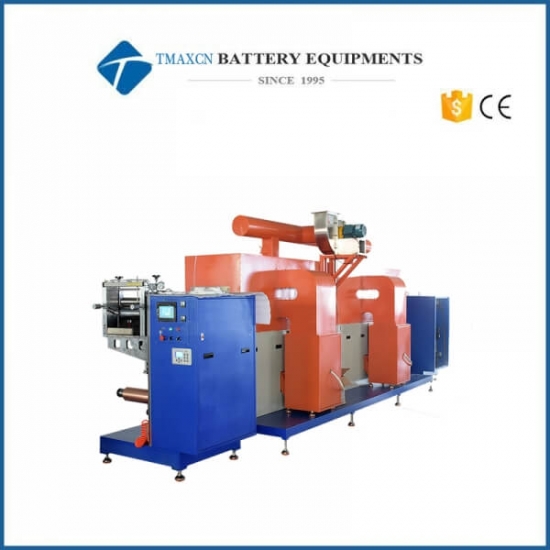

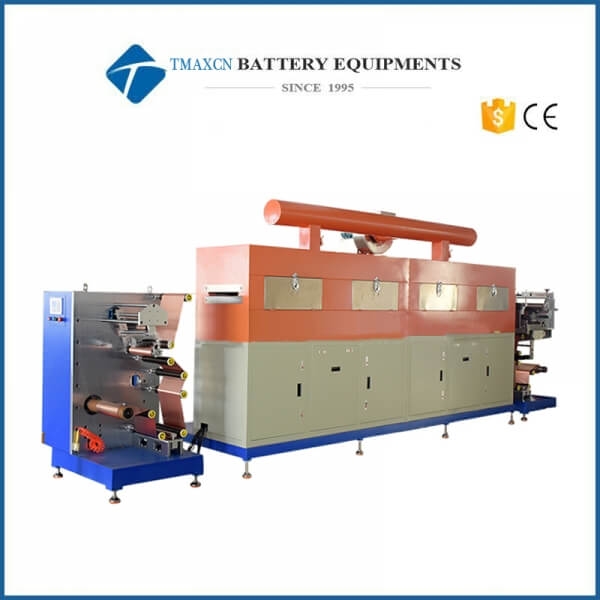

Transfer Interval Coating Machine for Cylindrical Cell Electrode Making
Transfer interval coating machine,the coating thickness is easy to adjust,more accuracy,easy to operate.it can do both continuous coating and interval coating.
Specifications
Model |
TMAX-ITM |
Power |
3PH 380V,50HZ, |
Suitable system |
LiFePO, lithium cobalt oxide,Lithium manganese oxide system and coating process of battery anode and cathode |
Operating material thickness |
Al foil: 10~30um Cu foil: 7~30um |
The design of the roll surface width |
300mm |
Guaranteed coating width |
50~280mm |
Mechanical running speed of equipment |
7m/min |
Coating speed |
1-7m/min(Depending on the drying condition) |
Suitable for slurry viscosity |
2000~16000 Cps |
Single coating thickness range |
50-150μm |
Minimum interval length |
5mm |
Multi section minimum coating length |
20mm |
Solvent properties |
Oiliness solvent NMP(s.g=1.033,b.p=204℃) |
Water solvent H2O/NMP(s.g=1.000,b.p=100℃) |
|
Suitable solid content |
Anode S.C. 60%±20% |
Cathode S.C. 60%±20%(PVDF system) S.C. 50%±5%(SBR system) |
|
specific gravity |
Anode 1.5—2.59/cm2 Cathode 1~1.89/cm2 |
Coating method |
Double sides 3 sections, unequal intermittent transfer coating / second sides automatic tracking / continuous transfer coating |
Base material running direction |
Forward coating ,The base material empty foil movement Positive, reverse. |
Control pressure |
0 ~ 50N |
Rectify deviation |
EPC control,stroke 80mm |
Oven length |
12m |
Material quality |
SUS304 stainless steel,Inner tank 1.0mm,outside tank 1.2mm |
Warranty |
One year limited warranty with lifetime support |
