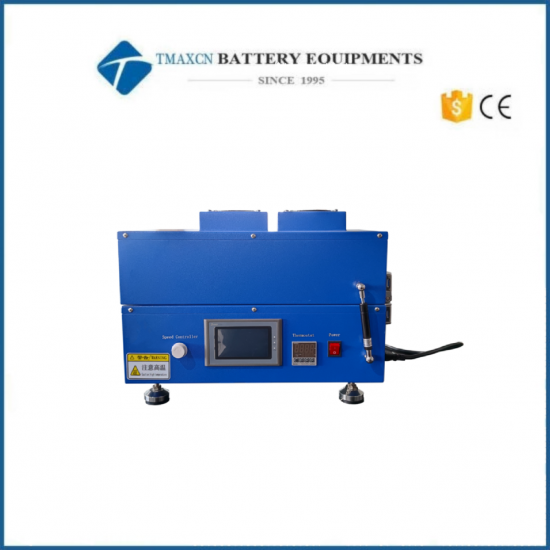

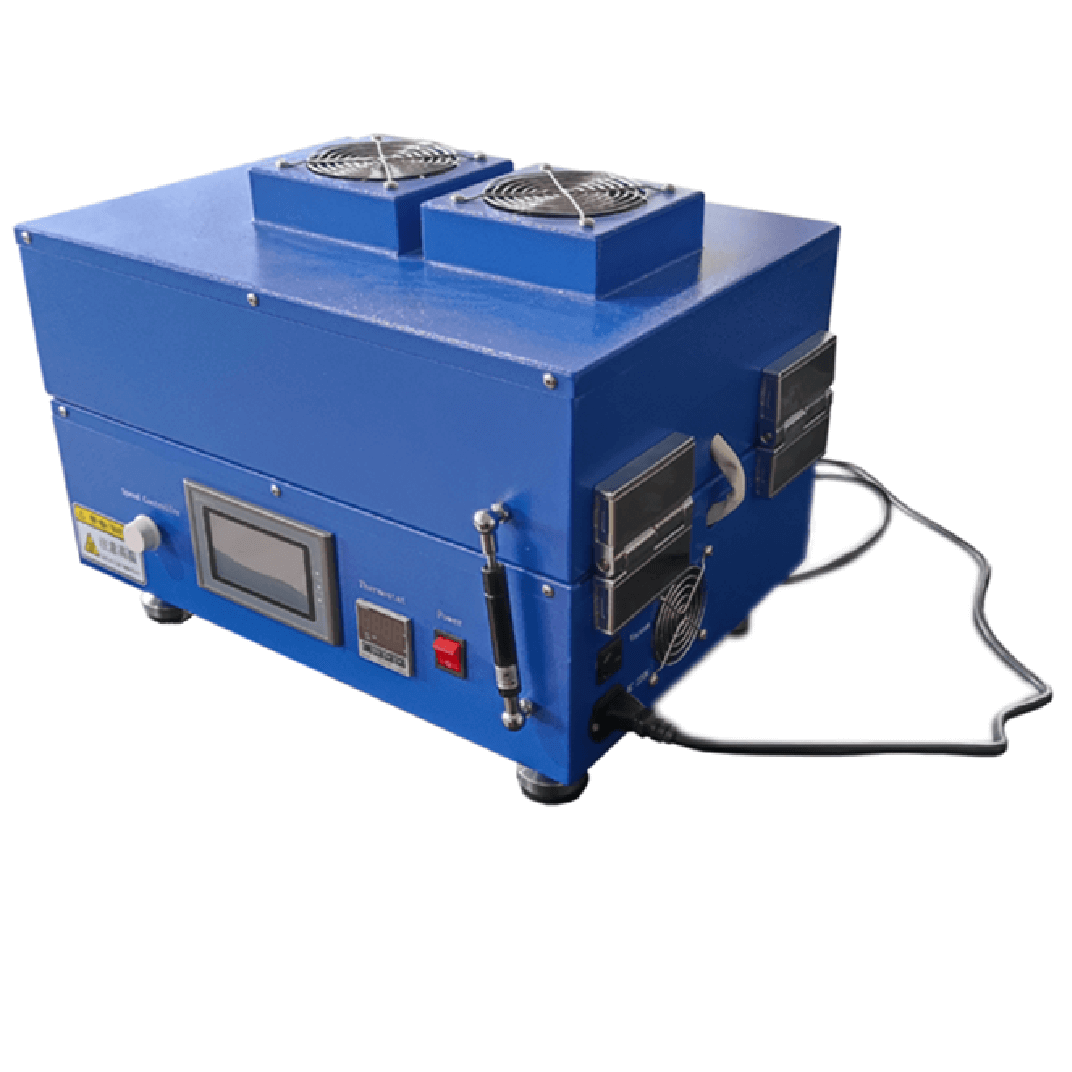

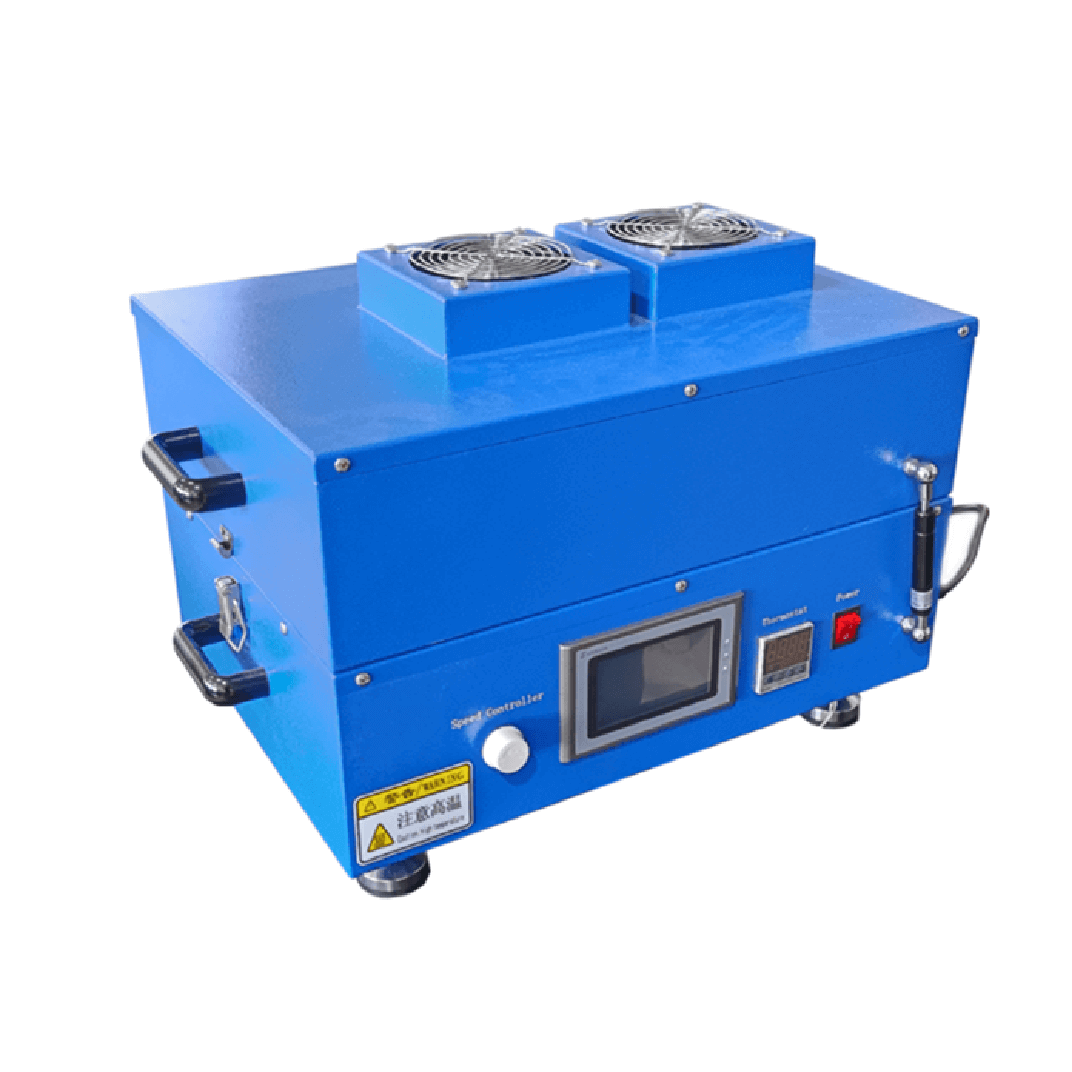

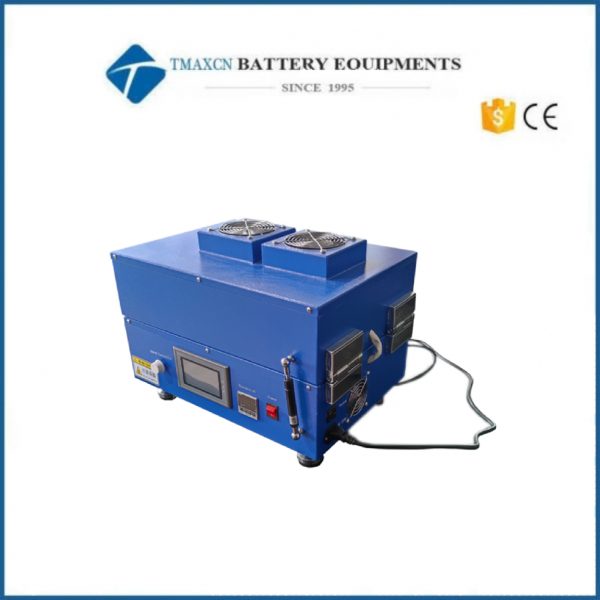

Touch Screen Compact Tape Casting Film Coating Machine with Dryer

Model Number:
TMAX-JK-TMJ-200
Dimension(L*W*H):
550x 330 x 320mm
Net Weight:
60-80kg
Compliance:
CE Certified
Warranty:
One Year limited warranty with lifetime support
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

Touch Screen Compact Tape Casting Film Coating Machine with Dryer, Vacuum Pump & Adjustable Film Applicator

Features:

1. The TMAX-TMH-150 Film coating machine with dryer is used for varies kinds of materials coating.

2. It is supplied with vacuum pump and heating system, having an precision heating temperature upto 200℃.

3. The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.

4. Build-in oil-less vacuum pump make the machine with small volume and less noise.

5. New designed Touch Screen control make the operating more easy and simple

Specification:

Machine model	Automatic film coating machine with dryer TMAX-TMH-150
Source voltage	AC110V-240V, 50/60HZ
Power	650W
Coating speed	0-100mm/s, Step-less transmission Accuracy: 10mm/sec
Advantages	Supply with dry function, vacuum pump
Stroke length	10 - 250 mm adjustable by using Adjustable Position Switch
Platform	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T)
Slicker width	0-150mm
Slicker adjustable range	0.01-3.5mm
Heating dry system	RT-200°C, Digital temperature controller
Temperature control accuracy	±1°C
Dimension	500350320mm
Weight	About 40kg
Package size	790540600mm
Package weight	65kg
Warranty	One Year limited warranty with lifetime support
Remark	1. One oil-less vacuum pump is inset 2. Heating system : Installed on the top cover Built in digital temperature controller with accuracy of +/-1°C. Suspension support helps open cover easily and safely. Max. Heating Rate:10°C/min Max. Heating Temp.:200°C 3. A 100mm width micrometer adjustable film applicator Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed
