Introduction

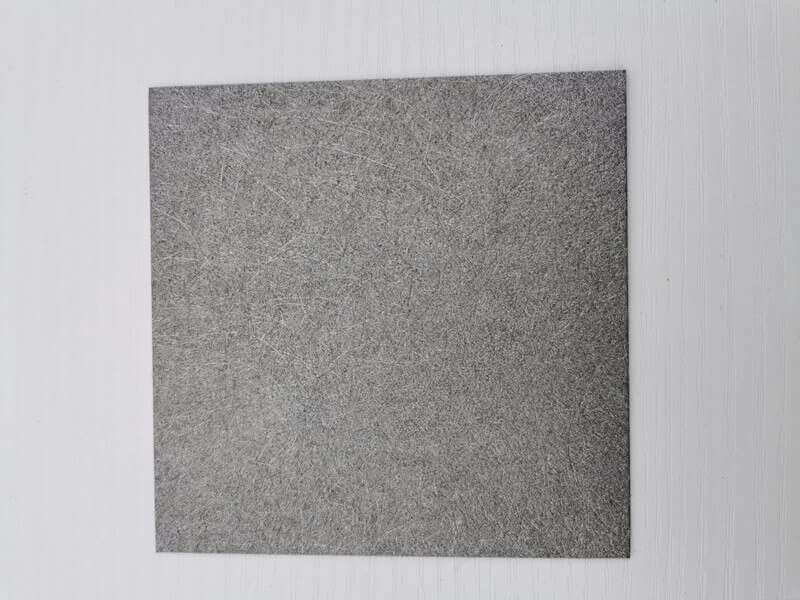

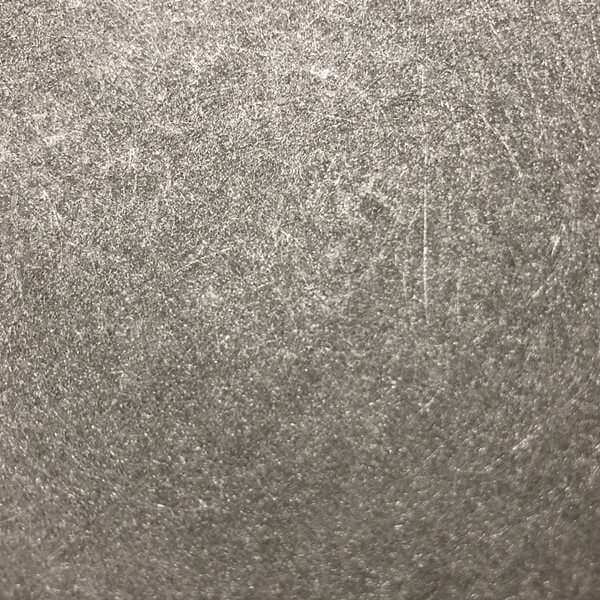

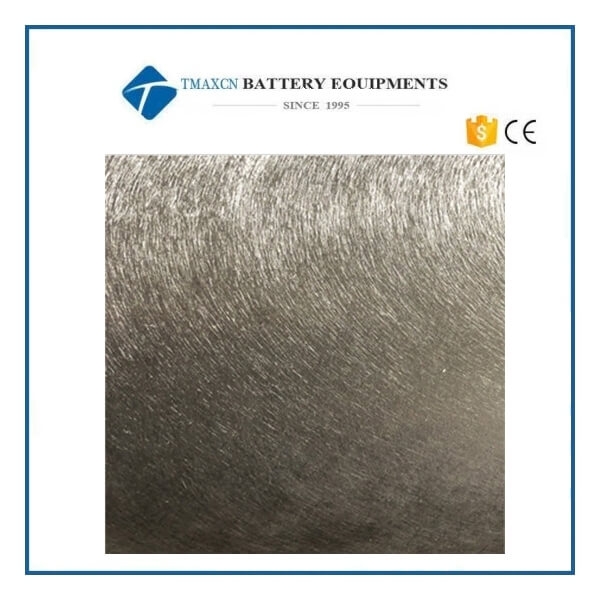

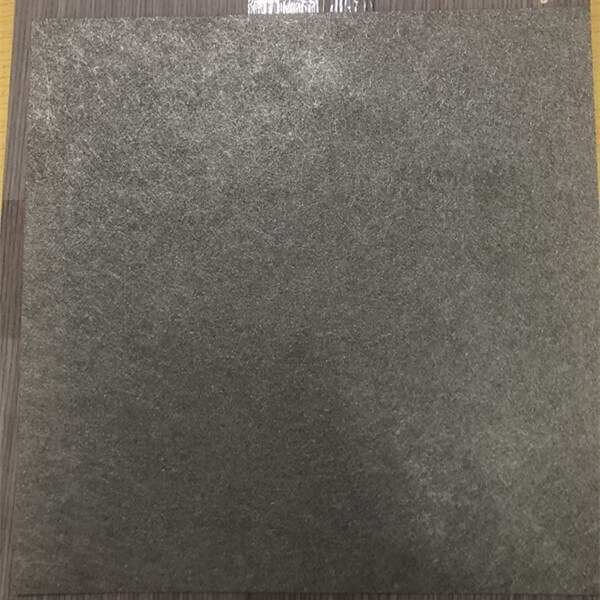

Ti fiber felt is mainly used as a flow field or diffuser material for electrolytic cells and stacks, especially on the oxygen (anode) side. Due to the immediate oxidation of carbon to CO2 (if the medium is acidic) or carbonate ions (if the medium is alkaline) during the electrolysis reaction, the hardware of the electrolysis cell cannot use a carbon based gas diffusion layer (GDL) on the oxygen evolving electrode. Therefore, platinum coated titanium felt is an ideal candidate for diffusion medium and also provides electrical contact between the anode catalyst layer and the bipolar plate or collector component on the anode side. Our platinum plated titanium felt is made of titanium fibers, which are compressed into a flat form and annealed to ensure a smooth and flat surface. It is suitable for electrolytic cells and has undergone our proprietary platinum plating process, greatly extending the service life of the titanium fiber felt.

Main features

Color	Light grey
Dimension	Customized as request
Thickness	0.2mm-2mm Often made thickness (0.25,0.4,0.6,0.8mm)
Porosity	60-70%

Chemical Composition Analysis

Test Methods

C:ASTM E1941-10(2016) Carbon and sulfur analyzer

H:GB/T 4698.15-2011

O,N:ASTM E1409-13 Oxygen and nitrogen analyzer

Others:HB7716.13-2002(ICP-OES)

Dimension (Thickness* Length*Width)

To customize various fiber felt, please click the picture below for details：
