Supercapacitor Semi-automatic Winding Machine for Ultracapacitor
Model Number:
TMAX-YS-CInput Power:
1.4kwDimension(L*W*H):
1800x1400x1500mmCompliance:
CE CertifiedWarranty:
Two Years Limited Warranty With Lifetime SupportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Cylindrical Supercapacitor Grooving MachineNext:
Supercapacitor Sealing Capper for Cylindrical Ultracapacitor
Supercapacitor Semi-automatic Winding Machine for Ultracapacitor

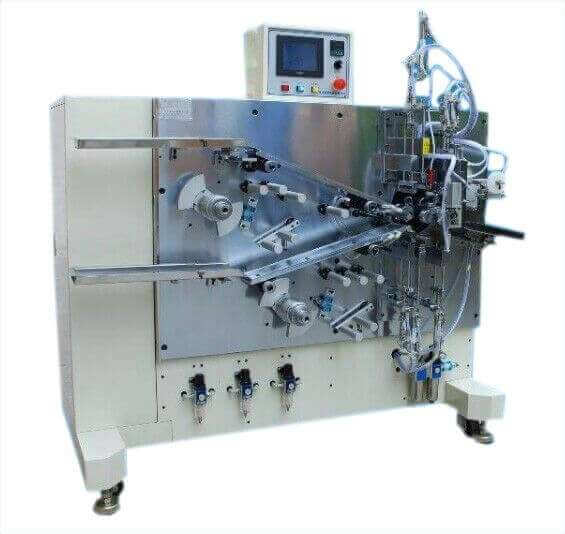

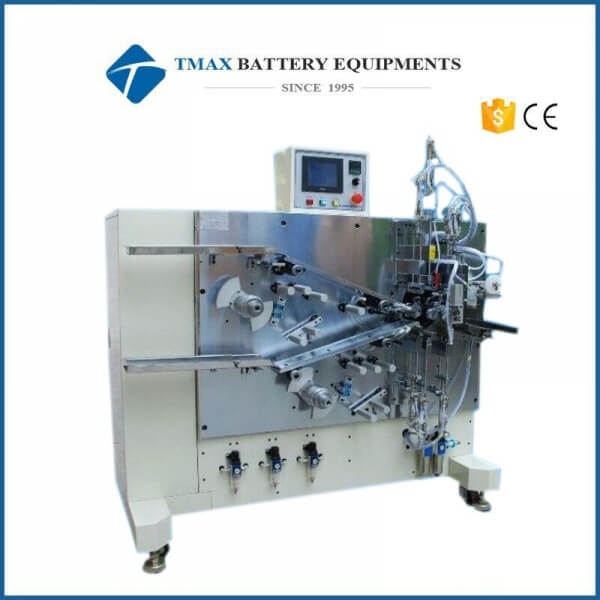

TMAX-YS-C the Semi-automatic winding machine for accurate assembly. The separator film is sandwiched between the cathode and anode materials and then rolled up into a Prismatic core at constant tension force. This is an ideal tool provides the reliability and precision to produce high-quality winding of electrode cores.
Outstanding Features:
· PLC Touch Screen Control
· Unreeling rotors for separator film feeding
· Passive tension control; tension is adjustable
· Automatic finish cut after the completion of jelly roll
winding
SPECIFICATIONS:
Model |
YS-BLY80 |
YS-BFX130 |
YS-BFX180 |
Cathode / Anode Winding |
· Cathode:
Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so
on... · Anode: Copper
foil coated with graphite · Thickness
Range: 0.1-0.2mm · Suggested
Overall Length: <250~2500mm · Maximum Width: 18-80mm |
·
Cathode: Aluminum foil coated with an active
material such as LiFePo4, LiCoO2, and so on... ·
Anode: Copper foil coated with
graphite ·
Thickness Range: 100~300um ·
Suggested Overall
Length: <1500mm ·
Maximum Width: 128mm |
·
Cathode: Aluminum foil coated with an
active material such as LiFePo4, LiCoO2, and so on... ·
Anode: Copper foil coated with
graphite ·
Thickness Range: 100~300um ·
Suggested Overall
Length: <1500mm ·
Maximum Width: 178mm |
Separator Winding |
· PP
or PE · Thickness
Range: < 0.016-0.045mm ·Separator
roll diameter:300mm · Width: 20-80mm |
·
PP or PE ·Thickness Range:<100um · Max. adaptable size: · Thickness: < 10 mm · Width: 60 - 130 mm |
· PP or PE ·Thickness Range:<100um · Max. adaptable size: · Thickness: < 10 mm · Width: 60 - 180 mm |
Winding Blade Width |
30 - 100mm |
30 - 100mm |
30 - 100mm |
Working Voltage |
Single-phase 110-240VAC, 50/60Hz |
||
Max. Power Consumption |
1.5KW |
||
Winding Accuracy |
Edge Evenness: <0.5mm |
||
Tension Control |
<150g adjustable |
||
Winding Speed |
0 - 400 RPM adjustable |
||
Feeder Bed |
1500mm Long |
||
Compressed Air Requirement |
0.7MPa (Please note that an air compressor
is needed for the operation of this machine. Air Compressor is NOT included.) |
||
Warranty |
Two Years Limited Warranty With Lifetime Support |
||
Compliance |
CE certified |
