Supercapacitor Roll Grooving Groover Machine For Ultracapacitor
Model Number:
TMAX-ZGC32Compliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technicalPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Supercapacitor Case Shaping Machine For Cylindrical UltracapacitorNext:
Supercapacitor Manual Hole Punching Machine For Ultracapacitor

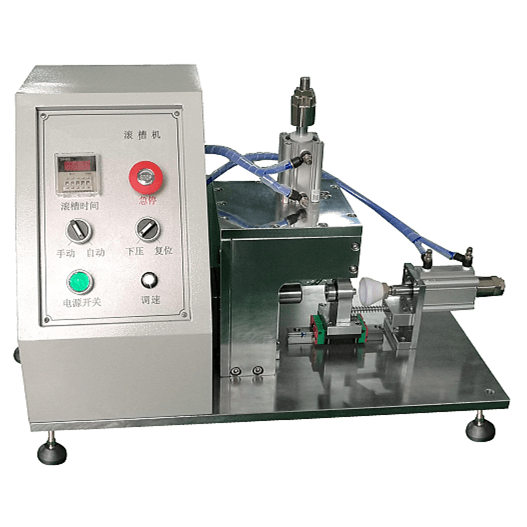

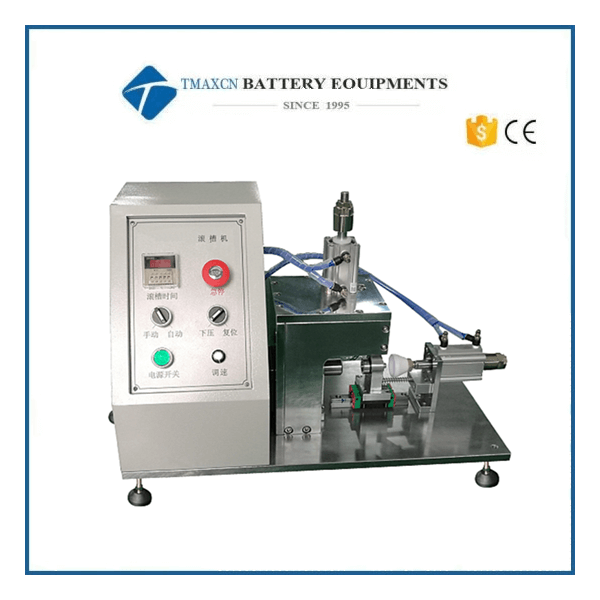

Supercapacitor Roll Grooving Groover Machine For Ultracapacitor
It is used in the channeling process of cylindrical battery that is producted in laboratory and enterprise in small scale.
CE Certificate semi-auto grooving machine for all kinds of cylindercial battery 18650, 26650, CR123A and supercapacitor with changing die.
Functional characteristic:
The channeling molds that are equipped withstandard 18650 cylindrical battery;
It can be used in the channeling process of the steel shells of 26650 and other cylindrical battery by relace molds;
The dimension of the channeling can be adjusted slightly,the size is small,which makes it easy to operate and the appearance is attractive;
The channeling is high precision and the dimension is stable.
SPECIFICATIONS:
Model |
TMAX-ZGC32 Roll Groove Machine |
Power source |
AC200V/50HZ |
Total power |
200W |
Air source |
0.5-0.7Mpa |
Depth of the channeling |
1.2-2.0mm(adjustable) |
Width of the channeling |
1.5mm(The thickness of the hob can be customized) |
Machining accuracy |
±0.1mm |
Hob life |
>One million times |
Capacity |
semi-automatic 400 ea/h |
Channeling molds |
18650,26650,etc. |
Channeling time |
0-99s(adjustable) |
Dimensions |
720(L)*380(W)*480(H)mm |
Weight |
52Kg |
