Supercapacitor Electric Sealing Machine For Ultracapacitor
Model Number:
TMAX-XFK26Compliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technicalPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Supercapacitor Manual Hole Punching Machine For UltracapacitorNext:
Supercapacitor Electric Riveting Press Machine For Ultracapacitor

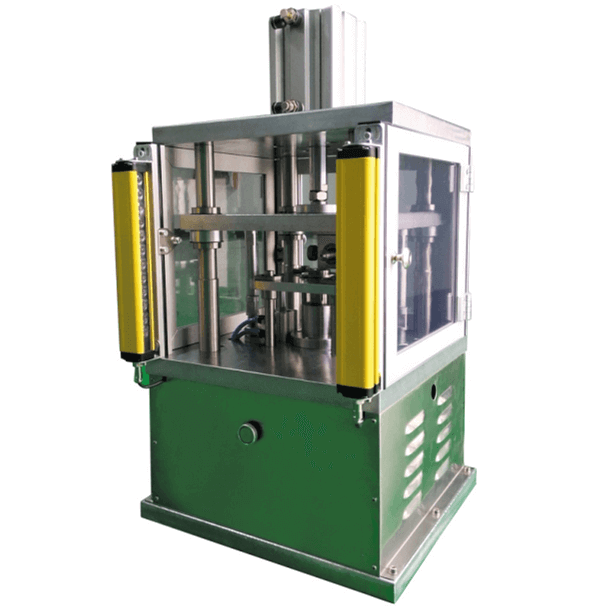

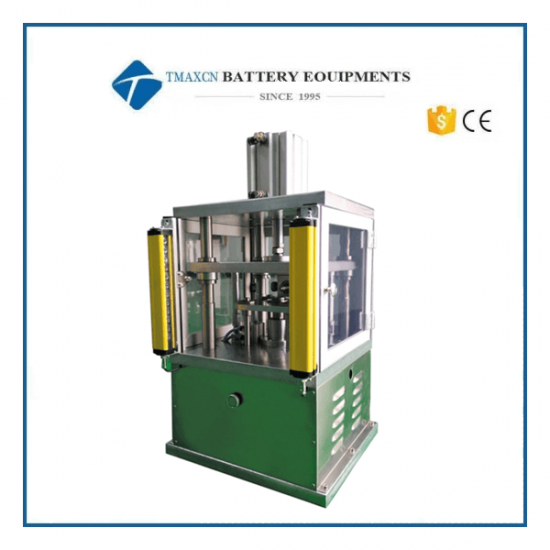

Supercapacitor Electric Sealing Machine For Ultracapacitor
For columnar super capacitor capping of laboratories.
This model suitable for your max super capacitor:D30mm*L50mm
Functional characteristics:
l Motor-driven spinning and capping principle adopted.
l Standardized fixtures used for quick replacement of fixtures
l Reliable capping.high accuracy and uniform size.
l Accuracy servo motor locating
l Standardized capping roller.standard configuration(18650,non-standard aluminum cases are customized)
Technical parameter
Model |
TMAX-XFK26 |
Power source |
AC220v/50hz |
Air source |
0.5-0.7Mpa |
Standard accessories |
Sealing mould for supercapacitor diameter 30mm*length 50mm |
Optional accessories |
18650,26650,32650,50100......standard aluminum shell mould |
Capacity |
5-10ea/min(Depending on manual proficiency ) |
Dimensions |
324*352*600(mm). L*W*H |
Weight |
110kg |
