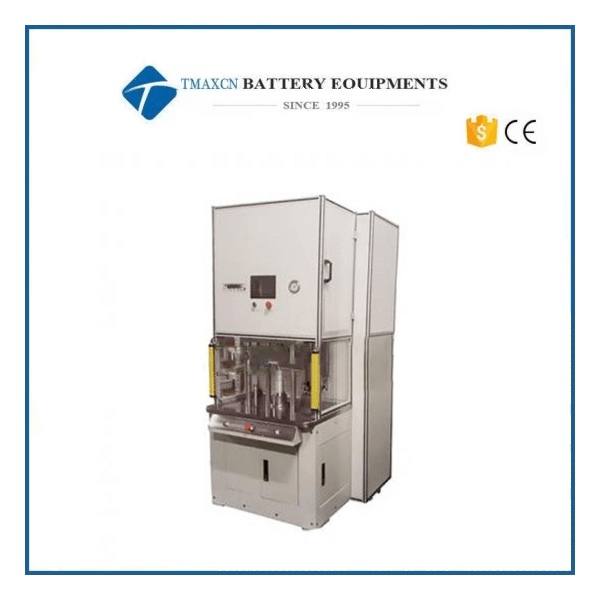

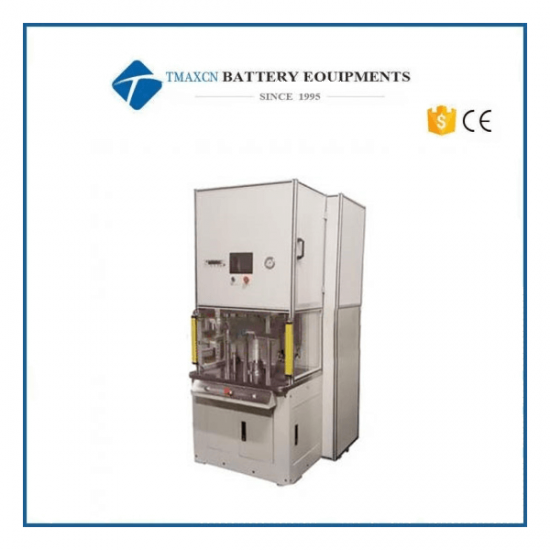

Supercapacitor Case Shaping Machine
Model Number:
TMAX-YZ60-2GZCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technicalPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Supercapacitor Case Channeling MachineNext:
Cell Shaping Machine
Product Details
Supercapacitor Case Shaping Machine
SPECIFICATIONS
Suitable for case shaping of cylindrical supercapacitor.
Functional characteristics
1.PLC control, touch screen operation interface, easy to enter each function.
2.Parameters in the process of production can be recorded in data memory.
3.Provide manual and automatic operation modes.
Technical parameters
Power source |
AC220V/50Hz |
Air source |
0.4~0.7MPa |
Shell specification |
φ60mm x (100~150)mm |
Pressure holding time |
1s~10s |
Nominal pressure |
30kN |
Positioning accuracy(H) |
±0.02mm |
Shaping height error(H) |
±0.05mm |
Overall dimensions (LxWxH) |
1100x1200x2100mm |
