Strapping Tape for Lithium Pouch and Cylinder Battery
Model Number:
TMAX-STCompliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
10mm Width High Temperature KAPTON Tape For Lithium Battery Electrode Fixed And StrappingNext:
Blue PET Protective Film For Prismatic Aluminum Case Battery

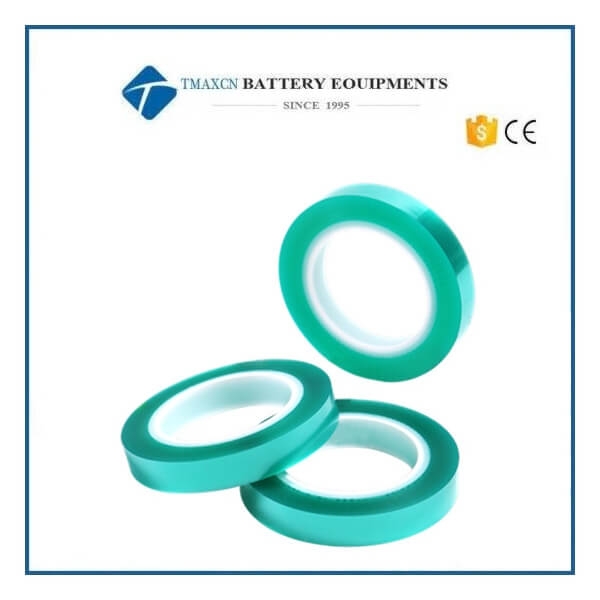

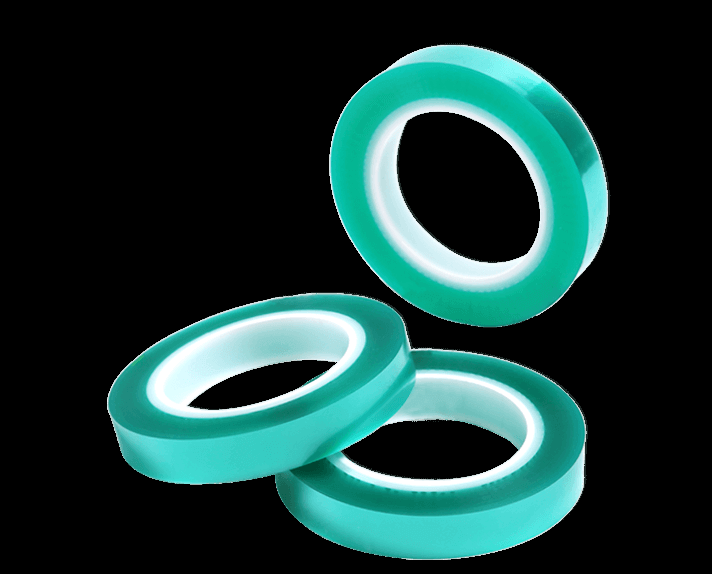

Strapping Tape for Lithium Pouch and Cylinder Battery
SPECIFICATIONS
The Adhesive Tape for the Packing of Lithium Battery is made of PET film backing and single side coated with acrylic adhesive. It’s provided with high performance in electrical insulation and heat-resistance, excellent adhesion and can be easily peeled off without residue. The material is environmental friendly and ROHS complied.
Used on parts of lithium battery and for adhesion, packing, wrapping and holding purposes on battery assembling process.
Item |
TOB-0030PAP |
TOB-0035PAP |
TOB-0050PAP |
TMAX-0055PAP |
Backing |
PET |
PET |
PET |
PET |
Adhesive |
Acrylic |
Acrylic |
Acrylic |
Acrylic |
Total Thickness(mm) |
0.030 |
0.035 |
0.050 |
0.055 |
Color |
Clear/Black |
Clear/Black |
Dark Green/Blue/Yellow/Amber |
Dark Green/Blue/ Yellow/Amber |
Peel Adhesion （N/25mm) |
1.5-2.5 |
2.5-3.5 |
6-8 |
6-8 |
Tensile strength （N/25mm) |
50 |
80 |
85 |
95 |
Breakdown Voltage（KV） |
3.5 |
3.5 |
5 |
5 |
Unwind Force |
Light |
Light |
Medium |
Light |
Standard Width(mm) |
Customized |
|||
Standard Length(Meter) |
100/200 |
|||
