Specifications

Design Fearture

• Easy assembling by only four cap mounting screws
• Easy to separate after test for microstructure analysis

• Space saving, compact design allows you put it into the glove box

Material
(Please select at options bar)

• Nylon or PEEK (Poly Ether Ether Ketone) selectable from product options bar
•

• Body: Electrolyte corrosive-proof Nylon which can sustain with temperature up to 80ºC  and O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

• Body: PEEK (Poly Ether Ether Ketone), which is a semicry stalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings

Appearance

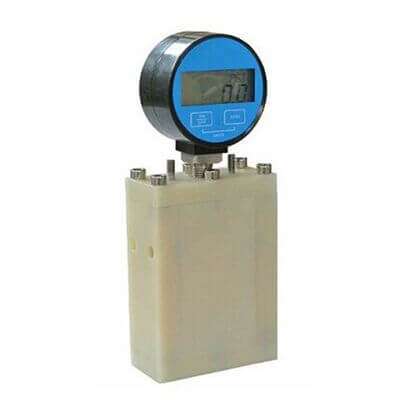

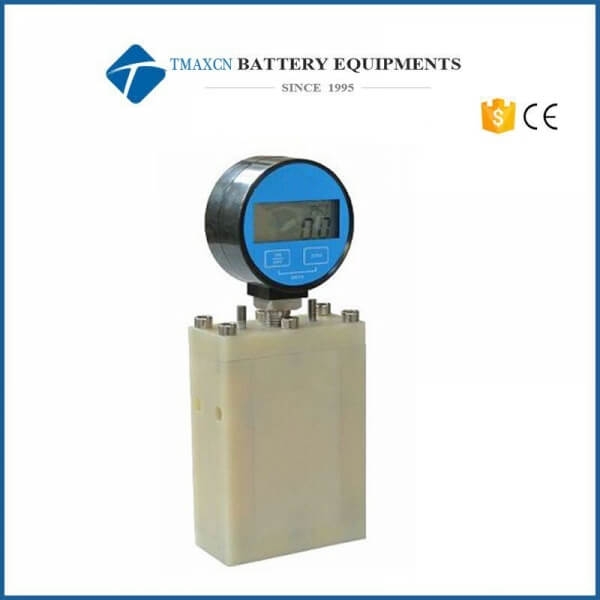

EQ-SPC-654519

EQ-SPC-804019

EQ-SPC-955208

EQ-SPC-30529525

Inside chamber Dimensions
(Customized size pouch cell are available upon request)

• 65 mm H  x  45mm W x19 mm Thick

• 80 mm H  x 40mmW x 19 mm Thick

• 95 mm H  x  52mm W x 8 mm Thick

•  305 mm H  x  295.5 mm W x 25.4 mm Thick

Suggested Max. electrode area

• 60mm H x 40 mm

• 75 mm H x 35 mm

• 80mm H x 50mm

• 300mm H x 395mm

Outside Case Dimensions

• 89 mm H x 75 mm W x 53 mm Thick

• 93 mm H x 85 mm W x  55 mm Thick

• 120mm H x 85 mm W x 40mm Thick

• 317.5 mm H x 323 mm W x 86 mm Thick

Structure

• One digital pressure gauge installed on top to monitor pressure.  You may remove the gauge and use 1/4 female port to inject electrolyte into the pouch cell

• Two stainless steel contacts to connect anode and cathode by the screw.

• Max. working temperature：80°C.for Nylon, and 120oC for PEEK

• Max.working Presssure：36psi (0.25MPa) for Nylon and 60psi (0.4Mpa) for PEEK
