Suitable for a variety of halides, sulfides, and other all-solid or semi-solid state conditions for charge and discharge testing under pressure.

Product Features

1. Unique thread/O-ring compression design for excellent sealing performance.

2. External metal support made of stainless steel ensures consistent pressure during testing.

3. Compact mold, easy to assemble. Convenient for assembly and high-throughput testing in glove boxes. Tests can be conducted outside the glove box after assembly.

4. Separate leads for positive and negative electrodes to prevent short circuits during testing.

5. Easy to operate, compact, easy to assemble and disassemble, and reusable.

6. Pressure resistance up to: 500MPa or above (1000MPa optional).

7. Appearance: Diameter 69mm, Height 115mm; Electrode diameter 10mm (JYGS1-10) (other sizes customizable).

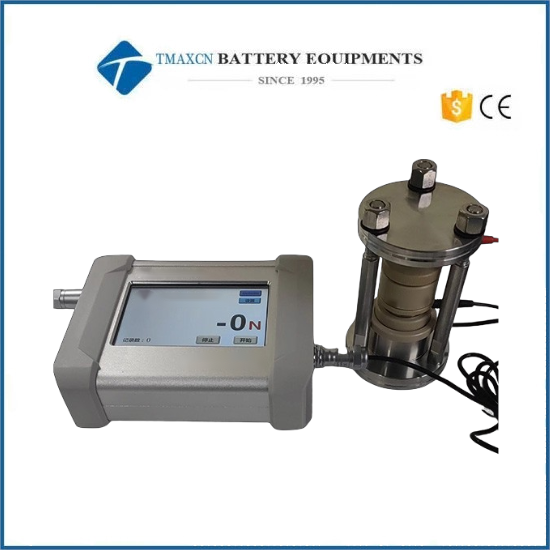

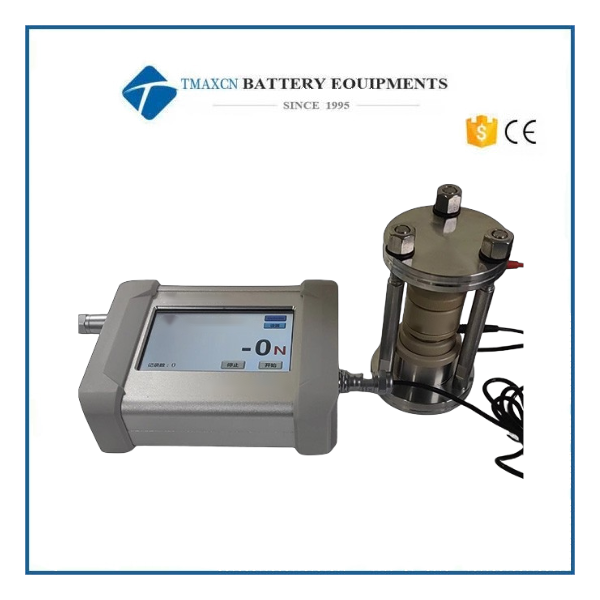

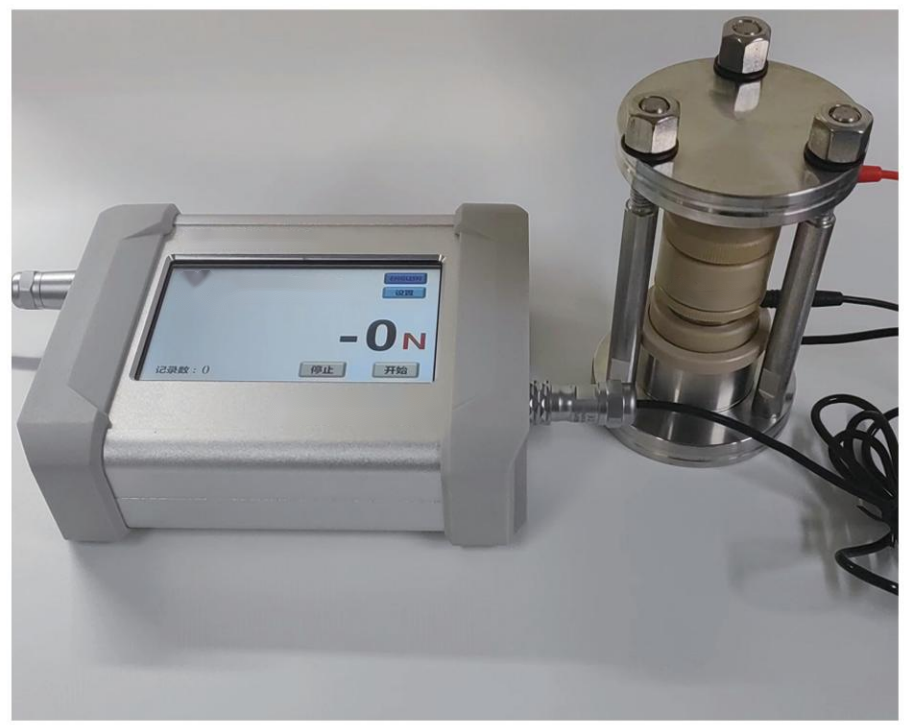

Solid-State Battery Online Pressure Monitoring System (JYGS1-10)
