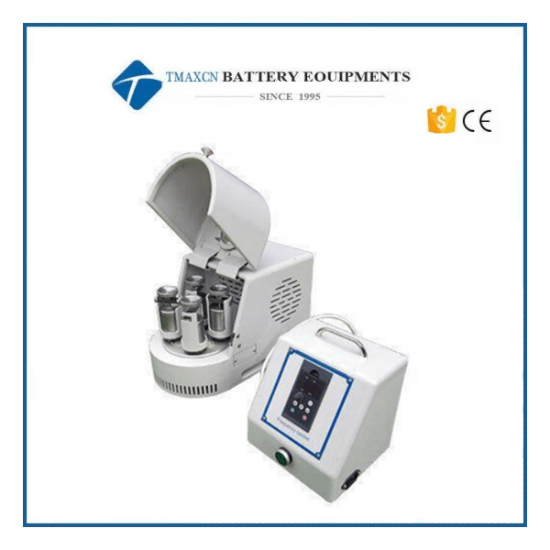

Small Size 0.2 L Planetary Ball Mill Suitable for Glove Box

Small Size 0.2 L Planetary Ball Mill Suitable for Glove Box

Applications:

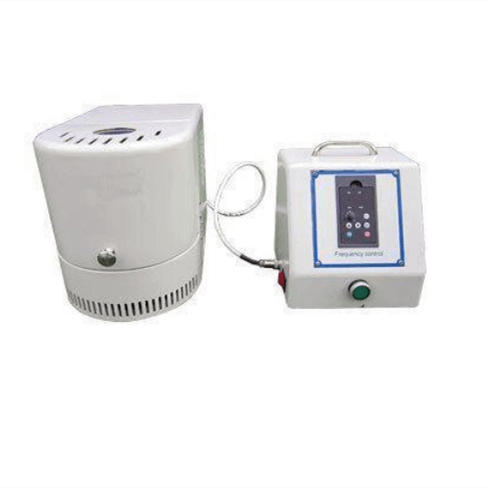

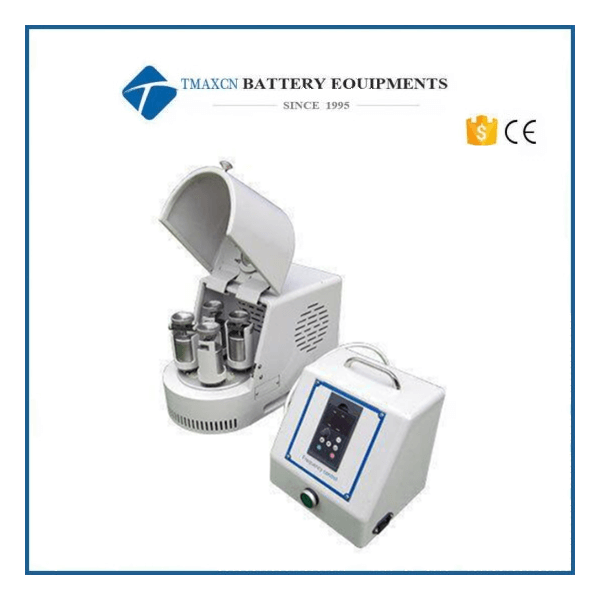

XQM-0.2 is a kind of supper mini model of vertical planetary ball mill

which is specially designed to be used for grinding materials under vacuum or inert

gas atmosphere conditions inside the glove box. It is widely used in many fields of

geology, mine, metallurgy, electric industry, construction, ceramics, chemicals,

light industry, medicine, environmental protection etc.

Overview
Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D centers, universities, enterprises laboratory to get samples (each experiment can get four samples at the same time). It can be put into the glove box and grind any materials which have to be operated under the vacuum state or inert gas atmosphere inside the glove box.

Working Principle

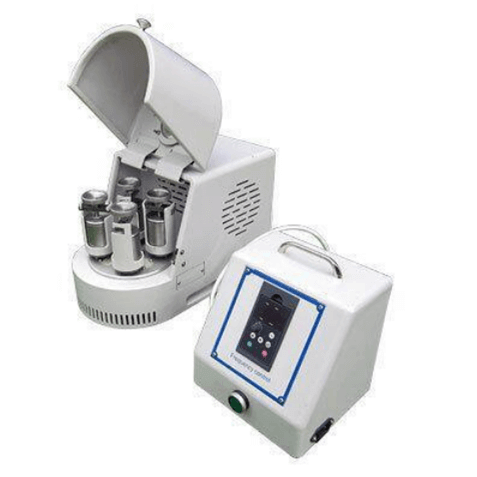

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1µm.

Features
1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may set ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may select any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of XQM-2S: small volume, more functions,low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

Technical Features

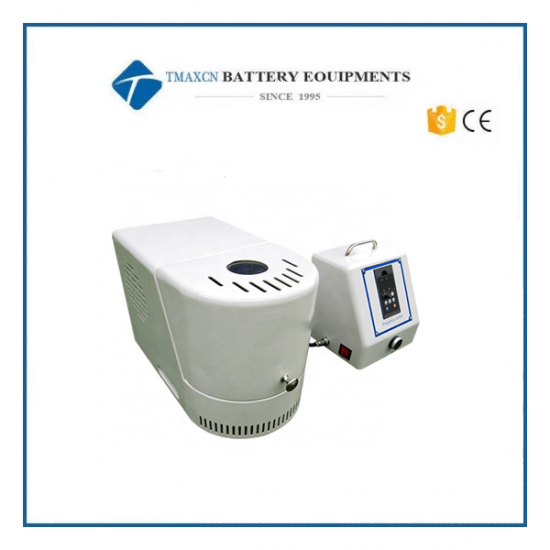

Mini Ball MIll Suitable for Glove Box Use

Grinding Sample:

 Description:

(1) Application field: pigment;

(2) Material / raw material: cinnabar;

(3) Feed particle size: 100 μ m;

(4) Feed volume: 100g;

(5) Customer requirements: 20 μ m;

Machine:XQM-0.2 Planetary Ball Mill

Setting Parameters:

1.Rotation :500 rpm, 30 minute later positive and negative rotation alternately running;

2. Grinding time: 2 hours;

3.Grinding result: 100%＜20μ;

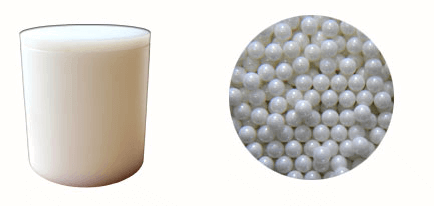

Mixing Jar and Ball:Nylon Jar+Zirconia Ball

Grinding Sample:

 Description:

(1) Application: Herbal medicine;

(2) Materials / raw materials: Herbal medicine (liquorice, astragalus, etc.)

(3) Feeding capacity:100g;

 (4) Material properties: drying;

 (5) Customer requirements: after grinding, the powder is basically soluble in water and can be used as a powder;

(6) Subsequent analysis: water solubility test;

(7) Feed particle size: 1-5mm

Machine:XQM-0.2 Planetary Ball Mill

Setting Parameters:

1. Rotation 500 rpm, 30 minutes later, positive and reverse rotation operation alternately

2. Grinding time: 1 hour

3. Grinding result: soluble in water

4. Caution: Dry thoroughly before grinding

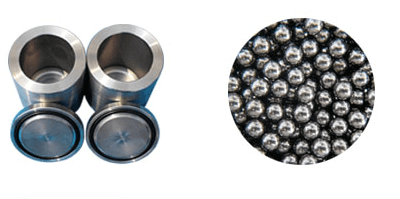

Mixing Jar and Ball: Stainless Steel Jar+Stainless Steel Ball

We can provide different capacity of planetary ball mill according to your requirement.

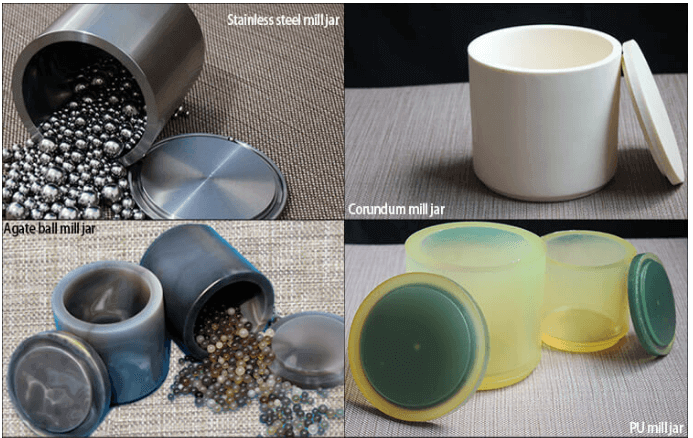

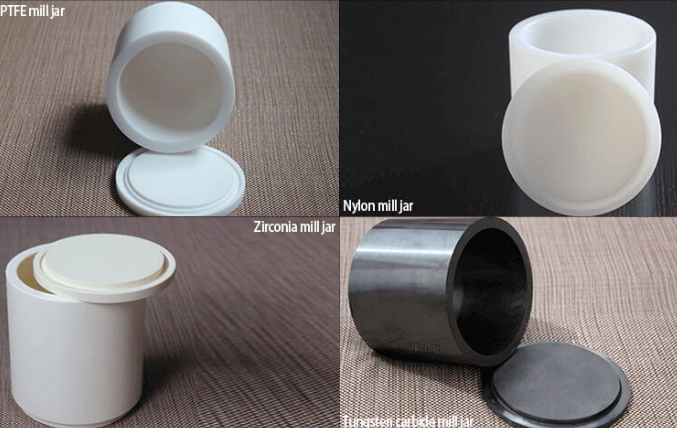

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

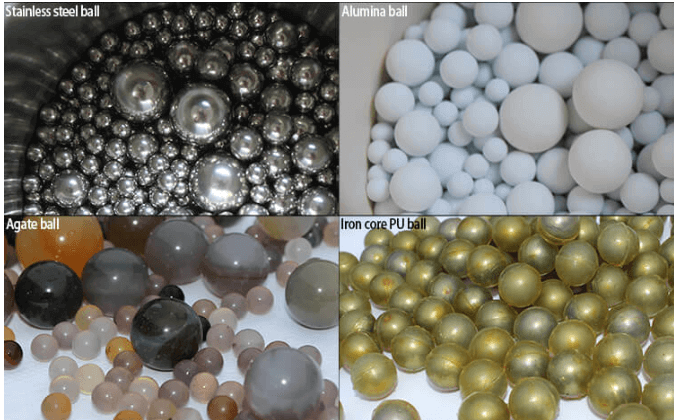

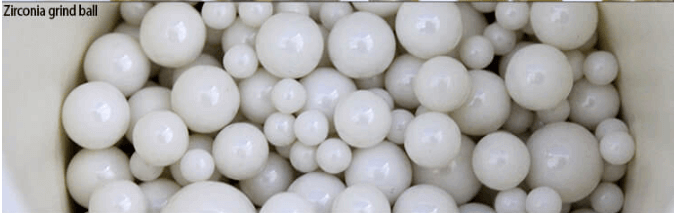

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
