Roll to Roll Coating Machine

Small Roll to Roll Battery Electrode Continuous Coating Machine

  • Model Number:

    TMAX-TMJ-180C

  • Dimension(L*W*H):

    800* 350 * 580 mm

  • Net Weight:

    About 50kg

  • Compliance:

    CE Certified

  • Warranty:

    One Year limited warranty with lifetime support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

Small Roll to Roll Battery Electrode Continuous Coating Machine


The TMAX-TMJ-180C desktop continuous coating machine is a small roll to roll coating machine （Roll to Roll Coater）for lab research, it is assembled by high high precision coating device, suitable for institutions, university and factory pilot scale battery research work.


Model

Roll to Roll Continuous Coating  Machine  TMAX-TMJ-180C

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

400W

Warranty

One Year limited warranty with lifetime support

Suitable material thickness

Aluminum foil : 0.01-0.03mm

Copper foil : 0.006-0.020mm

Max electrode width

50-180mm

Coating speed

0-2m/min, adjustable

Max baking temperature

100℃ ,PID control mode

Coating thickness

0.01mm-2mm

Coating thickness accuracy

0.01mm

Dimension

800* 350 * 580 mm

Weight

About 50kg
film coater
pouch cell assembly machine



roll to roll continuous coater

roll to roll continuous coater

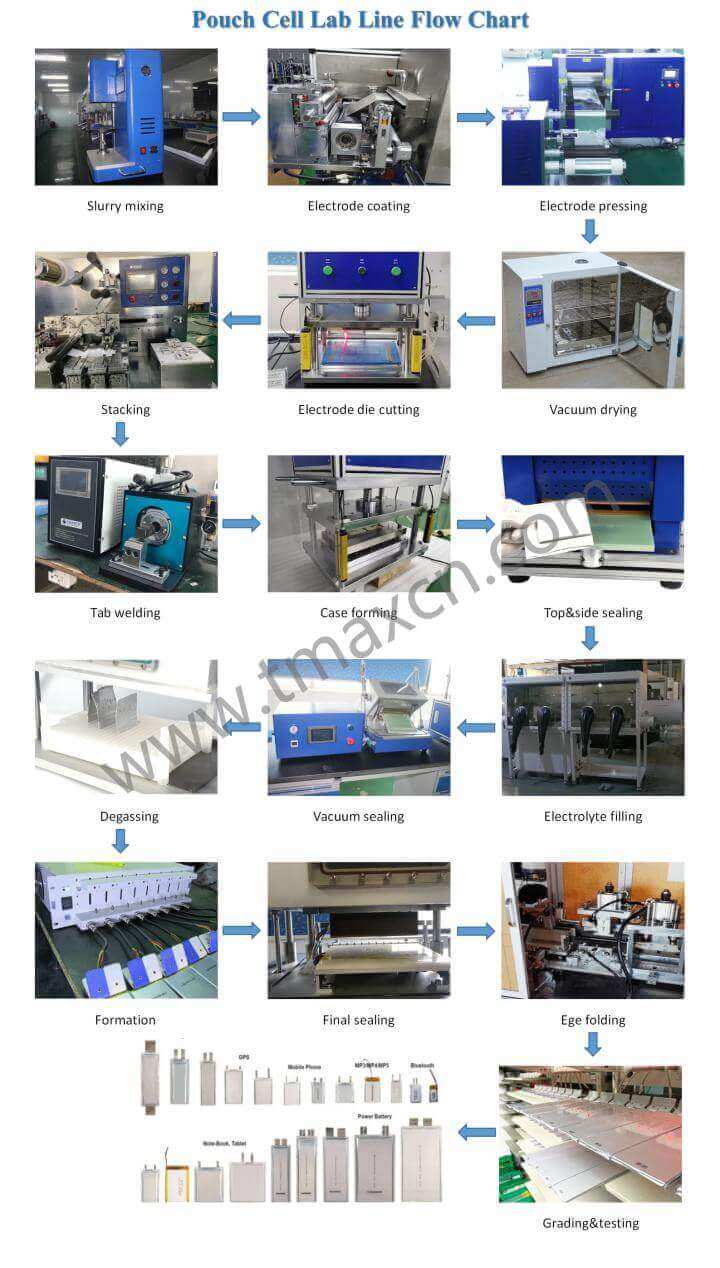

 Pouch Cell Preparation
