products

Small Heat Roll Press Machine

Model Number:
TMAX-YXY-C3385
Dimension(L*W*H):
1350 * 700 * 1500mm
Net Weight:
220KG
Compliance:
CE Certified
Warranty:
1 year
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

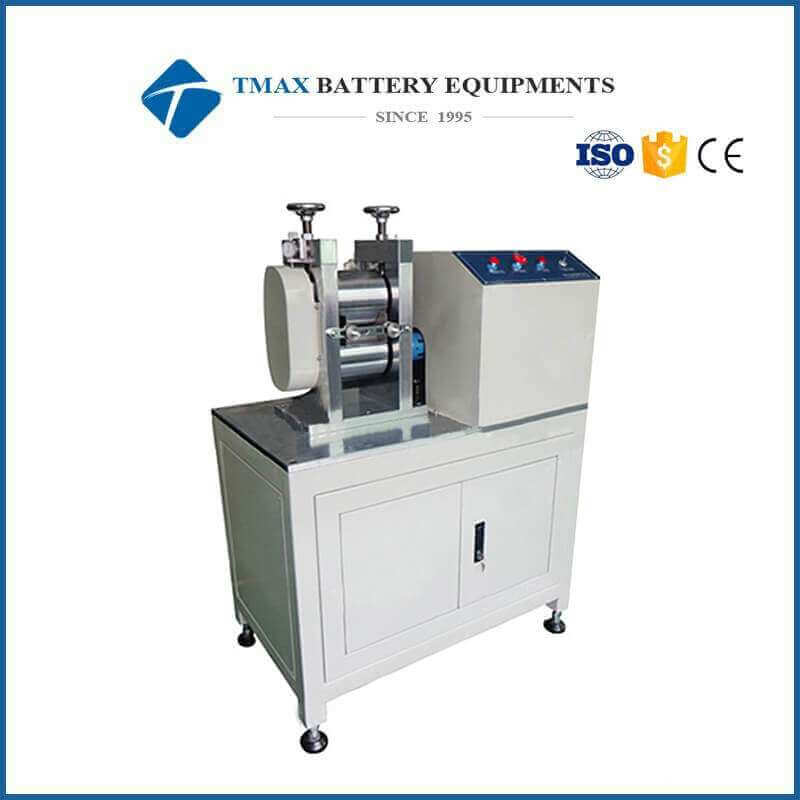

Small Heat Roll Press Machine

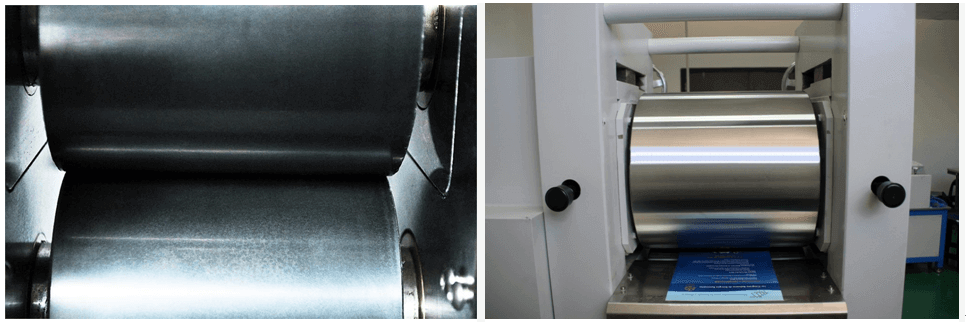

This product through mechanical transmission, using two vertical pair of rollers way, carried on the roll pressing,

tablet thickness can be adjusted, the roller speed is adjustable, adapted to lithium batteries, nickel hydrogen

batteries,capacitors pole piece repression,the roller surface hard chrome plated, the product compact structure, smooth rolling, easy to operate.

SPECIFICATIONS:

Power Supply	AC 380 / 50Hz ,3KW
Rotational speed	4 ~ 9r / min (adjustable)
Roll working face width	160mm, roller diameter φ150mm (Customized according to customer requirements)
The roll gap	0 ~ 2mm (adjustable)
The pressure roller surface roughness	0.8um, precision:± 0.005mm
Dimensions (L * W * H)	1350 * 700 * 1500mm
Machine weight	220KG
