 Cutting Machine

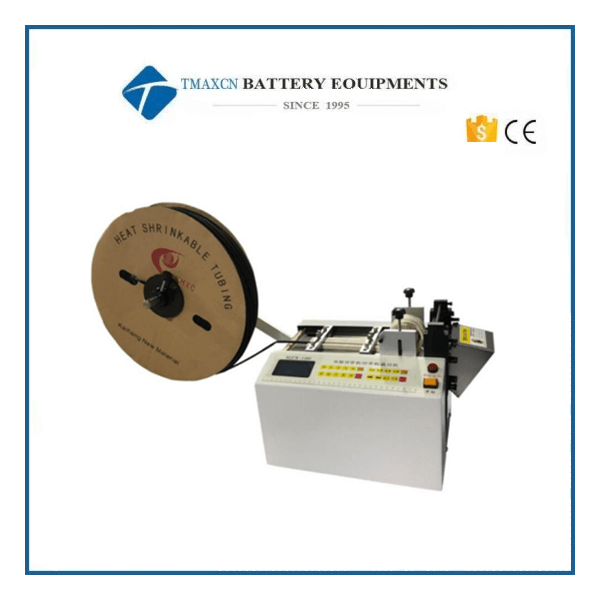

Silica Gel Fiberglass Pipe Tube Silicone Tube Rubber Pipe PVC Hose Cutting Machine

  • Model Number:

    TMAX-HZX-100
  • Type:

    Automatic
  • Input Power:

    0.75KW
  • Dimension(L*W*H):

    L400*W350*H390mm
  • Net Weight:

    32 kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty and lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Silica Gel Fiberglass Pipe Tube Silicone Tube Rubber Pipe PVC Hose Cutting Machine



Features

The machine adopts upper and lower cutting tools, the equipment uses 220V voltage, the power is 0.3kw, the cutting width is 1-95mm, the cutting length of the cutting machine is 1-9999.9, and the precision is as high as 0.1mm.

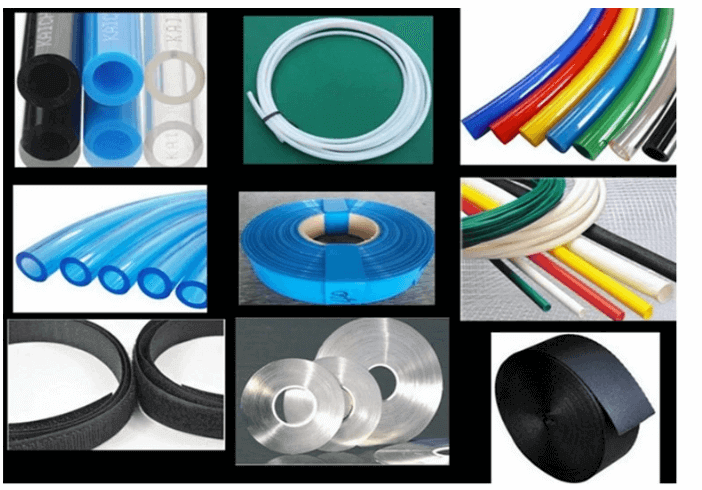

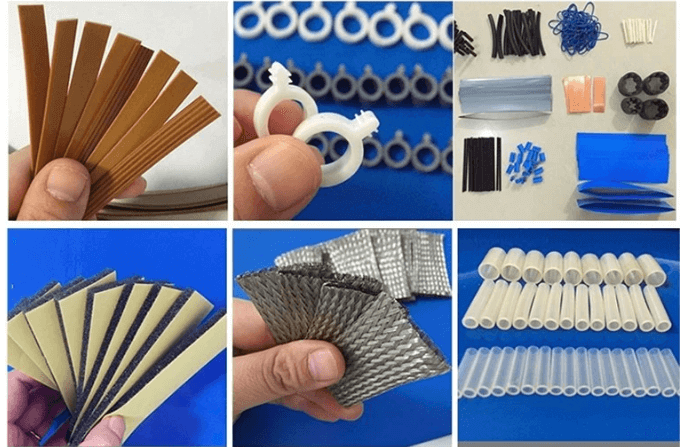

Cutting material: heat shrinkable pipe, fiberglass pipe, Teflon pipe, yellow wax pipe, Velcro, nickel belt, etc.

(Heat shrinkable pipe cutting machine, fiberglass pipe cutting machine, Teflon pipe cutting machine, yellow wax pipe cutting machine, Velcro cutting machine, nickel belt cutting machine, computer cutting machine, full-automatic cutting machine, etc.) small body, does not occupy space and can improve output.



Advantages

1. High quality imported blade

2. Cutter speed adjustable

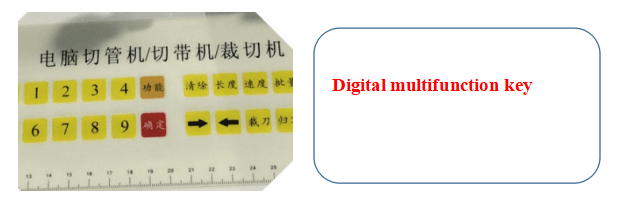

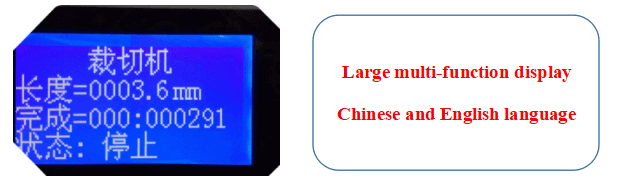

3. LCD large screen display in Chinese and English

4. Total amount can be accumulated automatically

5. Time can be set in batch

6. Accuracy: 0.1mm

7. The machine will stop automatically in case of material shortage, and no one is required to watch.


Specifications

Model

TMAX-HZX-100

Power Supply

220V

Cutting Length

0.1mm-9999.9mm

Cutting Width

0-100m

Weight

32kg

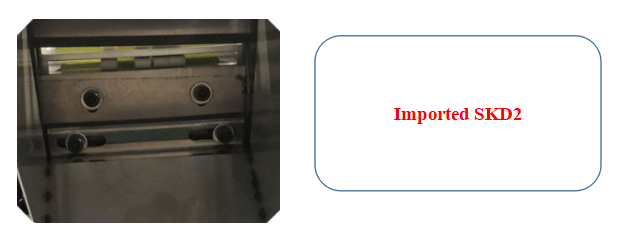

Blade Material

Imported SKD2

Feeding Speed

Adjustable

Size

L400*W350*H390mm

Power

750W

Motor

Feeding:86 Stepping Motor

Blade: AC Motor

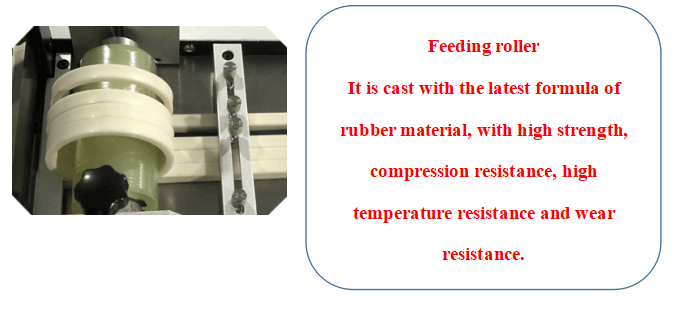

Feeding Rolling Wheel

Superior adhesive


(Cutting width:100-1600mm optional according to customers requirement



Application








Details
