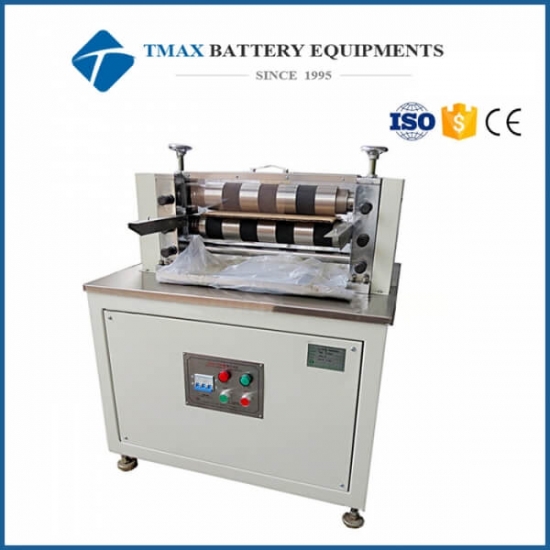

Semi-automatic Slitting Machine With Different Model Cutter Blade
Model Number:
TMAX-DYG-110AInput Power:
800WDimension(L*W*H):
610*610*1100mmNet Weight:
200kgCompliance:
CE CertifiedWarranty:
One year limited warranty and lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Single Head Electrolyte Filling Pump System Used For SupercapacitorNext:
1500w Bench-top Ultrasonic Spot Welding Machine

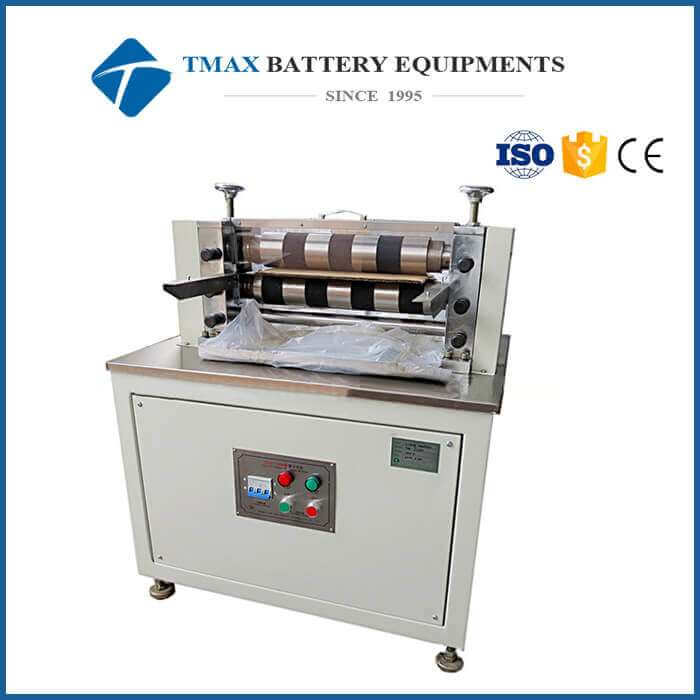

Semi-automatic Slitting Machine With Different Model Cutter Blade
1 TMAX-DYG-110A model Battery electrode slitting machine is
a semi-automatic slitting machine for preparing electrode of
cylinder batteries and prismatic batteries in R&D laboratories and
production line.

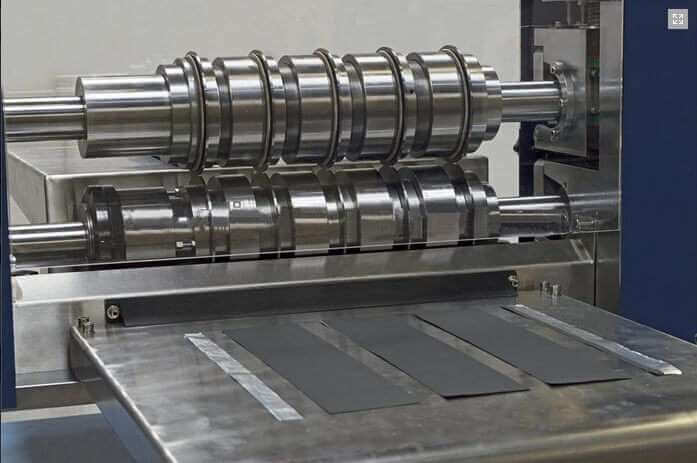

2 The slitting
machine can slit electrode with
width up to 400mm, and with finished slitting width from 20mm to 400mm with
different model cutter blade.
3 This equipment is suitable for rechargeable lithium
batteries cathode
and anode electrode of the longitudinal cutting, the electrode of the base
material can be aluminum foil and copper foil, sliced edge tidy, high
dimensional accuracy, no burr, it is an important equipment in plate processing.
SPECIFICATIONS:
Model |
Battery Electrode Slitting Machine TMAX-DYG-110A |
Source voltage |
AC 110V-220V, Customized, 50HZ |
Power |
800W |
Warranty |
One year limited warranty and lifetime support |
Slitting mode |
Single knife hobbing |

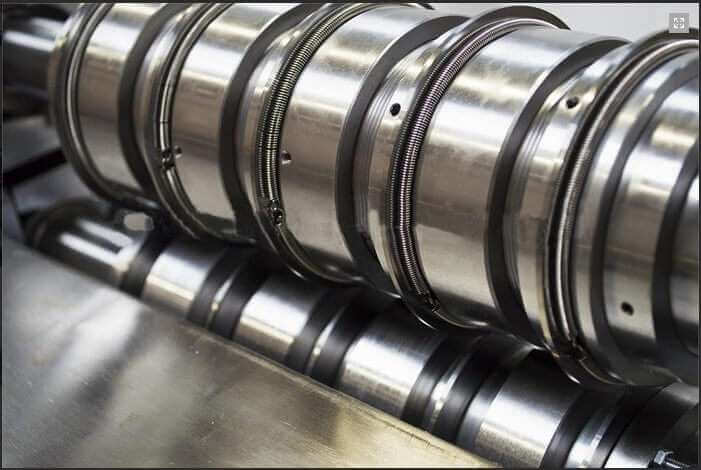

Knife type |
Upper and lower round knife |
Slitting width |
20-500mm |
Slitting thickness |
100-300um |
Hob diameter |
Φ80 mm |
Slitting speed |
10m/min, Adjustable |
