Punch Forming Machine

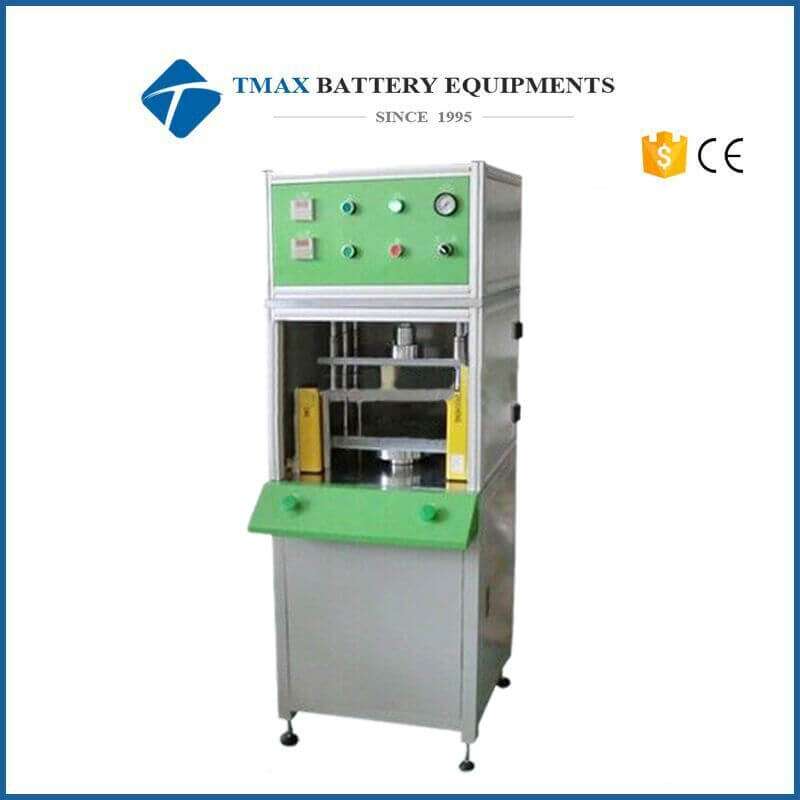

Semi-automatic Aluminum Laminating Film Cup Punch Forming Machine

  • Model Number:

    TMAX-Form150
  • Dimension(L*W*H):

    400*350mm
  • Net Weight:

    600KG
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • Delivery Time:

    5 days
Product Details


Battery making Semi-auto Forming Machine for Aluminum Laminated Film Cup



Specification

1.       Power supply: AC220V 50HZ; Power:100W

2.       Compressed air: ≥0.6MPa

3.       Vacuum: ≥15 L/S

4.       RH: 20~90%RH

5.       Ambient temperature: 10~40°C

6.       products size: working table 400*350

7.       suitable thickness of the al-laminated film:0.11-0.3MM

8.       parallel degree of the mold under plane and bottom board:less than 0.02MM

9.       flatness of the upper and down mold:less than 0.02MM

10.     punching depth: 0-9MM

11.     production capacity: 350EA/H(according to the cell size)

12.     percent of pass: ≥98%

13.     Weight: 600KG

14.     Dimension:L*W*H≈850*800*1700MM

15.     Man pressure:10T
