Model

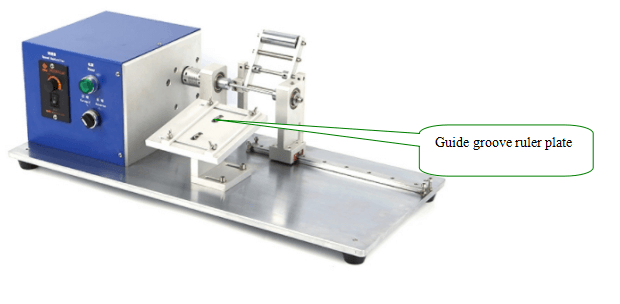

Semi-Automatic Winding Machine TMAX-JR135

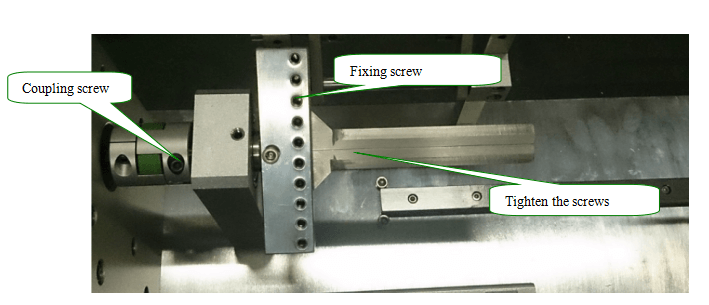

Winding Shaft

· Dimensions: 4mm(OD) x 90mm(L) for 18650, 26650, 32650, 21700 cylinder battery jelly roll

· Material： 45# steel with Cr plated ( all shinning parts ) for anti-crossion.

Working Voltage

AC110V/220V, 50/60HZ

Power

1000W

Warranty

Two Year limited warranty with lifetime support

Winding Speed

0 - 170 RPM Adjustable

Suitable battery height

10-150mm customized

Winding Mode

Switchable between clockwise and counterclockwise

Output

70-100EA/h, according to battery size and maunal

Product Dimensions

(L*W*H)

1000*380*250mm

Net weight

About 30kg

Application Notes

This machine can be used for cylinder battery with round winding

 shaft,

and you can also choose the square winding shaft for pouch cell core winding,

We will supply with the suitable winding accessories according to

your battery model.

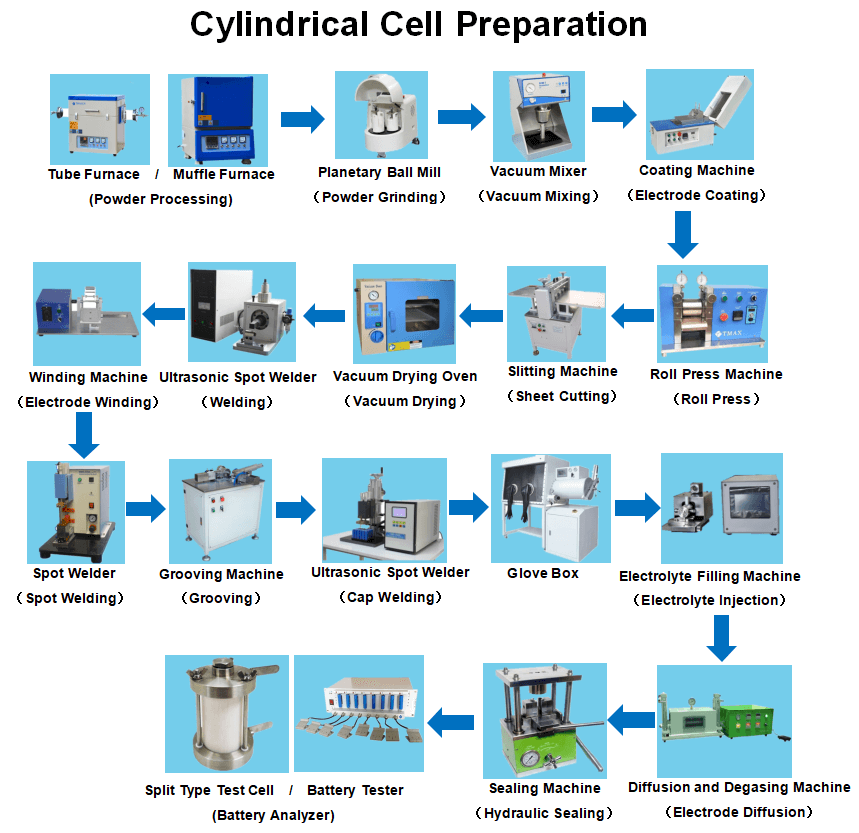

Coating Machine

Electrode Rolling Machine

Electrode Slitting Machine

Vacuum Drying Oven

Ultrasonic Spot Welding Machine

Spot Welding Machine

Grooving Machine

Coating Size:(optional)

(100*250)mm
(200*300)mm
(250*350)mm
(250*550)mm
(250*800)mm

Roller Size:(optional)

(100*100)mm
(100*200,100*250)mm
(100*300)mm
(100*400)mm

Electrode cutting

25L or 50L vacuum Drying Oven

 Welding Power:1000W/2000W

Single point or double point spot welding machine

Manual grooving machine
