Roller Diameter 150mm 260mm 315mm and 400mm, Flat Hydraulic Three Roller Mill with PLC Automatic Control Used in All Kinds of Oil, Electronic Paste, Plant Gum , Soap, etc
Model Number:
TMAX-YSP/YSHInput Power:
3KWDimension(L*W*H):
1100*1100*1400mmNet Weight:
520KGCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technicalPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Roller Diameter 150mm 230/260mm 305mm 400mm, Three Roller Mill Machine with A Speed Reducer Gear BoxNext:
Roller Diameter 260 and 400mm, Hydraulic Three Roller Mill Controlled by Hydraulic Pressure from Double-impeller Pump

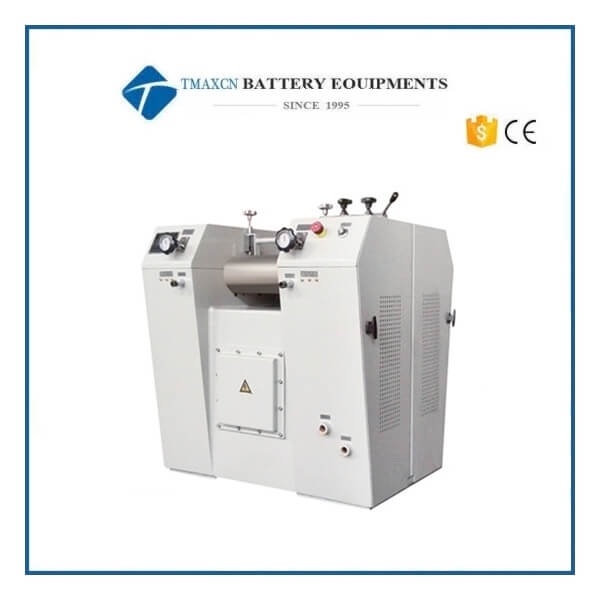

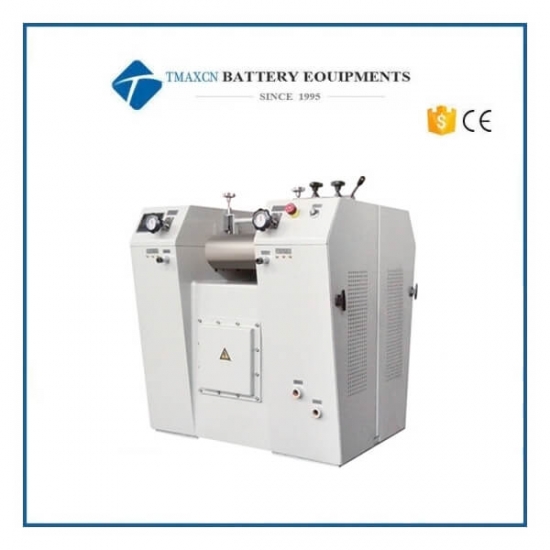

Roller Diameter 150mm 260mm 315mm and 400mm, Flat Hydraulic Three Roller Mill with PLC Automatic Control Used in All Kinds of Oil, Electronic Paste, Plant Gum , Soap, etc
Flat hydraulic three roller mill series use special grade alloy steel, which could reach unbelievable hardness. This series will use proportional valve adjusting the roller pressure&gap, thus the whole machine will be more stable and have longer life. This machine could be PLC automatic control.
Applications
It is widely used in all kinds of oil, electronic paste, plant gum , soap, etc. And YSH three roller mill specialized in grinding and dispersing powder type material like peanut, guar gum, etc.
Application
It is widely used in all kinds of ink, grease, coating, pigment, dye, e-paste, guar gum, soap, etc.
Configuration table |
|
Optional○ |
|
Explosion-proof |
○ |
Material of body frame: Stainless steel or Carbon steel |
○ |

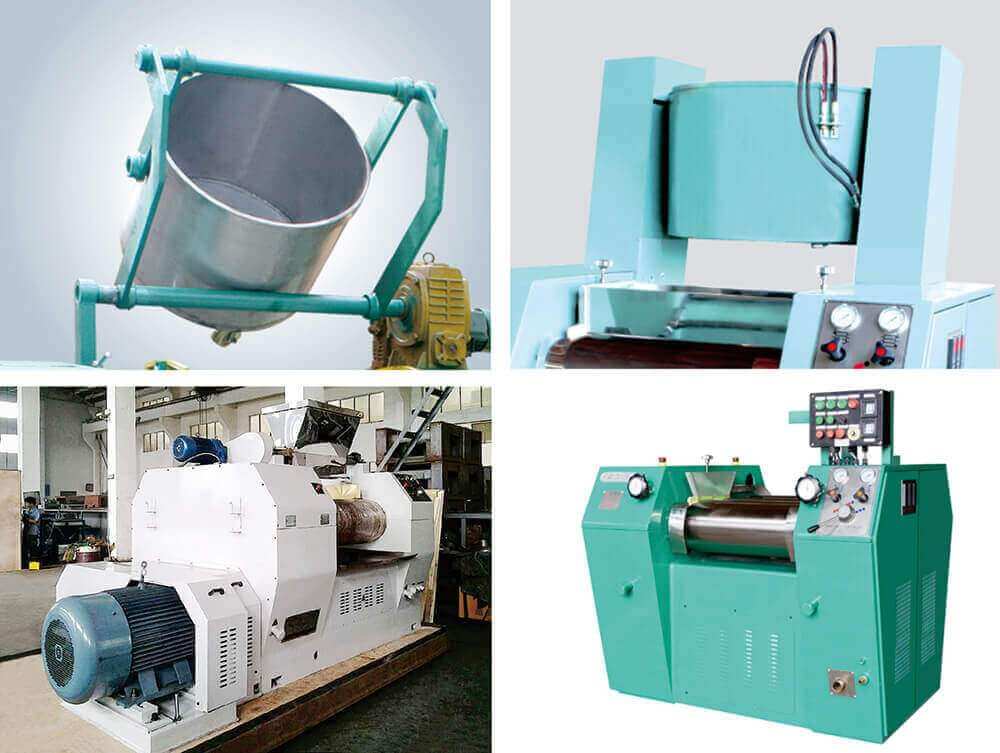

Topple over device |
○ |
Chamber |
○ |
Inverter control |
○ |
Level sensor |
○ |
Hydraulic system |
○ |
Control-panel |
○ |
PLC |
○ |
Model |
YSP150 |
YSP260 |
YSP400-800 |
YSP/YSH400-1000 |
|
Roller diameter(mm) |
150 |
260 |
315 |
400 |
|
Length of roller working surface(mm) |
300 |
650 |
900 |
1000 |
|
Distance from discharge hole to ground(mm) |
620 |
650 |
690 |
690 |
|
Output(L/h) |
25-40 |
180-250 |
250-350 |
300-400 |
|
Roll rotating speed |
Low speed roll |
26 |
58 |
51 |
32 |
|
Medium speed roll |
61 |
153 |
154 |
128 |
|
HIgh speed roll |
141 |
408 |
460 |
400-450 |
Main motor power(KW) |
3 |
22 |
30-37 |
55 |
|
Total pressure of hydraulic system(Mpa) |
6.3 |
6.3 |
6.3 |
6.3*2 |
|
Pressure power(KW) |
0.375 |
1.5 |
1.5 |
1.5*2 |
|
Machine weight(kg) |
520 |
2000 |
3200 |
5200 |
|
Overall dimension(mm) |
950*950*1080 |
1558*1280*1200 |
2050*1360*1500 |
2650*1750*2295 |
|
Packing dimension(mm) |
1100*1100*1400 |
1800*1400*1700 |
2200*1600*1800 |
2800*1900*1900 |
|
