Battery Slitting Machine

Roll To Roll Slitting Machine For Battery Separater,Ear Glue,Plastic Film Cutting

  • Model Number:

    TMAX-SL650B
  • Input Power:

    2.2KW
  • Dimension(L*W*H):

    2400x1700x1300mm
  • Net Weight:

    1000kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty and lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

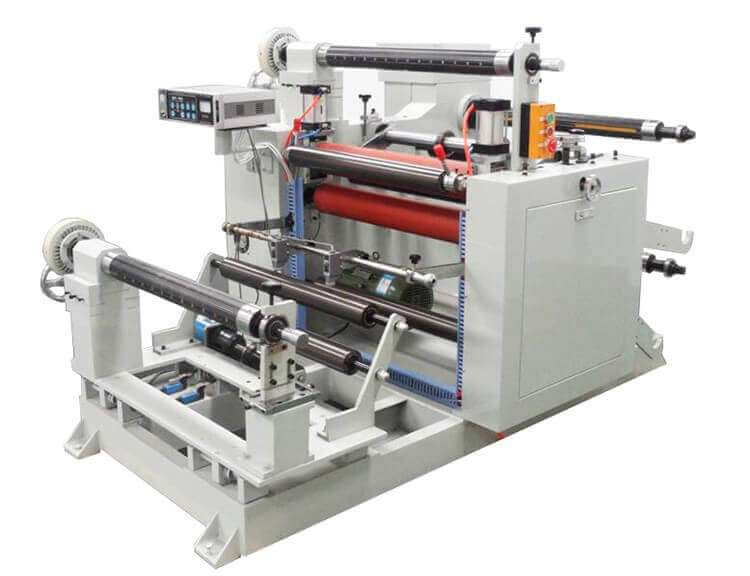

 Roll To Roll Slitting Machine For Battery Separater,Ear Glue,Plastic Film Cutting


SPECFICATION

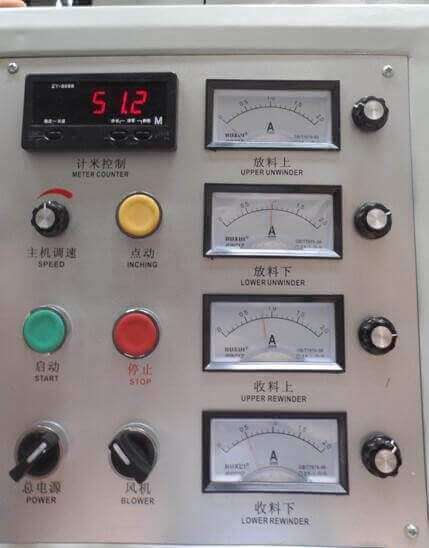

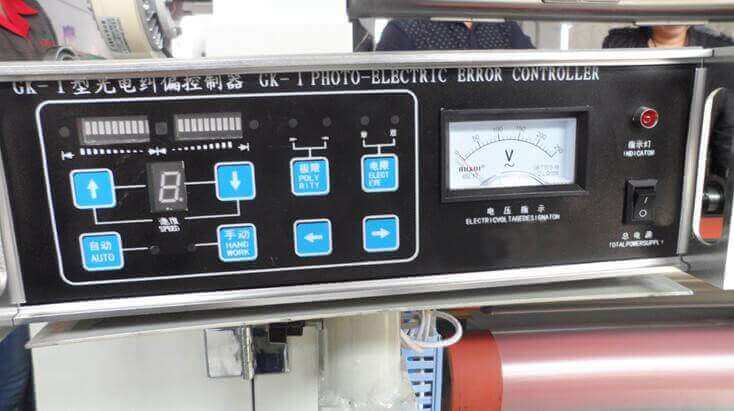

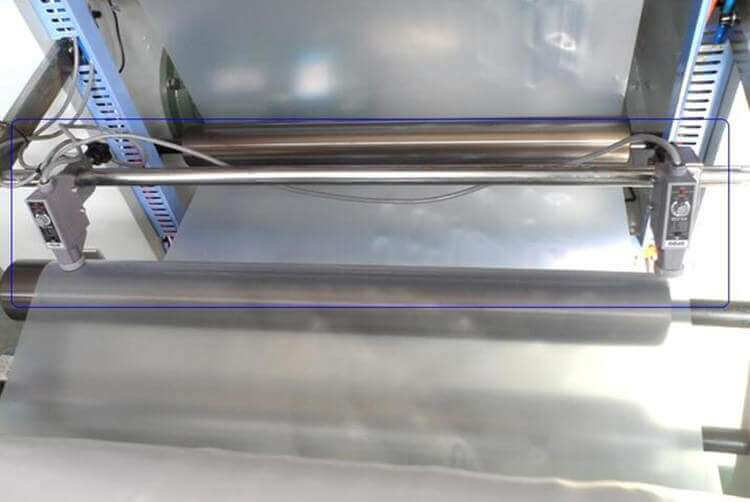

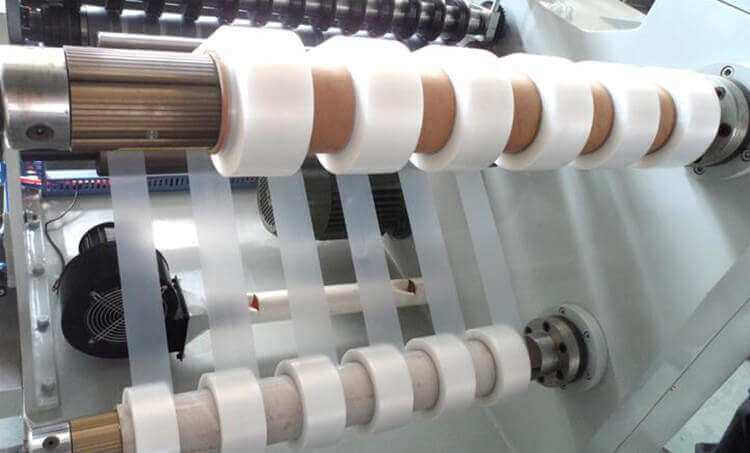

    The machine with photoelectric tracking correction system, magnetic powder clutch for winding and unwinding tension control, host frequency, cots on activities is controlled by cylinder can also fit, slitting, can also separate joint or separate cutting, accurate slitting, fast slitting speed and operation and maintenance is convenient etc.



Model

TMAX-SL650B

Size(mm)

2400x1700x1300

Weight(kg)

1000

Power supply

AC220V

Power (kw)

2.2

Slitting speed(m/min)

80

Max slitting size(mm)

650

Min slitting size(mm)

8

Feeding roll diameter(mm)

600

Winding roll diameter(mm)

450

Slitting accuracy(mm)

±0.1mm
