Roll to Roll Pressure Controlled Roller Press Machine( 12" Width) for Electrodes - MSK-E2300B

Model Number:
MSK-E2300B
Dimension(L*W*H):
200mm (Dia.) x 330mm(W)
Net Weight:
1000 kg (2200 lbs)
Compliance:
CE Certified
Warranty:
One-year limited warranty with lifetime support
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

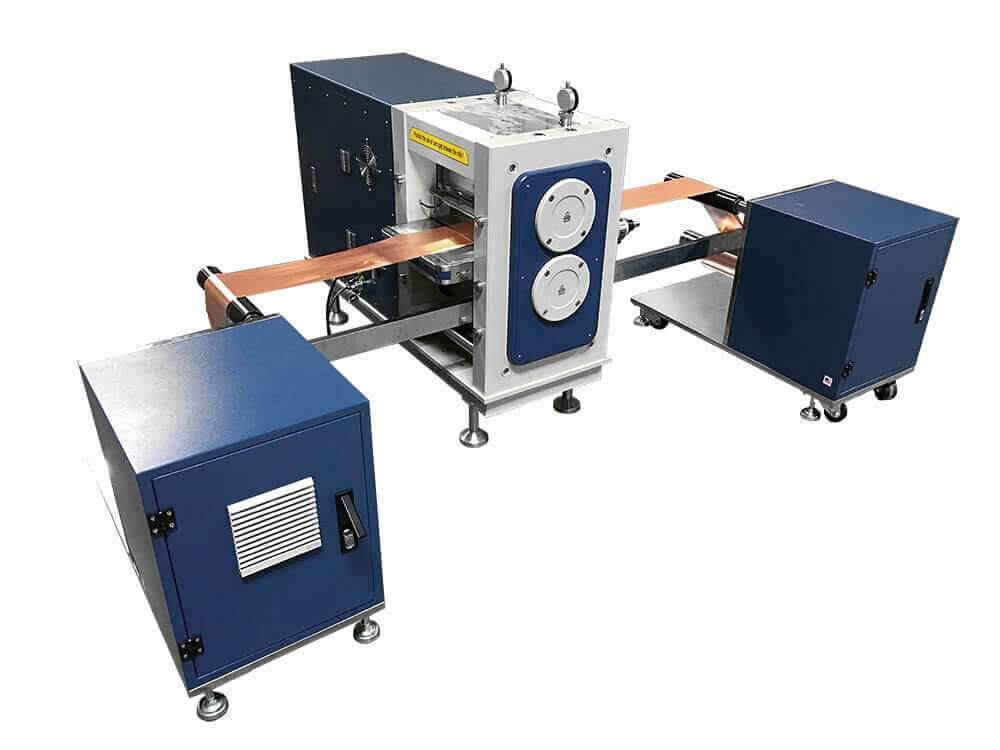

Roll to Roll Pressure Controlled Roller Press Machine( 12" Width) for Electrodes - MSK-E2300B

MSK-E2300B is an Automatic Battery Electrode Rolling Press System with precision digital pressure control in a compact footprint that is less than 6'x6'.

It integrates tension controlled feeding and winding devices together with Pressure Controlled Electric Rolling Machine to achieve attention-free electrode

rolling & pressing up to 75 meters long with the 300mm max width. It is a perfect tool for building prototypes (e.g. pilot scale studies) of new generation

rechargeable batteries to prepare electrode sheets at consistent and repeatable rolling conditions.

SPECIFICATIONS:

Working Voltage	208 - 240 VAC, 50/60Hz, Single Phase 220V AC Power plug is not included
Max. Power Consumption	2kW

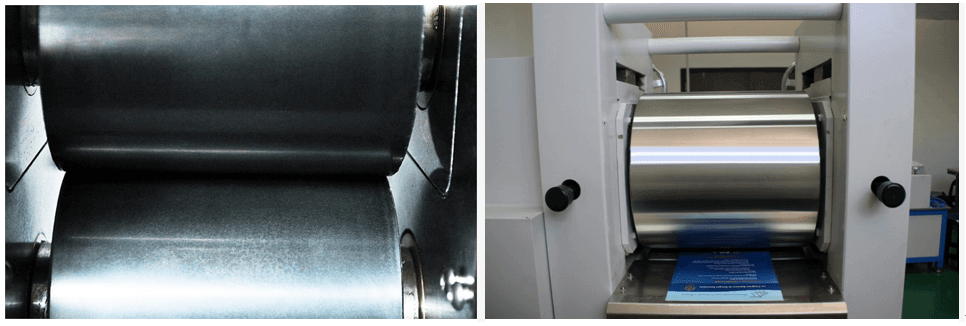

Rollers (one pair)	Dimensions: 200mm (Dia.) x 330mm(W) Material: Hardening Toll Steel with HRC 60-62 Effective Rolling Width: <250mm
Press gap	0.050 - 1 mm adjustable by Dual micrometer knobs Tolerance: 0.003mm
Motor & Rolling Speed	550W AC motor with frequency controller 1 - 6 Meter /Minute adjustable by Touch Screen Control Panel
Roller Surface Hardness	60-62 HRC Never roll materials with hardness >50HRC
Press Planeness	±0.0025mm
Pressure Control	Pressure load: 1 - 25 Tons adjustable by Touch Screen Control Panel Real time pressure displays with data recording function
Rectifying Sensor	Built in Rectifying Sensor to ensure neatly reeling electrode foil after pressing
Compressed air	60psi required (Air compressor is not included.
Rolling Unit Dimensions	Rolling Machine: 1200mm(L) x420mm(W) x 800mm(H) The system with feeding & winding:
Warranty	One-year limited warranty with lifetime support
Net Weight	1000 kg (2200 lbs)
Shipping Weight & Dimensions	Two Pallets 2020 lbs, 56"x48"x48" 810 lbs, 48"x40"x60"
