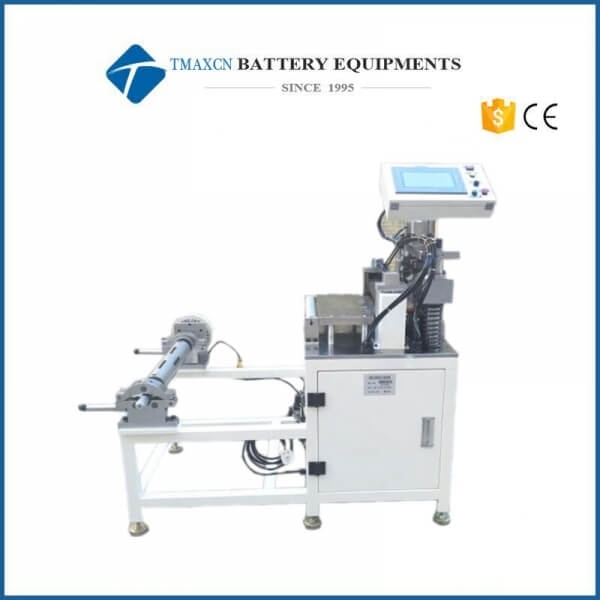

Roll To Roll Electrode Die Cutting Machine
Model Number:
TMAX-DYG-140BDimension(L*W*H):
500mm(W)Net Weight:
150 kgCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime supportDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab Electrode Die Cutter for Pouch Cell Electrodes CuttingNext:
Battery Electrode Die Cutting Machine for Pouch and EV Cell Production MSK-180

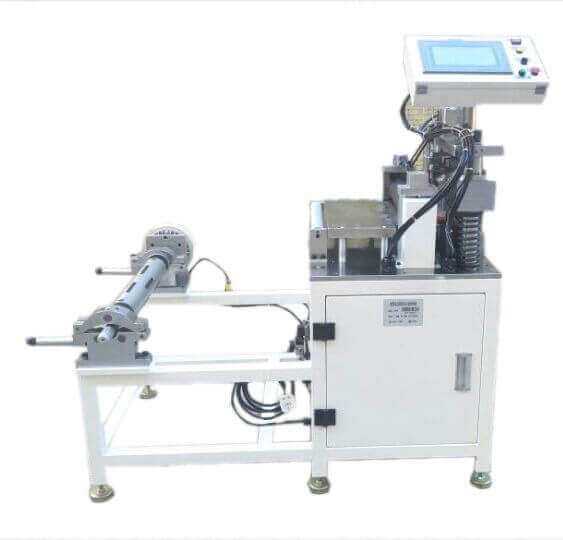

Roll To Roll Electrode Die Cutting Machine
Features
1 The Automatic shear cutting machine is mainly used for lithium battery big electrode cutting after coating process or after continuous rolling press process. Cutting big electrode is easier to slit or punch small pieces for battery making.
2 TMAX-DYG-140B model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.
Discover the best electrode press here.
SPECIFICATION
Model |
Lithium ion Battery Electrode Cutting Machine TMAX-DYG-140B |
Source voltage |
AC 220V/110V, 50HZ/60HZ |
Power |
500W |
Warranty |
Two Years limited warranty with lifetime support |
Max electrode width |
500mm |
Cutting material |
Battery continuous or clearance cathode and anode electrode |
Cutting speed |
0-12m/min, adjustable |
Cutting accuracy |
≤±0.3mm |
Dimension(L*W*H) |
1450*1250*1050mm |
Advantage |
1 Driven by stepper motor feed, fixed-length precision is high 2 PLC control, set length, easy to operate, intuitive 3 With digital set fixed-length cutting, clearance trace length shearing 4 Pneumatic drive shear, little noise |
