Modle

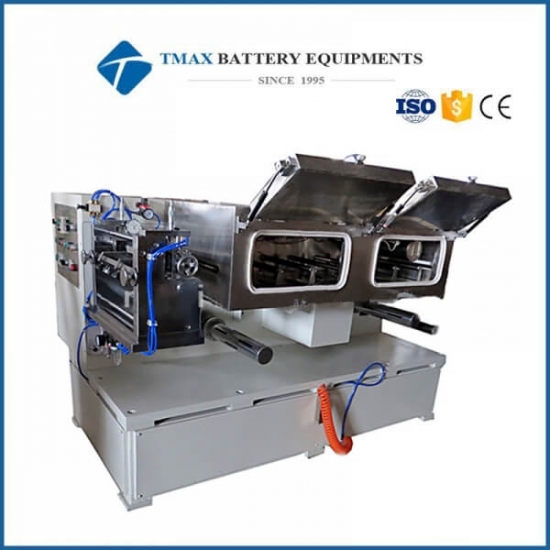

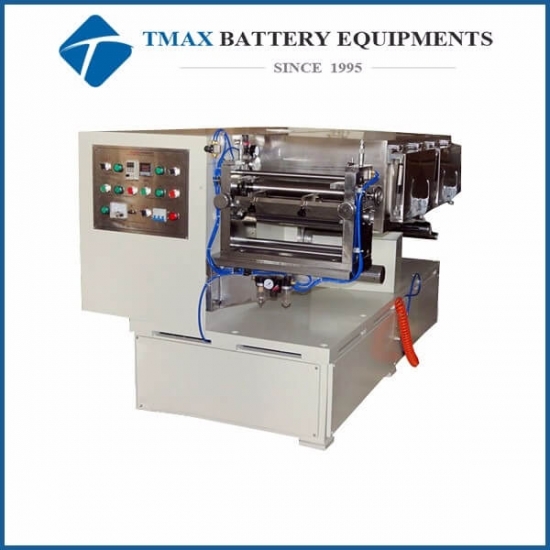

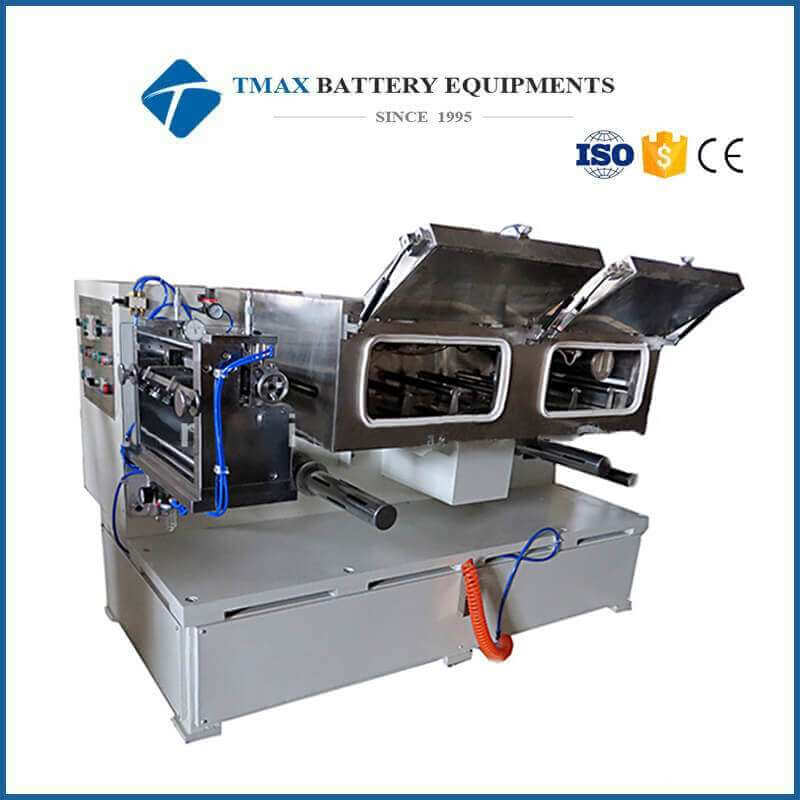

Lithium ion Battery Coating Machine TMAX-DYG-135

Source voltage

AC 220V/110V, 50HZ

Power

6500W

Warranty

One Year limited warranty with lifetime support

 Max electrode width

300mm

Coating speed

1m/min, adjustable

  Coating accuracy

 ≤±0.003mm

Roller diameter

Φ100mm

  Max coating roller diameter

Φ250mm

Control pressure

5-50N, adjustable

Dry temperature

RT-150℃, adjustable

Oven length

1.2m

Air compression

0.5-0.7MPa

Coating mode

Single face continuous coating

Application foil

Aluminum foil, Copper foil

Weight

About 1050kg

Dimension(L*W*H)

1800*810*1300mm

Advantage

1 Scraping system, parts processing precision, slurry contact part stainless steel structure, scraping thickness adjustable.

2 Main transmission adopts frequency control of motor speed, wide speed range speed constant and reliable for the speed control system, constant torque

3 Drying box adopts far infrared heating pipe, high heat efficiency, long service life

4 Using hot air circulation system, can make the temperature uniform,not easy to burn the pole piece

5 Temperature control adopts PID control system, high control accuracy, reliable work

6 The reeling adopts automatic correction system, pole piece coiling system
