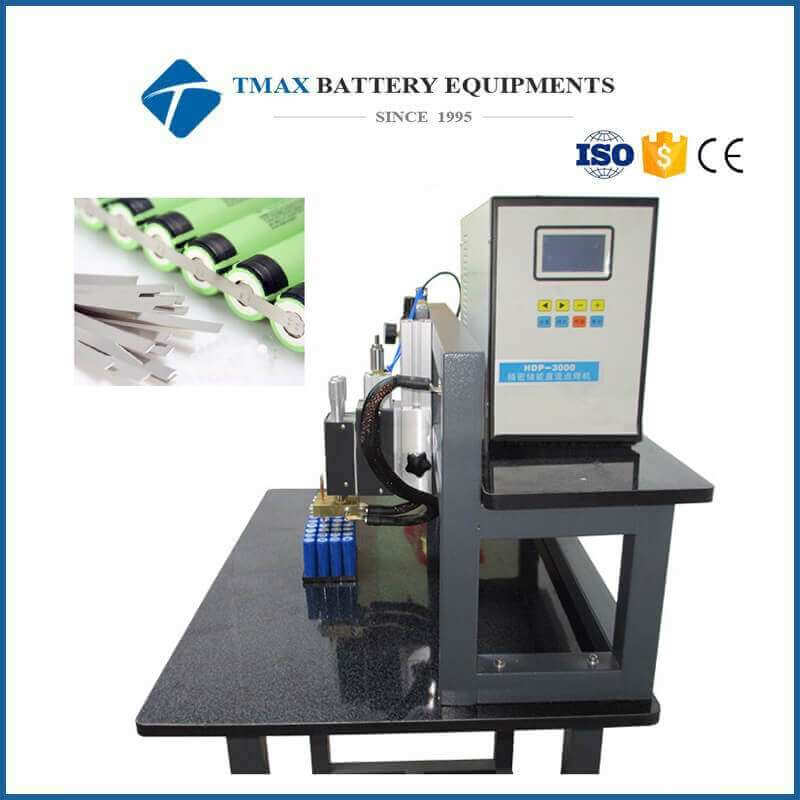

Precision Energy Storage DC Spot Welding Machine
Model Number:
TMAX-HDP-3000Dimension(L*W*H):
900*700*1300mmNet Weight:
60kgCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
15 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
3600W Ultrasonic Spot Welder with Touch Screen ControllerNext:
Automatic Numerical Control EV Cell Battery Spot Welding Machine for 18650 Battery Pack
Product Details
Precision Energy Storage DC Spot Welding Machine
Ⅰ、Functional characteristics:
1) DC welding, welding current is DC, without the disadvantage of AC zero crossing and discontinuous heating of workpieces, heat concentration, and improved welding thermal efficiency.
2) Especially suitable for welding non-ferrous metal materials and some difficult to weld materials, the welding process is stable and the welding quality is significantly improved. Meanwhile, the electrode life is extended.
3) High speed and high precision microprocessor (MCU) control, providing highly stable repetitive welding with current monitoring function.
4) The inverter bridge adopts soft switching technology to reduce switching losses and electromagnetic interference.
5) Equipped with fault diagnosis and alarm functions such as current imbalance, monitoring value exceeding limit, voltage exceeding limit, etc.
6) Time wide range setting (0-9.9ms), can use multiple pulses to meet the needs of complex welding processes.
7) 10 sets of parameter storage welding specifications, convenient for various welding varieties to use.
8) 128 * 64 Chinese LCD display, displaying multiple contents simultaneously, graphical display of current working status, friendly working interface, welding pulse diagram.
9) The shape display function improves the convenience of debugging and observation.
10) High speed welding: Quick start and high-speed polarity switching reduce temperature effects, making the welding surface clean and beautiful.
11) Polarity switching: Suppresses asymmetric effects, ensures uniform welding strength between two points, and prolongs electrode service life.
12) Imported IBGT module with full bridge control welding discharge, welding quality and speed are not ordinary energy storage welding energy ratio.
13) Double pulse reduces welding spatter and effectively improves welding quality.
14) The data storage adopts EEPROM, with no battery life issues, and every time the machine is turned on, it returns to the previous welding program used.
15) Welding voltage locking technology to prevent network voltage fluctuations from affecting welding current.
16) Equipped with two current monitoring and comparison functions, with sound and light alarms for abnormal current, effectively preventing the occurrence of virtual welding and false welding.
Ⅱ、Specification:
SN |
Parameter items |
TMAX-HDP300 |
1 |
Maximum output maximum power |
25KVA |
2 |
Maximum welding current on the secondary side |
6000A |
3 |
Energy-storage capacitor |
6600uF |
4 |
Welding control method |
Imported IGBT module control, dual pulse welding |
6 |
Secondary voltage |
10.8V |
7 |
Welding time |
0.1ms-9.9ms adjustable, accuracy:0.1ms |
8 |
Welding mode |
Normal/Continuous |
9 |
Input frequency |
AC 220V±10% 50Hz±2Hz |
10 |
Maximum working air pressure |
6KG |
11 |
Size |
900*700*1300 |
12 |
Weight |
60KG |
