Electrolyte Filling

Precision Battery Electrolyte Filling Machine with Speed Control Console and Injection Pump

  • Model Number:

    MSK-150-L
  • Input Power:

    250W
  • Dimension(L*W*H):

    Control Console: 360 x 240 x 190mm
  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

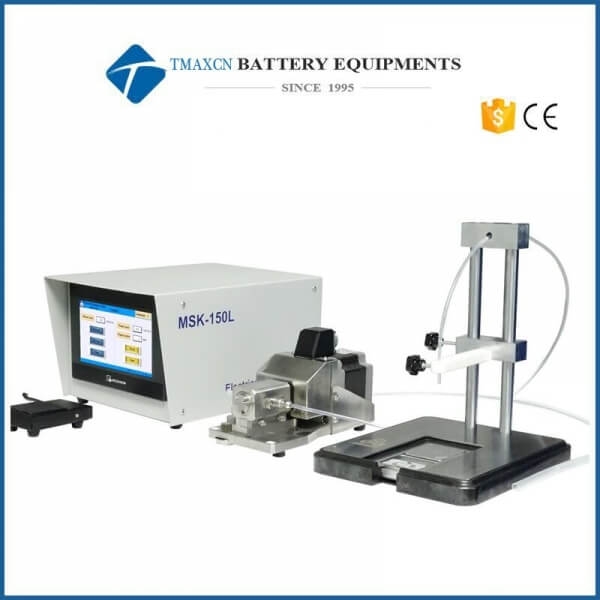

Precision Battery Electrolyte Filling Machine with Speed Control Console and Injection Pump


MSK-150-L is a desktop electrolyte filling machine with speed control console and injection pump for high-precision dispensing purpose. The control console allows to customize the dispensing speed by driving the internal stepper motor up to 250rpm. The injection pump adjusts the volume of each dispensation. This is an ideal tool for preparing electrolyte in battery Research

Specification

Voltage

DC24V

Power

250W

Driving Mechanism

Stepper motor

Dispensing Speed

250rpm max.

Injection Accuracy

2‰

Touchscreen Control

  • Forward and backward function to siphon electrolyte and release air bubbles.
  • Customize dispensing speed and number of dispensations.

Inlet & Outlet Diameter

Inlet: Ø6mm; Outlet: Ø4mm

Net Weight

Injection Pump: 5kg
Control Console: 3kg

Product Dimensions

Injection Pump: 220 x 120 x 110mm
Control Console: 360 x 240 x 190mm
