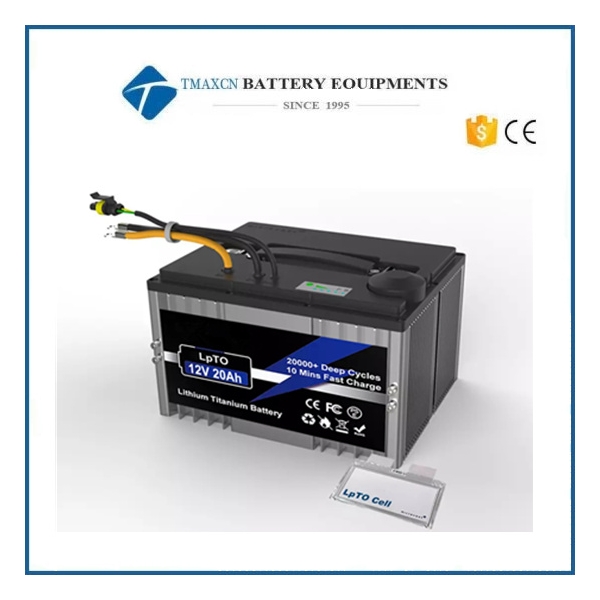

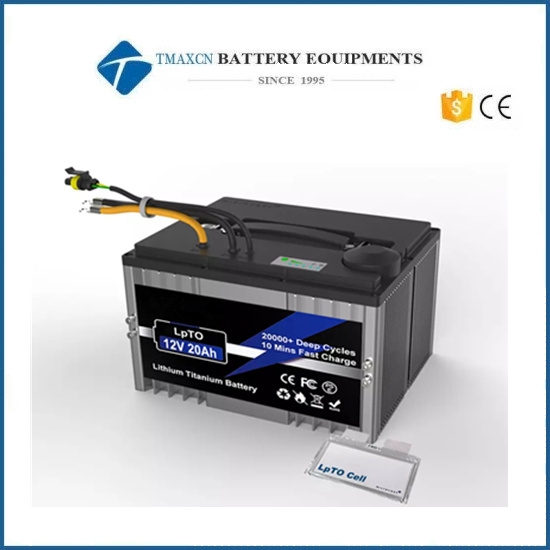

Pouch Cell Pack 5S2P 12V 20Ah Lithium Titanate Battery Pack
Model Number:
TMAX-BP3Compliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Product Details
Pouch Cell Pack 5S2P 12V 20Ah Lithium Titanate Battery Pack
Cell type |
LpTO-10Ah |
|
Case number |
1 |
|
Nominal voltage |
11.5V |
|
Configuration |
5S2P |
|
Nominal capacity |
20Ah |
@25℃，±5% |
Nominal energy |
0.230Kwh |
|
Max constant charging current |
50A |
|
Max constant discharging current rate |
60A |
|
Discharge Cut-off Voltage |
9V |
|
Upper cut-off voltage |
14V |
|
Pulse discharge Current |
400A |
|
Dimension (LxWxH) |
Film cover |
The control box dimension is OEM. |
System Weight |
＜3Kg |
|
Cooling or heating plate |
yes |
Need extra air cooling system |
BMS in built |
yes |
|
CAN bus |
yes |
|

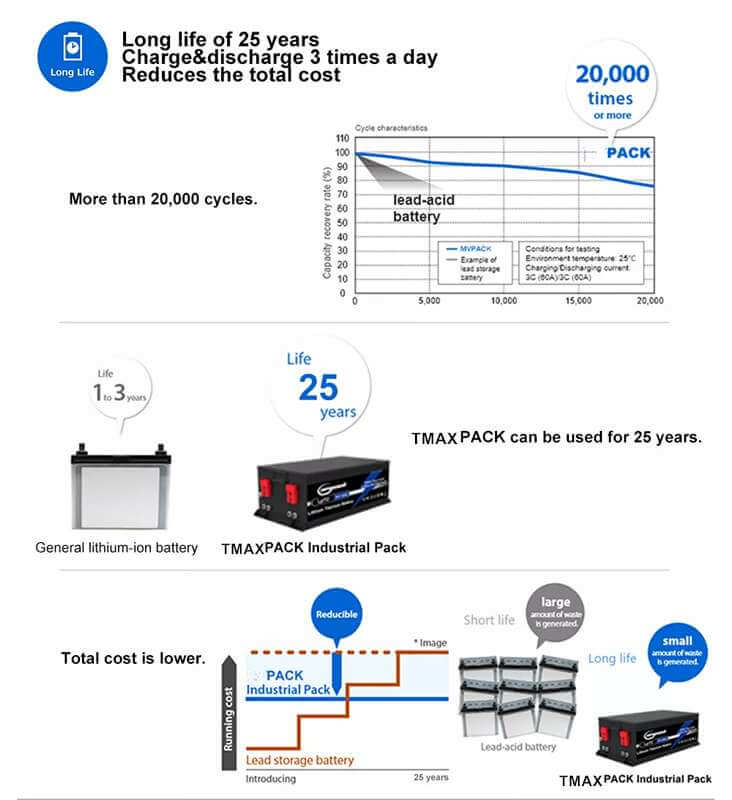

Life cycle |
20000times |
@standard working state. 80%DOD |
