Pouch Cell fabrication Plant

Pouch Cell Lab Fabrication Making Equipment Plant

  • Model Number:

    TMAX-PCAL-2
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Pouch Cell Lab Fabrication Making Equipment Plant

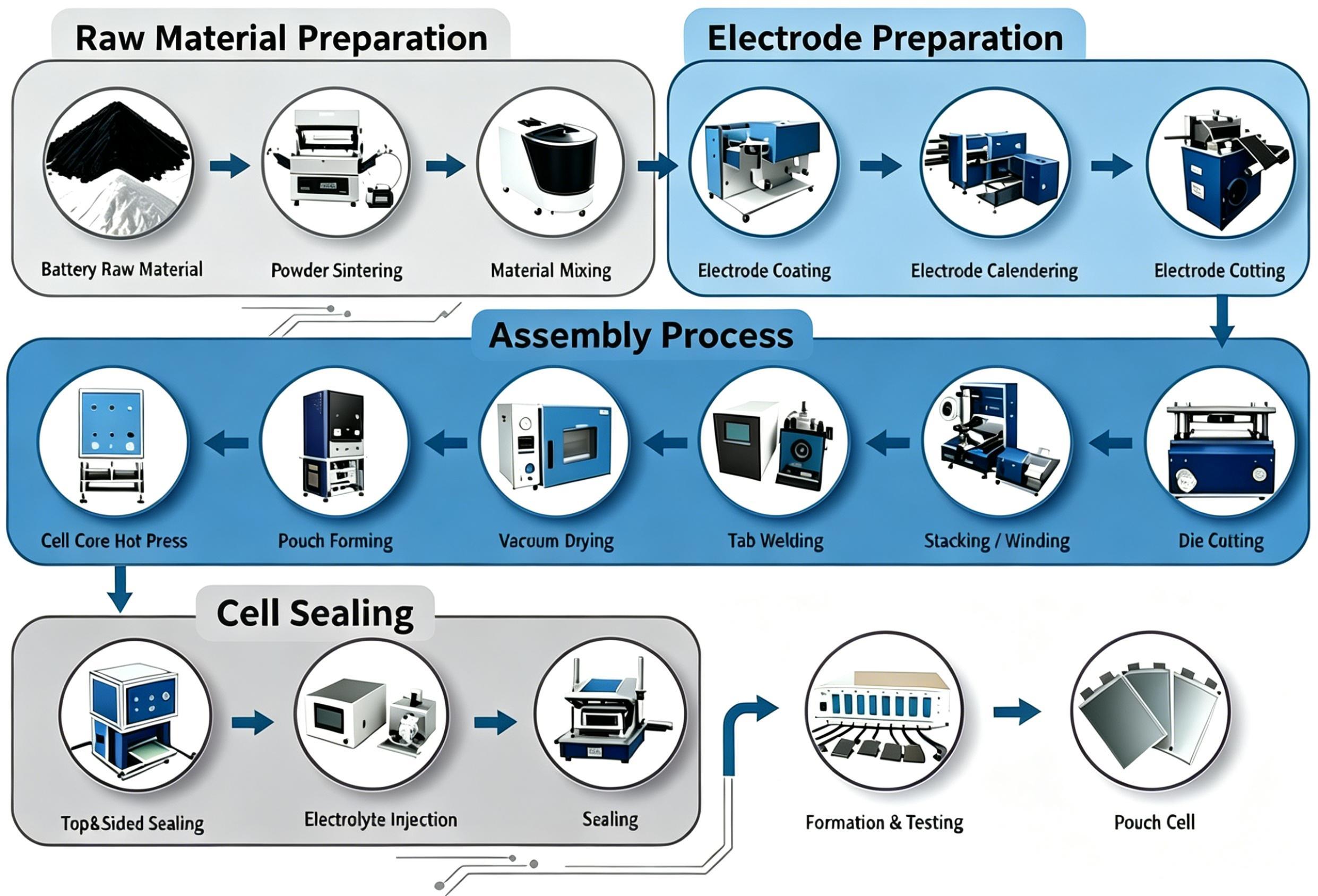

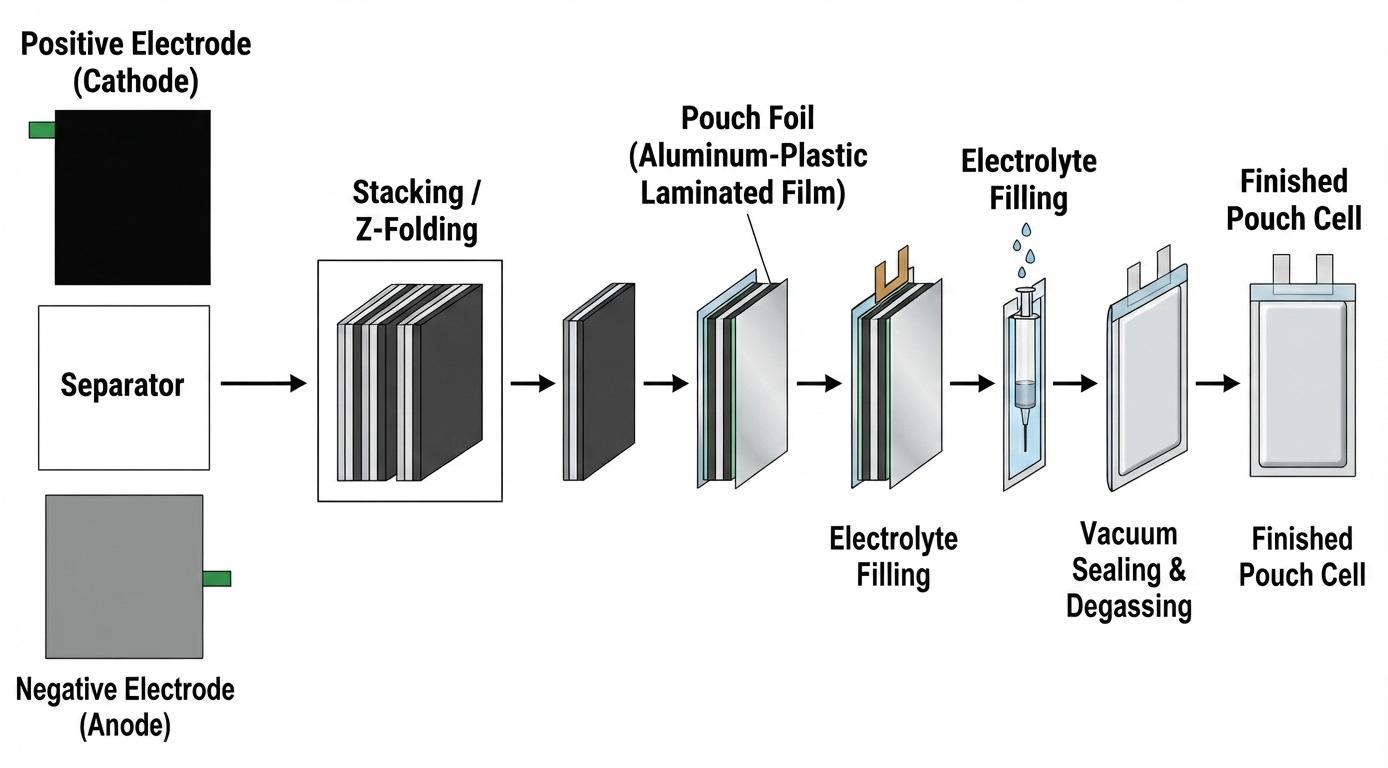

Pouch Cell Assembly

Process

Item

Product Name

Description

Web address

Powder processing

Furnace

Muffle Furnace/Tube Furnace/Atmosphere Muffle Furnace...

https://www.tmaxcn.com/1400-c-40-segment-muffle-furnaces-w-pc-interface_p1078.html

Slurry vacuum mixing

Mixer

Compact Vacuum Mixer With Vibration Stage & Two Containers (150 & 500ml)

With 150ml and 500ml container, Rotary Speed:320rpm

https://www.tmaxcn.com/compact-vacuum-mixer-with-vibration-stage-two-containers-150-500ml_p424.html

Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container

Dual-Shaft, 500ml container, Rotary Speed:600rpm

https://www.tmaxcn.com/compact-dual-shaft-planetary-vacuum-mixer-machine-with-a-500-ml-container_p385.html

Electrode coating

Coater

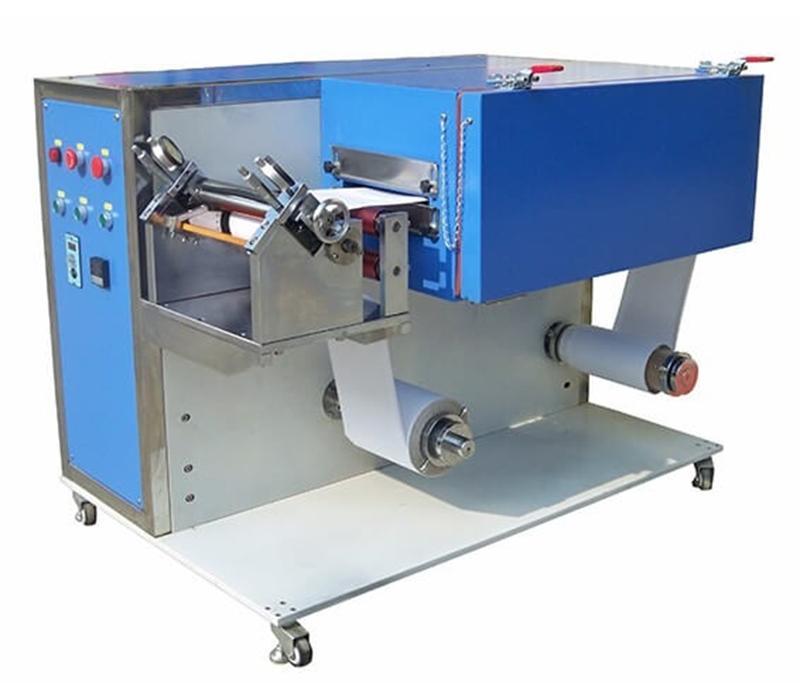

Laboratory Electric Heat Film Coating Machine For Electrode Coater With Dryer

Effective coating area:100*250mm

https://www.tmaxcn.com/laboratory-electric-heat-film-coating-machine-for-electrode-coater-with-dryer_p904.html

200*300mm

250*550mm

250*800mm

Micrometer Adjustable Film Applicator With Digital Display-100mm Width

With digital gauge,coating width:100mm

https://www.tmaxcn.com/micrometer-adjustable-film-applicator-with-digital-display-100mm-width_p1472.html

Lab Compact Film Vacuum Coating Machine with 300mm Width Doctor Blade

Bar coating, coating width:100mm

https://www.tmaxcn.com/lab-compact-film-vacuum-coating-machine-with-300mm-width-doctor-blade_p491.html

Electrode pressing

Press Machine

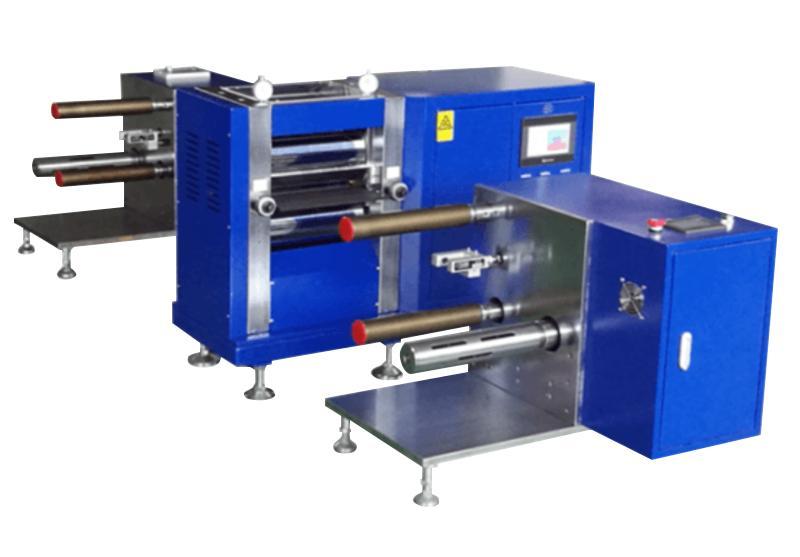

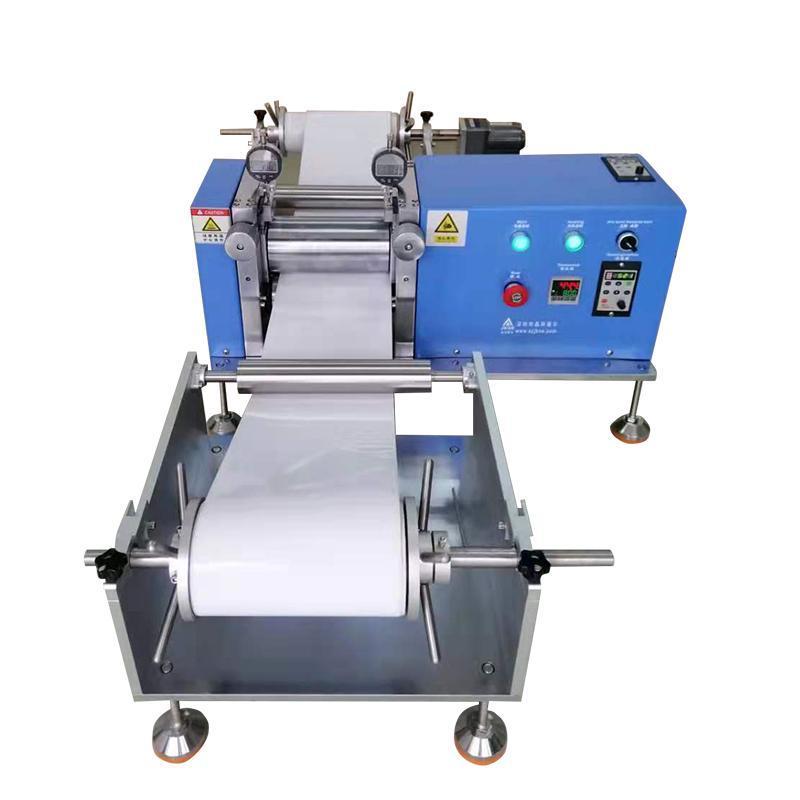

Electric Roller Press Machine With Variable Speed

100*100(dia*width,mm),electric,with heating function

https://www.tmaxcn.com/electric-roller-press-machine-with-variable-speed_p379.html

100*200

100*300

100*400

Lab Small Pressing Calendar Rolling Machine

100*100(dia*width,mm),maual,without heating function

https://www.tmaxcn.com/lab-small-pressing-calendar-rolling-machine_p843.html

100*200

100*300

Electrode cutting

Die cutter

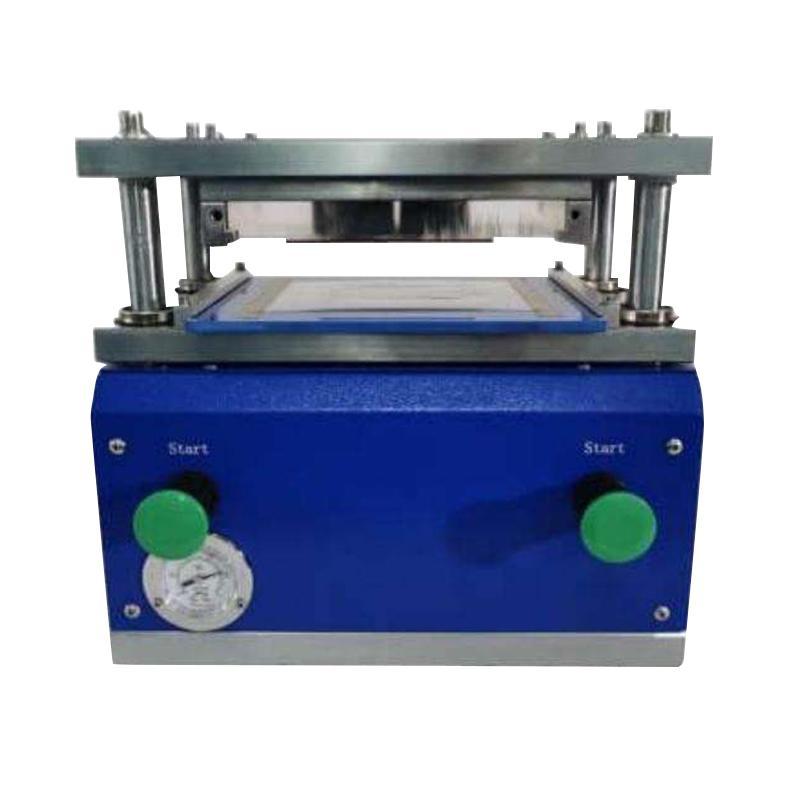

Lab Electrode Die Cutter For Pouch Cell Electrodes Cutting

Suitable for small size electrode cutting
Max. customized size:120mm L x 100mm W
Including one customized cutting die
extra cutting die needs additional costs

https://www.tmaxcn.com/lab-electrode-die-cutter-for-pouch-cell-electrodes-cutting_p1474.html

Lab Electrode Die Cutter For Pouch Cell Electrode Sheet With Two Size Range Optional

Suitable for various size range electrode cutting
Max. customized size:250mm(L) * 250mm(W)
Including one customized cutting die
extra cutting die needs additional costs

https://www.tmaxcn.com/lab-electrode-die-cutter-for-pouch-cell-electrode-sheet-with-two-size-range-optional_p906.html

Electrode stacking

Stacker

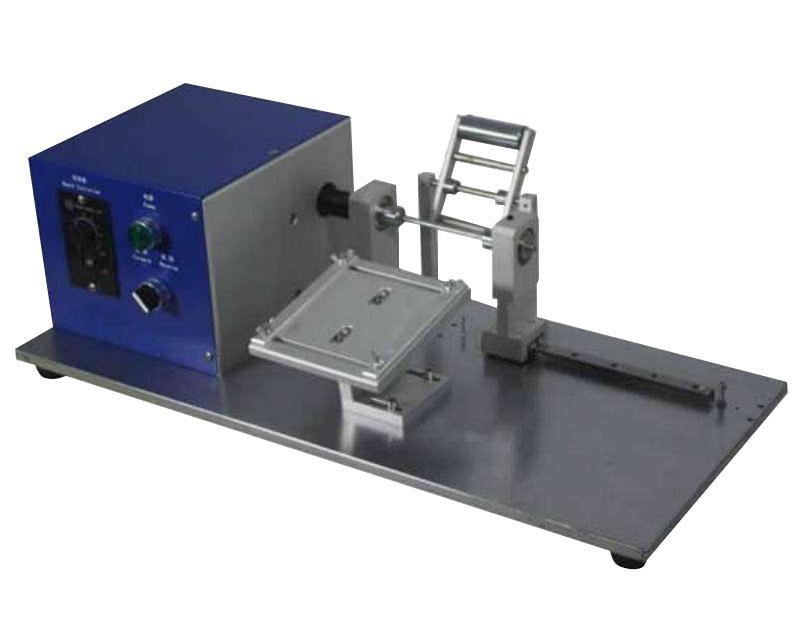

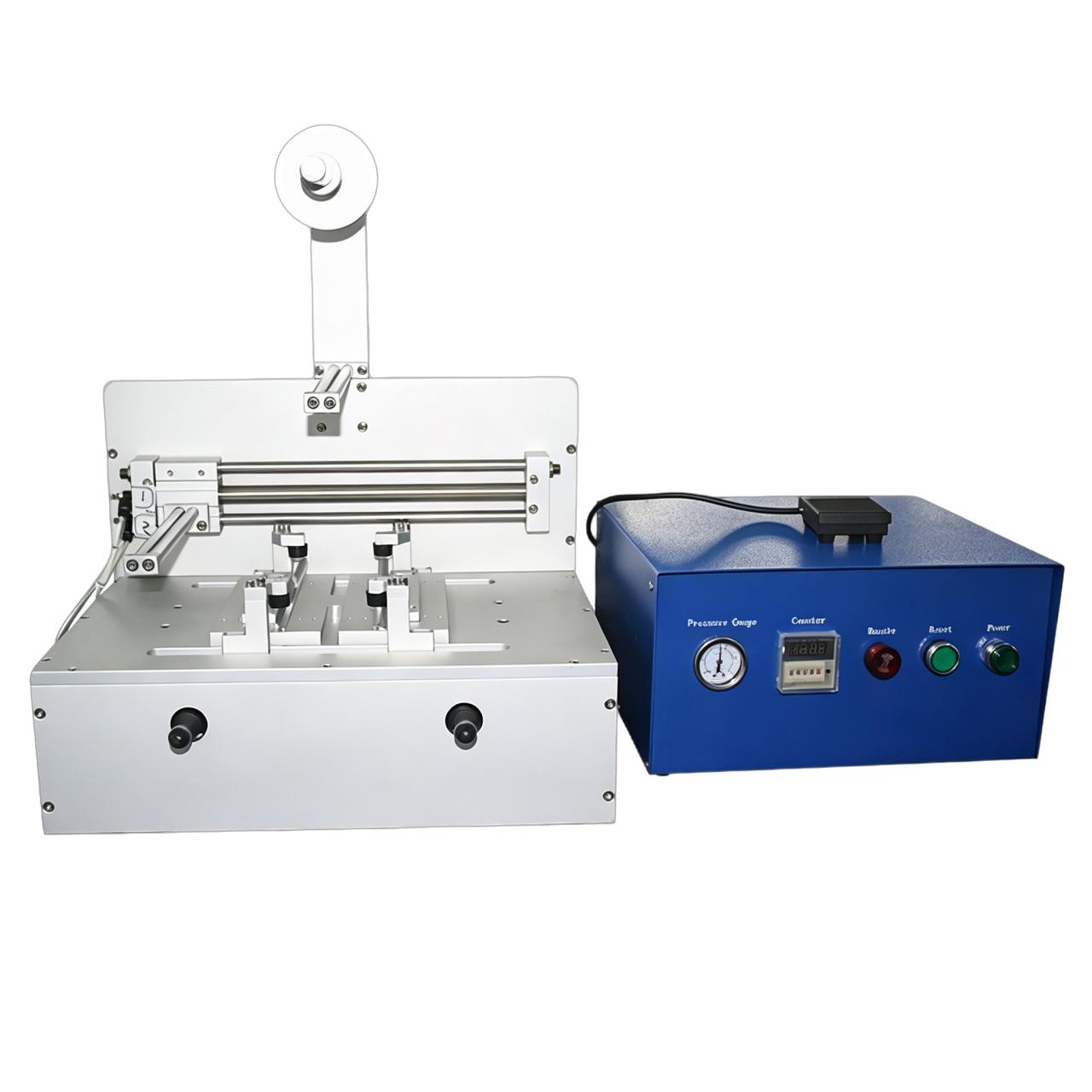

Laboratory Electrode Stacking Machine For Pouch Cell Production Line

Suitable for various electrode size stacking, manual

https://www.tmaxcn.com/laboratory-electrode-stacking-machine-for-pouch-cell-production-line_p907.html

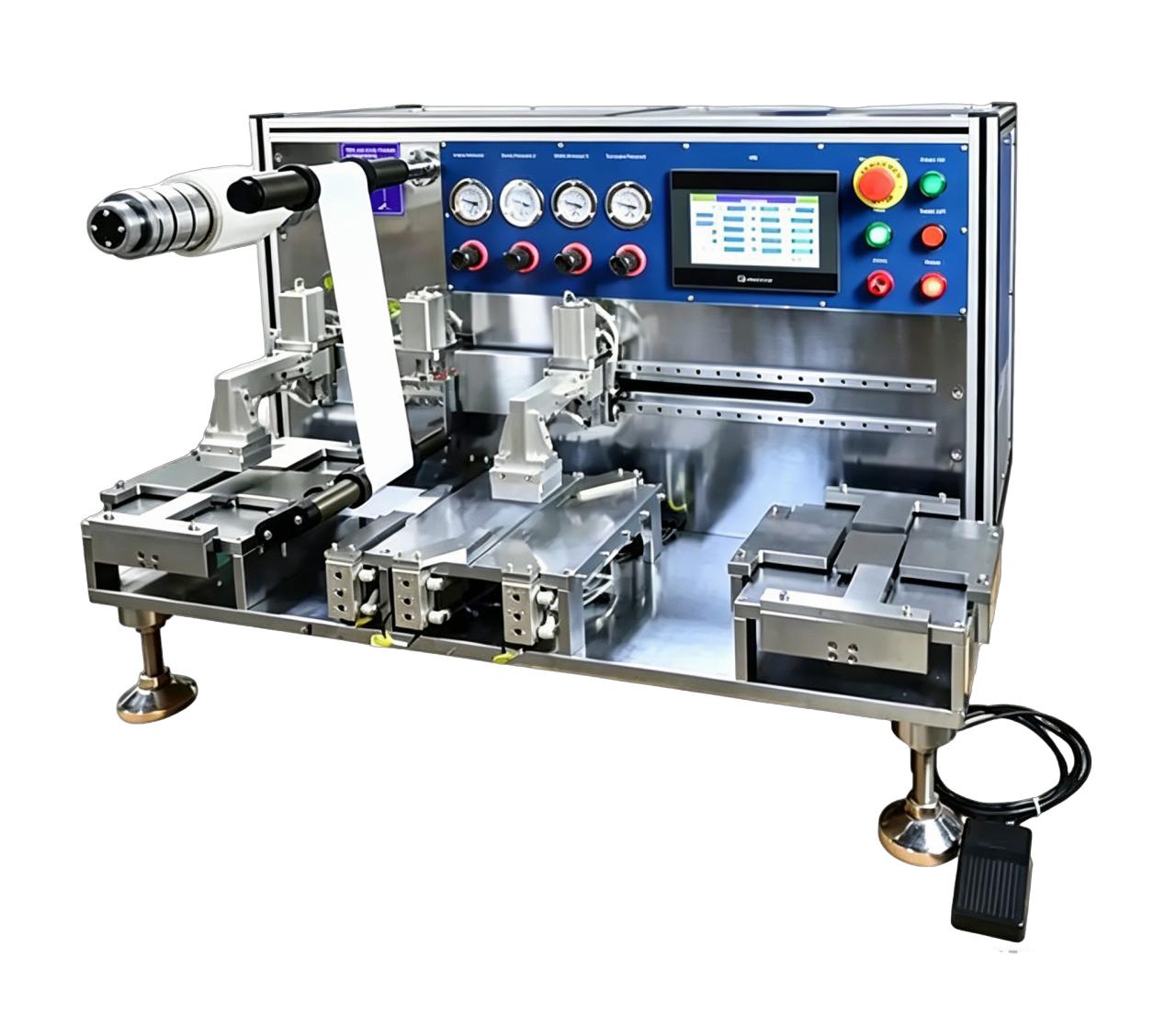

Semi-Automatic Stacking Machine For Pouch Cell Electrodes

Max suitable electrode size:200mm*150mm

https://www.tmaxcn.com/semi-automatic-stacking-machine-for-pouch-cell-electrodes_p502.html

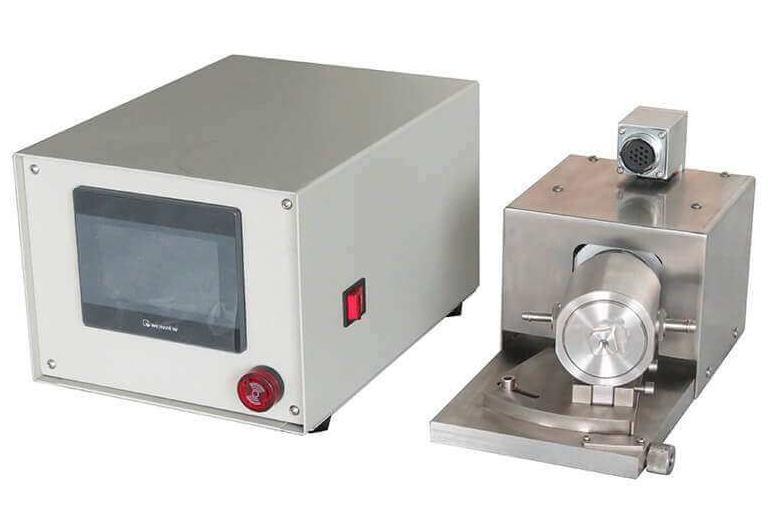

Tab Welding

Ultrasonic spot welder

Al Tab Ni Tag Ultrasonic Welding Machine

2000W, 40kHz

https://www.tmaxcn.com/au-fe-ni-ag-ultrasonic-metal-welder-tabbing-max-40-layers_p909.html

3600W,  20kHz

Case forming

Forming machine

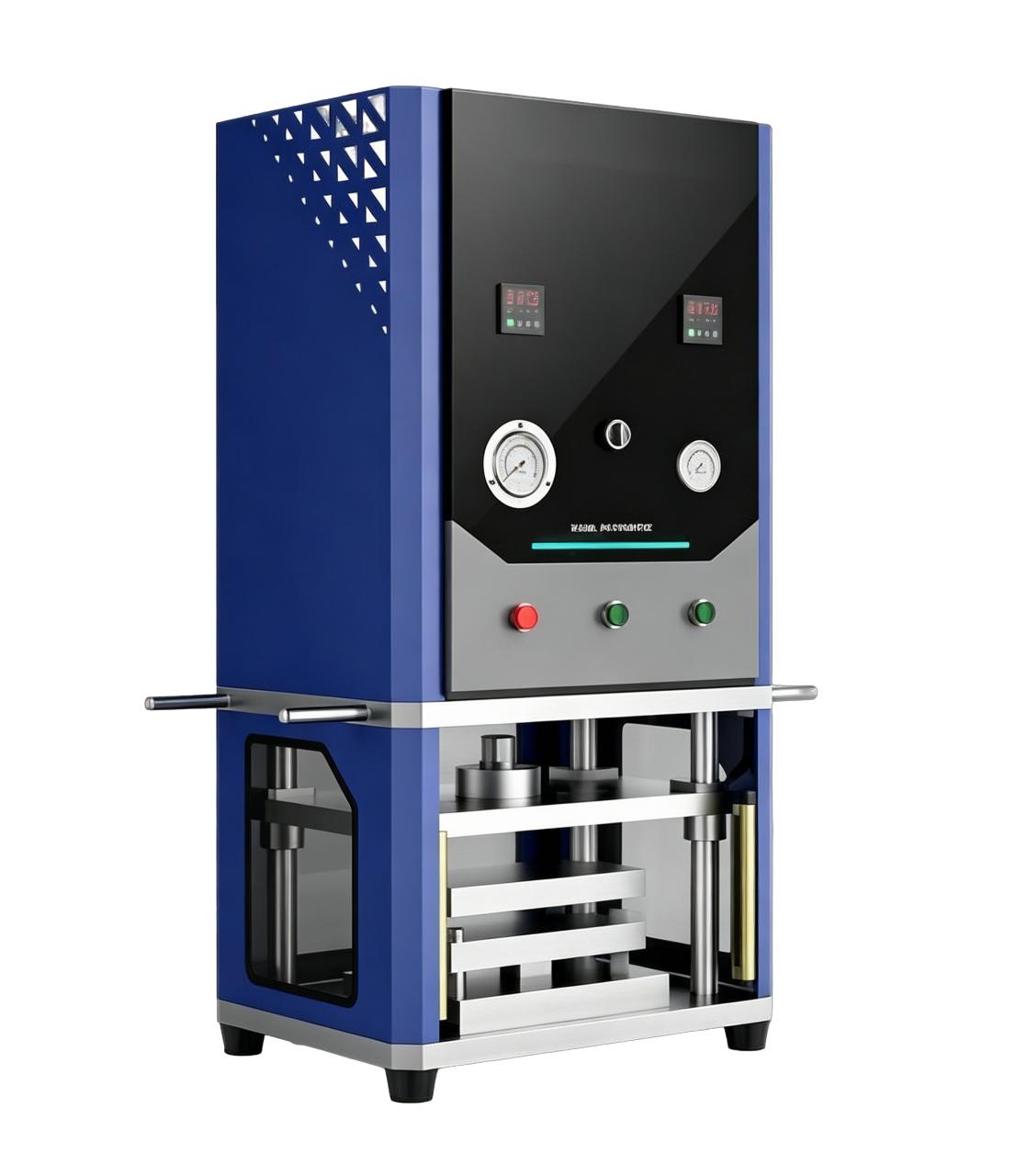

Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films

Including one customized forming die; applicable electrode size: within L120*W80mm

https://www.tmaxcn.com/pouch-forming-machine_c61

Including one customized forming die; applicable electrode size: within L130*W120mm

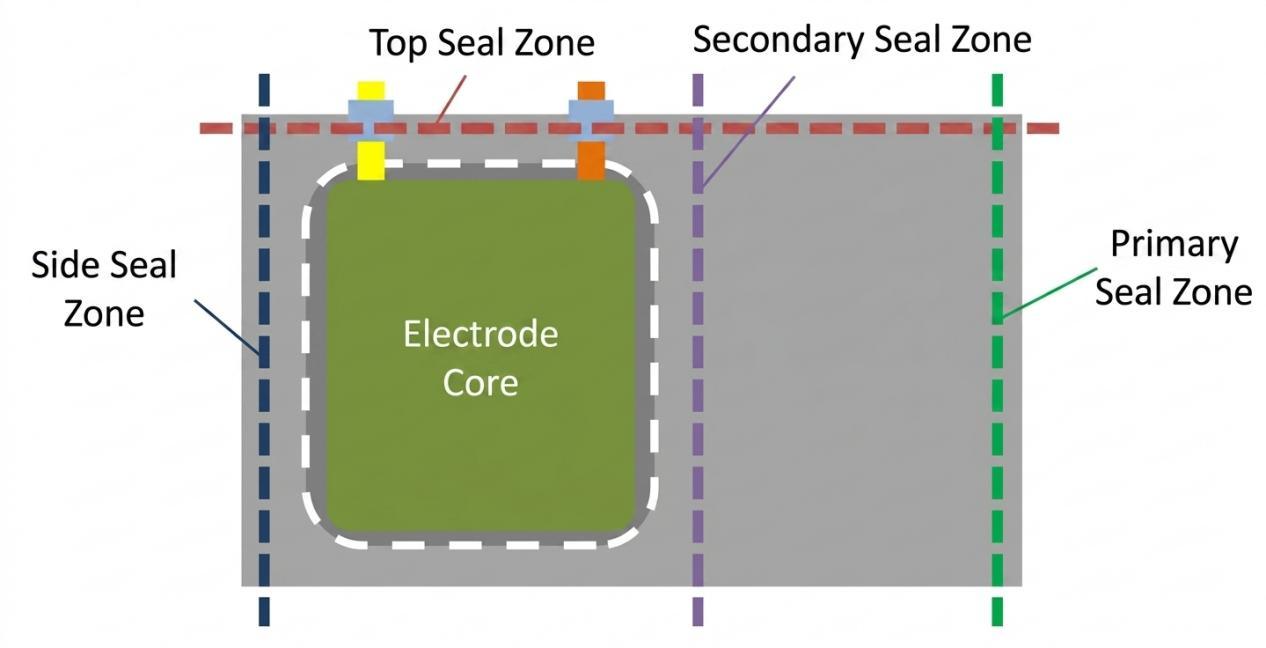

Top&side welding

Hot sealing machine

Compact Heating Sealer For Sealing Laminated Aluminum Case Of Pouch Cells

With rubber sealing blade, suitable for sealing with tab, sealing bar length:200mm

https://www.tmaxcn.com/compact-heating-sealer-for-sealing-laminated-aluminum-case-of-pouch-cells_p397.html

Sealing bar length:300mm/400mm

Electrolyte injection

Electrolyte filing machine

Bottletop Electrolyte Digital Dispenser With 32oz Boston Round Glass Bottle: 1- 10 Ml Adjustable

Manual operation, digital display

https://www.tmaxcn.com/bottletop-electrolyte-digital-dispenser-with-32oz-boston-round-glass-bottle-1-10-ml-adjustable_p470.html

Single Head Electric Injection Pump For Lithium Ion Battery Electrolyte Filling

Automatic, PLC controlled

https://www.tmaxcn.com/single-head-electric-injection-pump-for-lithium-ion-battery-electrolyte-filling_p651.html

Electrolyte Diffusion & Degassing

Diffusion & Degassing Chamber

Pouch Cell Electrolyte Diffusion/Degassing Chamber

Can be put into glove boxOperation Temperature:-20 to 40

https://www.tmaxcn.com/pouch-cell-electrolyte-diffusion-degassing-chamber_p1016.html

Vacuum sealing

Vacuum sealer

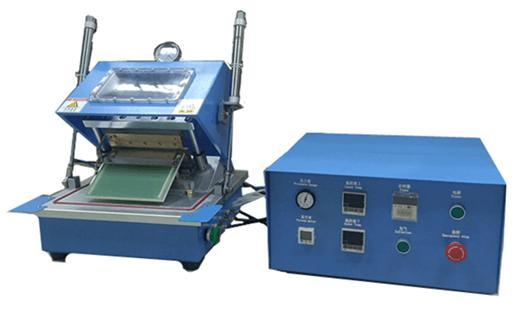

Laboratory Vacuum Sealing Machine

Can be put into glove box, sealing bar length:200mm

https://www.tmaxcn.com/laboratory-vacuum-sealing-machine_p806.html

Sealing bar length:300mm

Sealing bar length:400mm

Battery performance testing

Battery tester

5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment

Testing range from 12.0 mA to 6000 mA, up to 5V.

https://www.tmaxcn.com/high-accuracy-battery-internal-resistance-tester-for-lab-r-d_p606.html

10V10A 8 Channel Lithium Ion Battery Tester Equipment For Experiment

Testing range from 12.0 mA to 10000 mA, up to 10V.
