Polymer Battery Side Sticking Machine
Model Number:
TMAX-MYG-2Input Power:
30WDimension(L*W*H):
600*700*1280mmNet Weight:
60kgCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPlace of Origin:
ChinaUpdate:
OptionalShipping Port:
Xiamen PortPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588

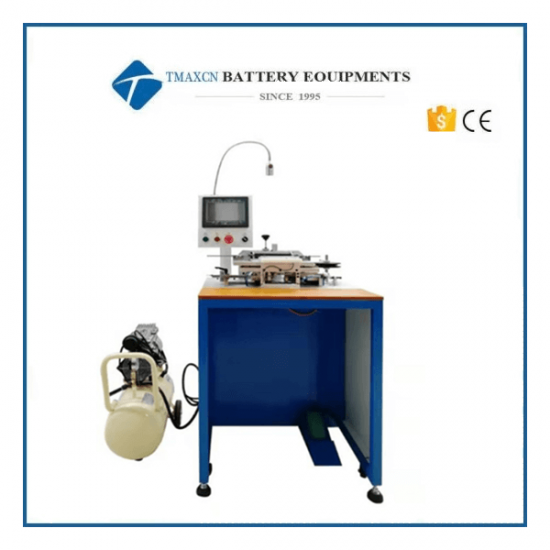

Polymer Battery Side Sticking Machine
Product Introduction:
1. The equipment is simple and easy to learn, easy to operate, ultra-low failure rate, equipped with vacuum pump, very energy-saving.
2. The machine solves the problem of wrapping adhesive tape on both sides and bottom of polymer built-in battery, has high consistency, improves efficiency and saves labor cost.
3. Adhesive tape for both sides and bottom of polymer built-in battery (including mobile phone electricity, mobile power supply, power battery, etc.).
Technical parameters:
Power Supply |
220V 50Hz 30W |
Air Pressure |
0.4-0.8MPa |
Applicable Battery Range |
Polymer Cell |
Gluing Length |
30-140mm |
Gluing Width |
6-16mm |
Cell Thickness |
3-8mm |
Capacity |
1200-1500 times/h |
Overall Dimension |
600*700*1280mm |
Weight |
60KG |
