Ball Mill

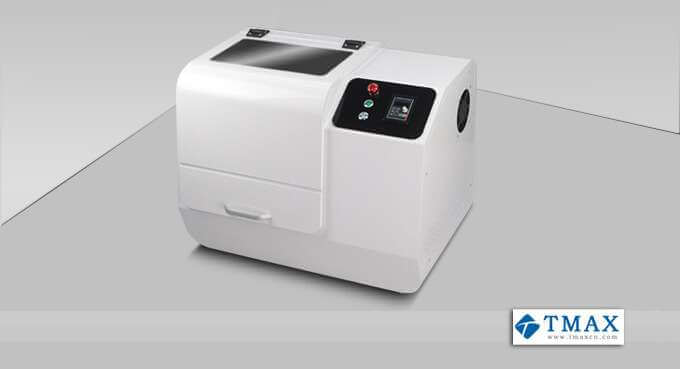

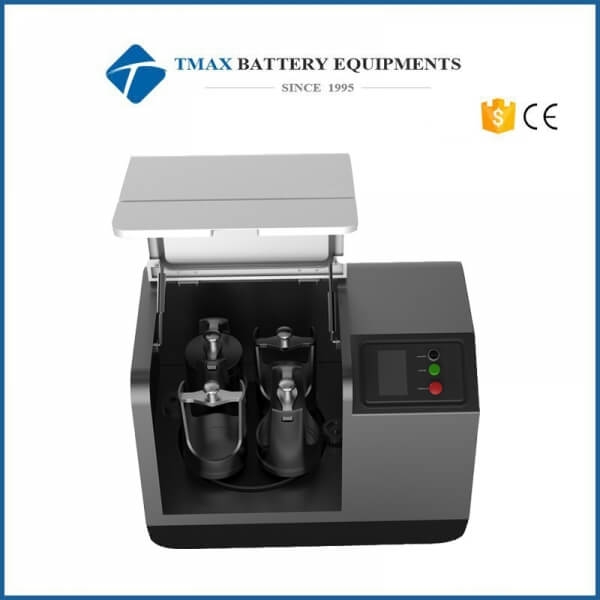

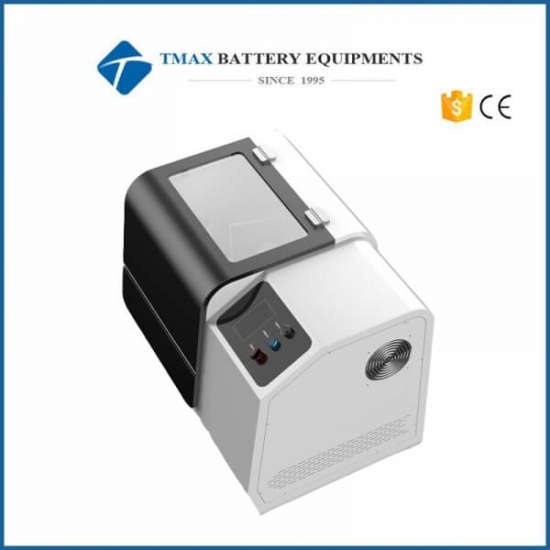

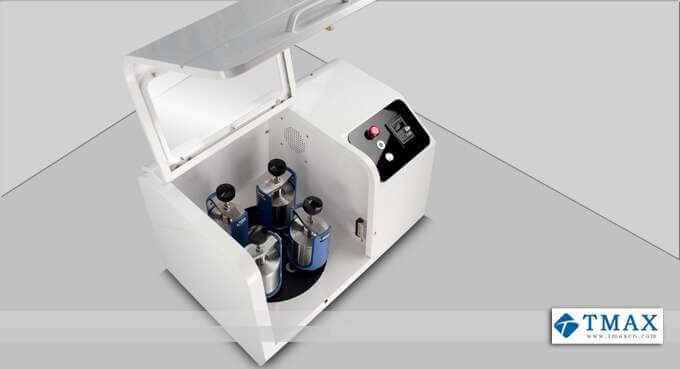

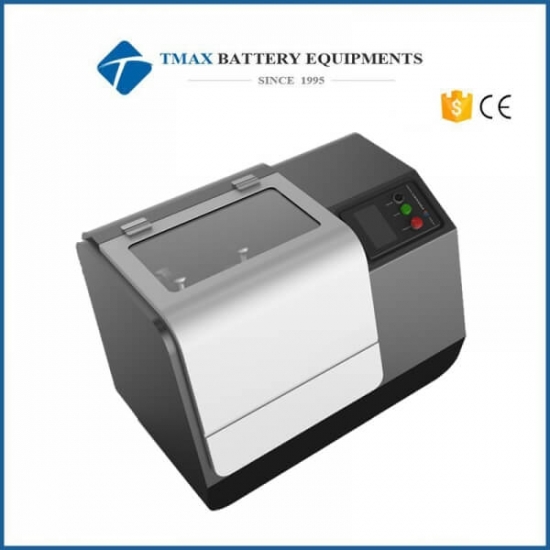

Planetary Ball Mill Machine with Automatic LED Lighting

  • Model Number:

    TMAX-FCS-01

  • Input Power:

    0.8KW

  • Dimension(L*W*H):

    750*500*500 mm

  • Max. Loading Capacity:

    It Can Be Customized

  • Net Weight:

    80KG

  • Compliance:

    CE Certified

  • Warranty:

    Two Year Limited Warranty With Lifetime Support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details


Planetary Ball Mill Machine with Automatic LED Lighting


Comminution according to the Planetary Principle

The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls. To achieve this, the grinding jar, containing the material to be ground and grinding balls, rotates around its own axis on a main disk whilst rotating rapidly in the opposite direction. At a certain speed, the centrifugal force causes the ground sample material and grinding balls to separate from the inner wall of the grinding jar. The grinding balls then cross the jar at high speed and further grind the sample material by impact against the opposite jar wall. In addition, impact between the balls themselves on the sample material adds to the size reduction process.


SPECIFICATIONS

Optimal for material type:

medium-hard, soft, brittle, tough, moist

Item No.:

TMAX-FCS-01

Max. feed size:

10mm

Final fineness:

<100nm

Min. sample quantity:

10ml

Max. sample quantity:

450ml

Rotational speed (disk):

50-400r/min

Rotational speed (jars):

100-800r/min

Transmission ratio:

1:-2

Transmission standard:

CE

Grinding modes:

16 modes programmable

Grinding tools:

grinding jars and grinding balls

Bi-direction grinding:

yes

Continuously grinding

00:01:00 - 99:59:59

Paused interval:

00:01:00 - 99:59:59

Emergency stop:

yes

Power off memory:

yes

Overload protection

Yes

Milling chamber lighting:

automatic LED lighting, 110V/220V, 18W

Number of milling samples:

4 simultaneously

Materials of the grinding jars:

SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC

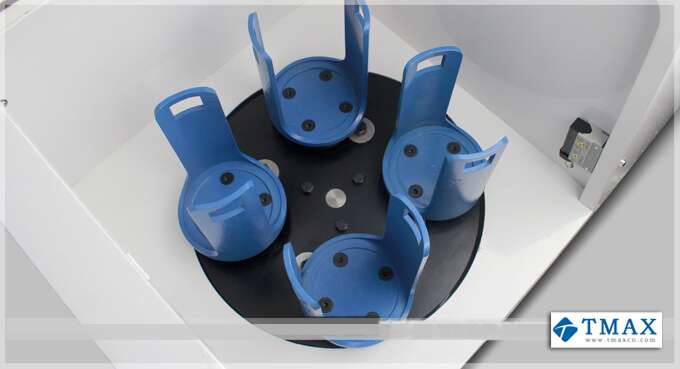

Number of working stations:

4

Ball mill type:

vertical

Compatible grinding jars:

100ml / 250ml

Materials of milling balls:

SS, agate, zirconia, alumina, nylon, PTFE  It Can Be Customized

Grinding ball diameter:

3/5/10/15/20mm

Compatibal ball weight

100-500g

Grinding process:

dry /wet grinding

Vacuum grinding:

yes

Low temperature grinding:

yes

Grinding in inert gas:

yes

Temperature detection:

yes ( special accessories)

Pressure detection:

yes ( special accessories)

Electrical details:

100-120V/200-240V AC ,50-60Hz, 750W

Plug types:

GB/EU/US/UK standard   It Can Be Customized

Net weight:

80kg

Dimensions (W x D x H):

750*500*500mm

Noise level:

60dB

IP rank:

IP60

Product standard:

CE

Patent:

design patent/ noise improve patent

Accessories:

LED lighting, user manual, warranty card

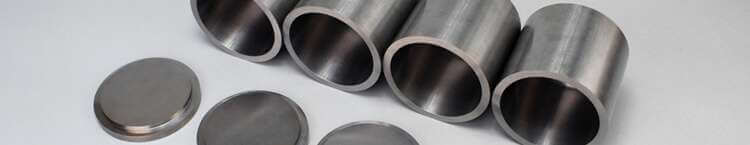

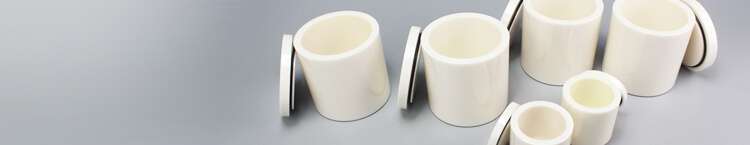

Material Data for Grinding Jars/Balls

Material

Main component

Density (g/cm3)

Abrasion resistance

Use for material to be ground

Agate

SiO2

2.65

Good

Soft to medium-hard samples

Sintered corundum

Al2O3

3.8

Fairly good

Medium-hard, fibrous samples

Silicon nitride

Si3N4

3.25

Excellent

Abrasive samples, iron-free milling

Zirconium oxide

ZrO2

5.7

Very good

Fibrous, abrasive samples
