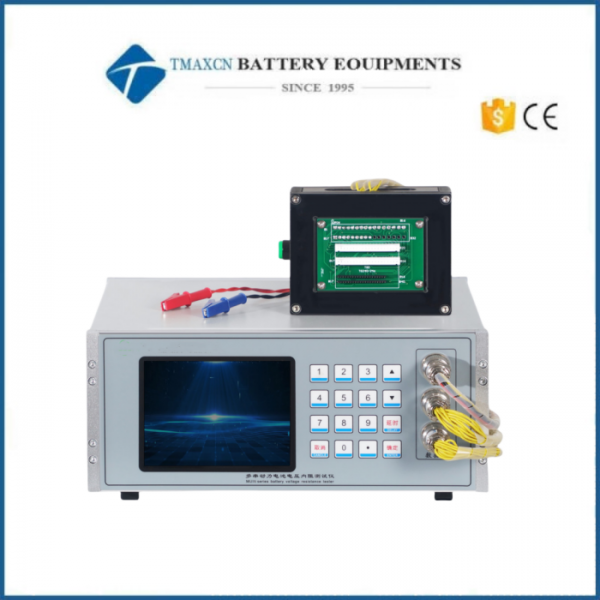

Multiseries Battery Voltage Resistance Tester
Model Number:
TMAX-TG240Dimension(L*W*H):
L132*W320*H260mmNet Weight:
5-6kgCompliance:
CE CertifiedWarranty:
One year limited warranty and lifetime supportPlace of Origin:
ChinaPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
30 days
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588

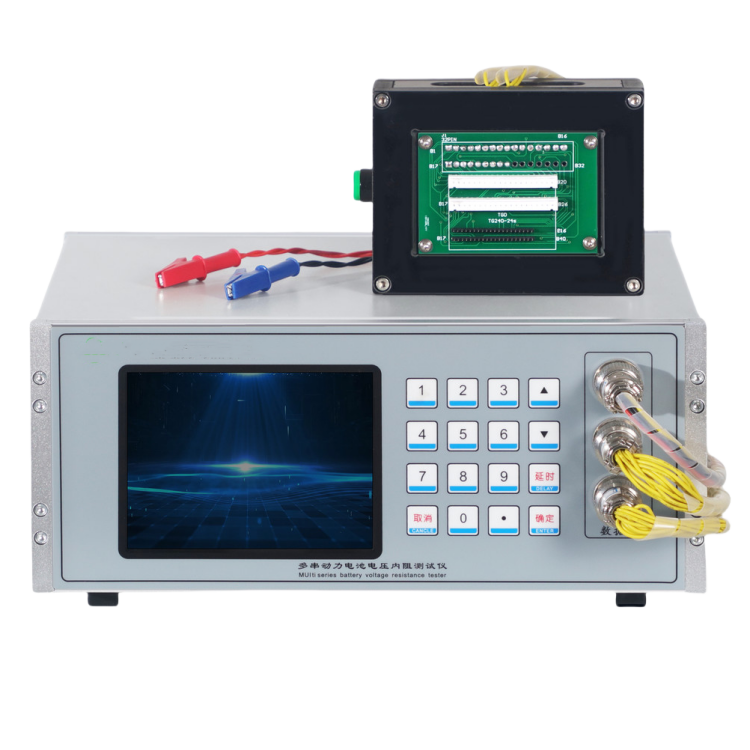

Multiseries Battery Voltage Resistance Tester
Ⅰ、Application:

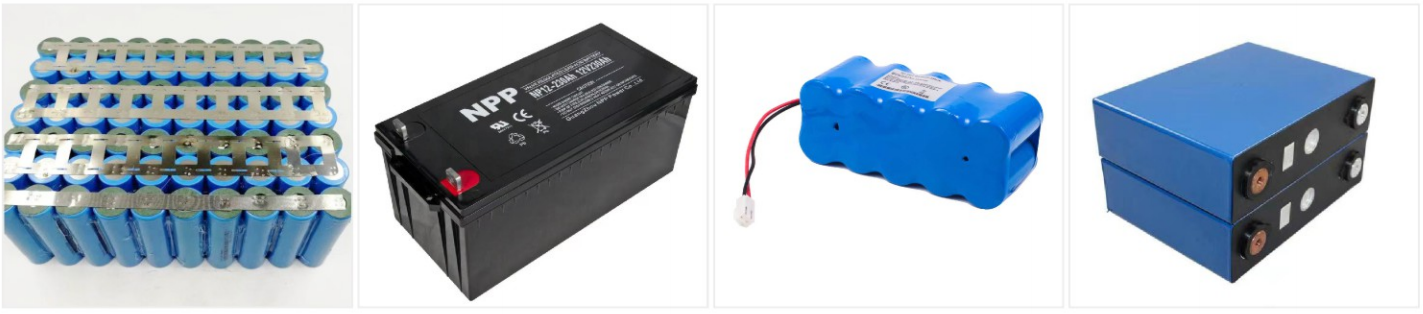

This device is suitable for rechecking whether the paired batteries are correct, detecting the voltage and internal resistance of each string of the battery pack, and confirming the consistency of the battery pack.
II、Product Features
1. By using the 4-line sampling method, it is possible to accurately measure the internal resistance values and pressure differences, effectively judging whether the battery cell combination is good.
2. Can communicate with the upper computer for data uploading.
3. Various operations such as saving, querying, and deleting data can be performed.
Ⅲ、Technical parameter
Product Name |
Multi-string internal resistance pressure difference tester |
Model No. |
TMAX-TG240 |
Machine size |
H:132mm、L:320mm、W:260mm |
Machine weight |
5-6KG |
Operating ambient temperature |
1-50℃ |
Input power supply |
AC220V±15% |
Voltage |
0-5.000V ,accuracy:1mV 5.00-100.00V,accuracy :1mV
|
Internal resistance |
0-50mΩ ,accuracy:0.01mΩ 0-10001mΩ ,accuracy:0.1mΩ |
