Working Voltage

110/220V AC selectable

Travelling Distance

0-60 mm Adjustable

Dipping/Pulling Speed

1-500 um/sec Programmable with accuracy within +/- 0.05%

Temperature Range

50-100°C

Controller

6" LCD color touch screen controller

Sample Holder

Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods

Solution Container

One 150mL beaker is included

Beaker Holder

The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.

Max. Sample Size

3"(L) x 2"(W)

Sample Weight

Less than 250g

Dipping/Pulling Motor

Stepping Motor

Oven

· Working Voltage: 110/220V AC selectable in Personalization

· Max. Power Consumption: 600W

· Temperature:   50-100°C controlled by digital controller with +/- 1°C accuracy.

· Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H)

· Inner Material: Stainless Steel

· Product Dimensions: 406mm(L) x 406mm(W) x 610mm(H)

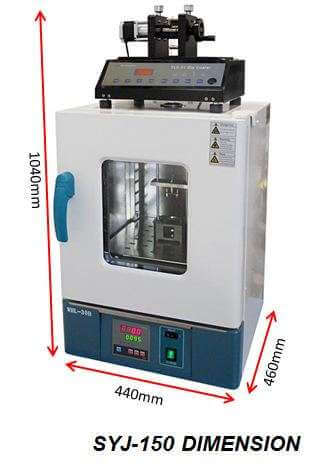

Product Dimensions

440mm(L) x 460mm(W) x 1040mm(H)

Compliance

CE Certified

Warranty

One year limited with lifetime support

Application Notes

· In order to get better film coating, the substrate shall be treated by plasma cleaner

· Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating

· Liquid solution is placed in the controlled temperature oven with +/-1°C tolerance from room temperature to 100°C. Please keep warm at least half hour after the temperature reach the set point on the digital temperature meter to ensure an equilibrium temperature distribution in the liquid solution

Shipping Weight

48 kg (150 lbs)

Shipping Dimensions

48"(L) x40"(W) x35"(H)
