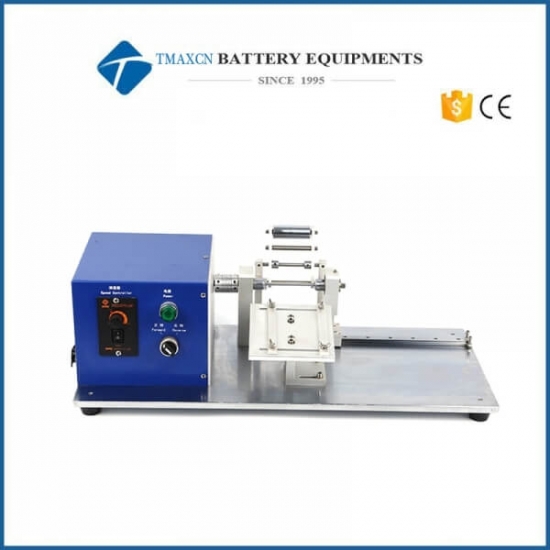

Manual Winder for Electrode Assembly of Winding Type Pouch Cell
Model Number:
TMAX-JR90Input Power:
25WDimension(L*W*H):
550*310*280mmCompliance:
CE CertifiedWarranty:
1 yearPlace of Origin:
Fujian, China (Mainland)MOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Manual Winder for Electrode Assembly of Winding Type Pouch Cell
Features
TMAX-JR90 is a CE Certified semi-automatic winder for winding electrode and separator together in the research of Li-ion pouch batteries and cylinder cell & cylindrical cell.
Specification
Working Voltage |
220VAC 50/60Hz |
Max. Power Consumption |
25W |
Winding Speed |
0-170 RPM Adjustable |
Winding Blade for pouch cells |
1. Dimensions: (20-90)mm(L) x (15-60)mm(W),
specially designed for winding pouch cells 2. The winding width depends on the width
of the winding blade.If other size is needed please contact us for customization |
Winding Shaft for cylinder cells |
1. Dimensions: 4mm(OD) x 65mm(L)
for 18650, 26650, 32650 cylinder battery core |
Warranty |
One year limited manufacturer warranty with lifetime
support. |
Dimensions of Machine |
L550mm*310mm*280mm |
Winding mode |
Switchable between clockwise and
counterclockwise |
Compliance |
CE Certified |
Net Weight |
25kg |
