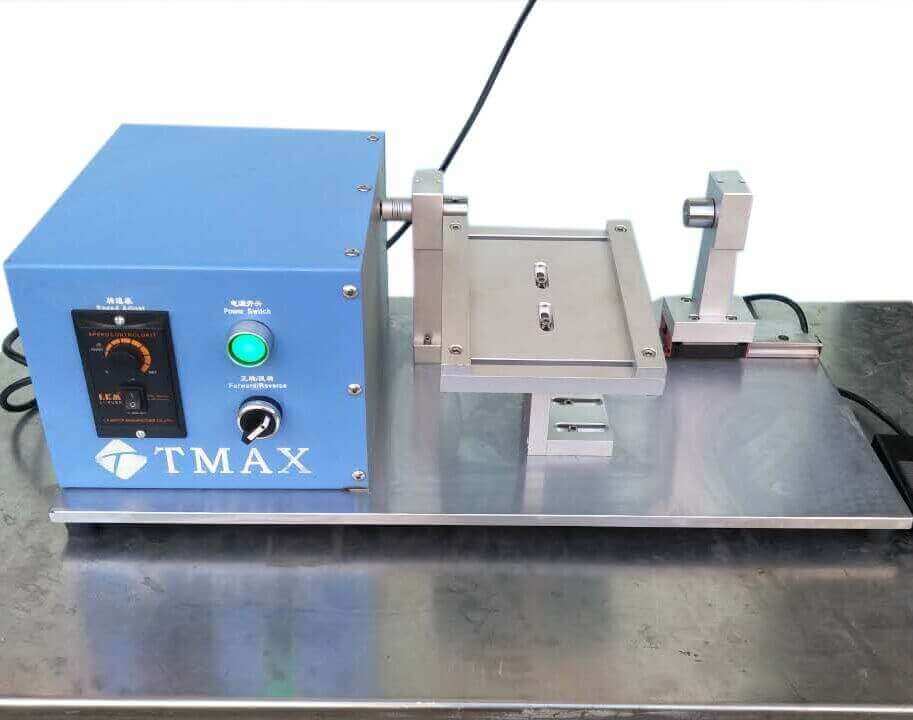

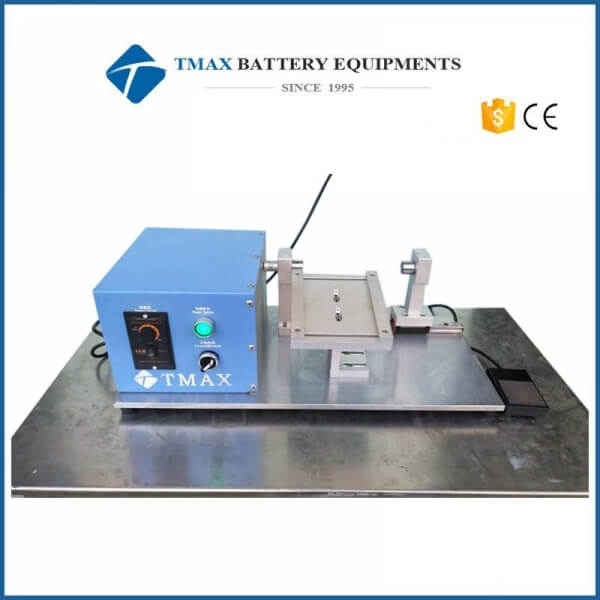

Manual Electrode Winding Machine For Pouch Cell Research
Model Number:
TMAX-MW005Type:
Electrode Winding MachineNet Weight:
40KgCompliance:
CE CertifiedWarranty:
2 Year Limited Warranty With Lifetime SupportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Pouch Cell Electrolyte Diffusion/Degassing ChamberNext:
Semi-Auto Battery Electrode Stacker Stacking Machine for Pouch Cell Electrodes
Manual Electrode Winding Machine for Pouch Cell Research
Model |
Electrode Winding Machine |
Working Voltage |
AC110V/220V, 50/60HZ |
Power |
50W |
Warranty |
Two Year limited warranty with lifetime support |
Winding Speed |
0 - 170 RPM Adjustable |

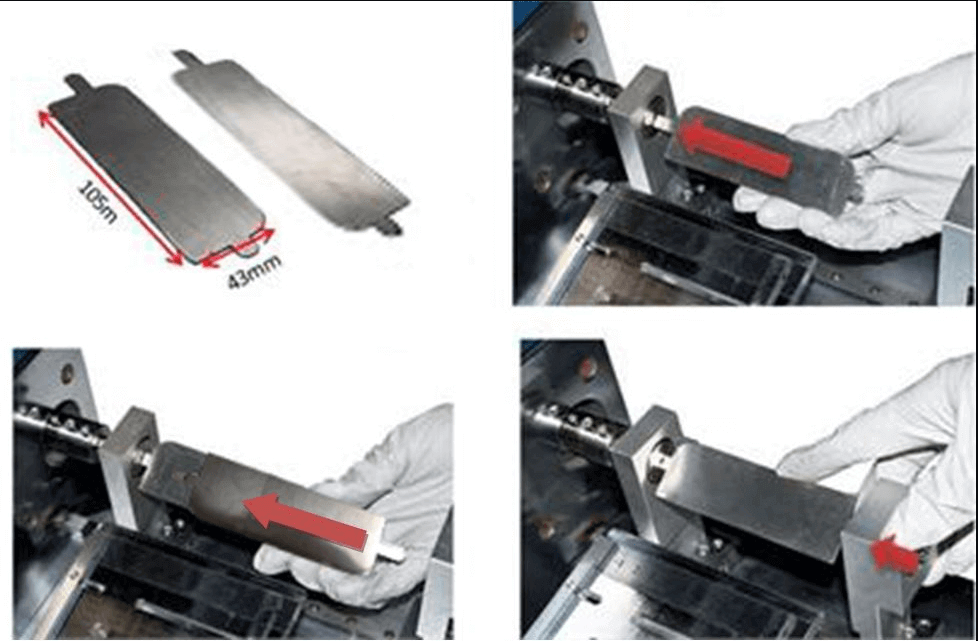

Winding
blade |
The winding width depends on
the width of the winding blade Customized square winding
blade according to battery model |
Winding Mode |
Switchable between clockwise and counterclockwise |
Output |
70-100EA/h, according to battery size and maunal |
Product Dimensions (L*W*H) |
380*320*300mm |
Net weight |
About 30kg |
Application Notes |
This machine can be used for
prismatic battery with square winding shaft, and you can also choose the
round winding shaft for cylinder cell core winding, We will supply with the suitable winding accessories according to your battery model |
