Manual Die Punching Cutter For Coin Cell Electrode
Model Number:
TMAX-CP60Dimension(L*W*H):
16, 19, And 20mm Precision DiesNet Weight:
10KGCompliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Semi-automatic Cylinder Battery Sealing MachineNext:
Powder Tablet Press Machine Die/Round Shape Dies

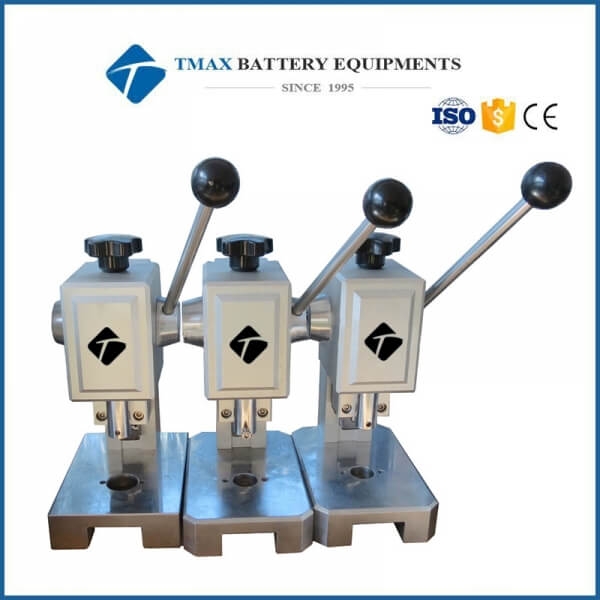

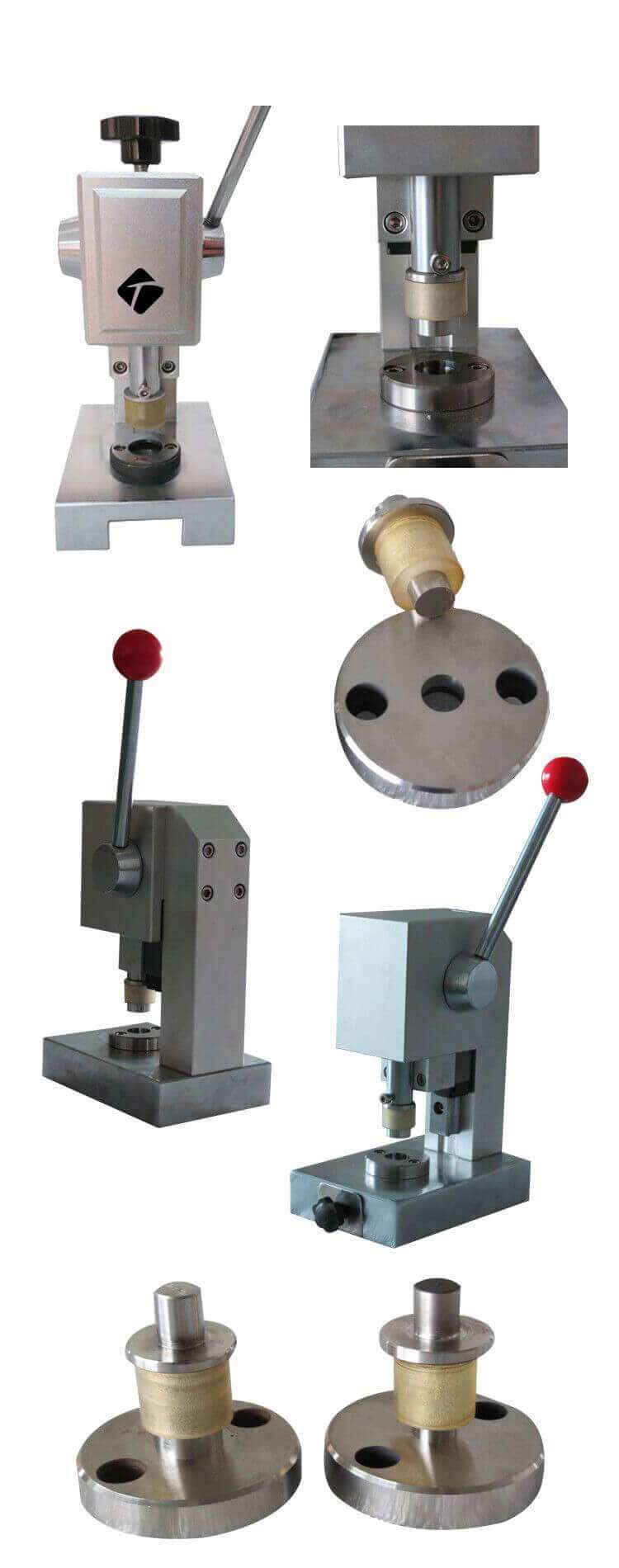

Manual Die Punching Cutter For Coin Cell Electrode
The Coin cell disc punching machine is used for coin cell electrode punching with
customized cutting die. It's operation is simple with light
weight, The resulting discs can be used as electrode/separator discs
of split test cell and coin cell for battery researches. We are dedicated to providing quality coin cell disc punching for you.
Machine model |
Disc cutter for coin cell electrode punch TMAX-CP60 |
Operating |
Manual |
Punching size |
Standard configuration : φ14mm punching die, φ8-24mm can be chosen |
Application Notes |
For make CR2016, CR2025 or/and CR2032 coin cell batteries, we will need at least three cutting dies: A 15mm (for negative side case, which is 16.5mm in diameter) B 19mm (for positive side case, which is 20mm in diameter) C 20 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 24mm
cutting die for either electrode or separator disc. |
Punching stroke |
25mm |
Punching thickness |
0.005-0.5mm electrode and separator |
Advantages |
Simple operation Light weight Can both cut electrode and separator |
Dimension |
110*150*235mm |
Weight |
About 6kg |
Warranty |
One Year limited warranty with lifetime support |
