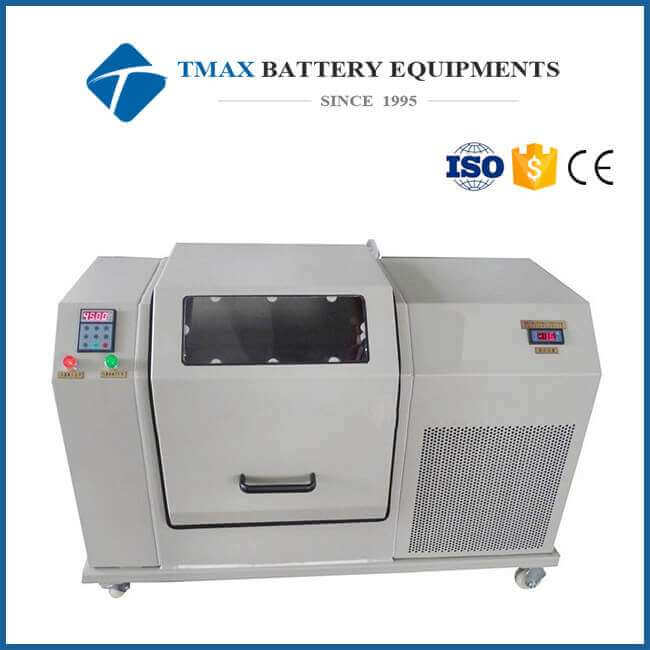

Low temperature planetary ball milling machine
Model Number:
TMAX--DSP-LT01Input Power:
4KWCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technicalMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Vertical Square Size Planetary Ball Mill MachineNext:
Laboratory High Speed Vibrating Ball Mill Machine for Lithium Battery R&D
Low temperature planetary ball milling machine
Power |
220V 50HZ 4KW |
Display |
LED display, and can display ball mill speed |
Transmission |
Gear transmission |
Milling to achieve the lowest temperature environment |
-20 ° C |
Low temperature control accuracy |
±1 ° C |
Way of working |
Two or four tank work simultaneously |
Max sample loading capacity |
Two-thirds of the milling tank volume |
Abrasive way |
Milling under dry or wet Stainless steel vacuum tank can milling under inflate
or vacuum conditions Stainless steel vacuum sleeve, you can put other common
cans (for example: agate, zirconia, PTFE, etc.) trap, so that in agate,
zirconia, PTFE, etc. jar, milling under inflated or vacuum conditions |
Feed size |
Soil material ≤10mm, other material ≤3mm |
Discharge size |
Mix 0.1um |
Speed ratio |
1:2 |
Broader market speed (milling tank speed) |
00-530 Rev / min |
Milling tank rotation speed |
00-265 Rev / min |
Broader market speed |
Frequency variable speed, programmable control |
Control method |
With timing, automatic shutdown. Can be set automatic reversing Can be set intermittent rotation |
Intelligent control |
Limit switch is mounted, with open lid power off, stop turning the function |
Max continuous working time (Full load) |
72 hours |
Can be equipped with ordinary milling tanks model (can be equipped with four such tanks) |
250ML 500ML 100ML |
Can be equipped with stainless steel vacuum ball
milling tanks (can be equipped with four such tanks) |
250ML 500ML |
Can be equipped with stainless steel vacuum models (can be equipped with four such tanks) |
250ML 500ML |
