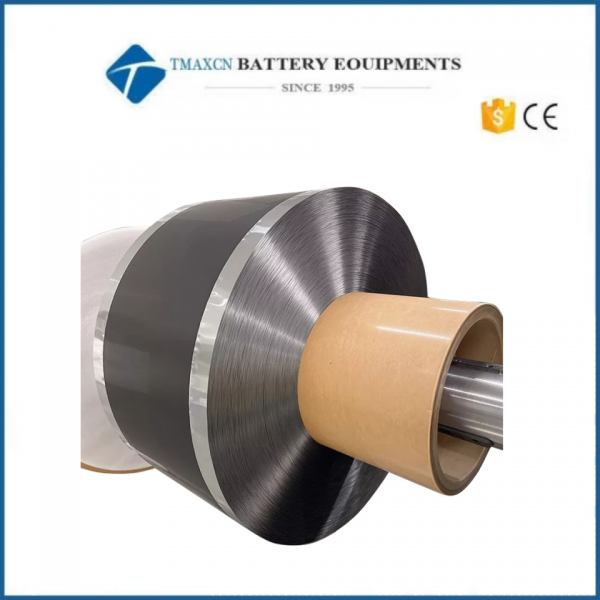

Lithium ion Battery Cathode NMC 532/622/811 Electrode for Battery Production Line
Model Number:
TMAX-Electrode-3Dimension(L*W*H):
CustomizedCompliance:
CE CertifiedWarranty:
1 yearShipping Port:
XiamenMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
15 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
LFP, LMO, LCO, NMC Battery Anode Cathode Reel Electrode for Battery Production LineNext:
Lithium Ion Battery Cathode and Anode LFP/LMO/NMC/LTO/Graphite Electrodes
Lithium ion Battery Cathode NMC 532/622/811 Electrode for Battery Production Line
TMAX could supply different kinds of lithium ion battery electrodes, including Aluminum foil coating LFP, LMO, LCO, NMC, copper foil coating graphite. Also can customize the cathode and anode electrodes as your demands.
Ⅱ、Product Parameters:
Material systems |
LCO |
NCM |
|
LMO |
|
LFP |
|
Graphite |
Formulation |
Specific Capacity @ C/10 (mAh/g) |
% wt |
Cathode Active Material |
190 |
96 |
PVDF |
0 |
2 |
Al foil thickness |
12 |
µm |
Coating width |
235 |
mm |
Pattern coating length |
517 |
mm |
Uncoated length |
20 |
mm |
Density |
3.56 |
g/cm3 |
Porosity |
25 |
% |
Mass loading |
23.5 |
mg/cm² |
Thickness |
154 ± 1 |
µm |
Formulation |
Specific Capacity @ C/10 (mAh/g) |
% wt |
Anode Active Material |
355 |
95.2 |
C45 |
0 |
1.5 |
Cu foil thickness |
8 |
µm |
Coating width |
230 |
mm |
Pattern coating length |
520 |
mm |
Uncoated length (uncoated foil gap between patterns) |
20 |
mm |
Density |
1.73 |
g/cm3 |
Porosity |
30 |
% |
Mass loading |
13.59 |
mm |
Thickness |
175±1 |
µm |
Ⅲ、Material Features:
Characteristics of lithium iron phosphate
Characteristics of lithium cobalate
Characteristics of Ternary material
Ⅳ、Product Display：
Ⅴ、Production Machine:
Ⅵ、Package:
