Lithium Battery Graphene For LiFePO4 Battery
Model Number:
TMAX-KNG-LBCompliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Industrial Grade Graphene for Conductive coatingsNext:
Graphene Oxide Powder For Graphene Battery Raw Material
Product Details

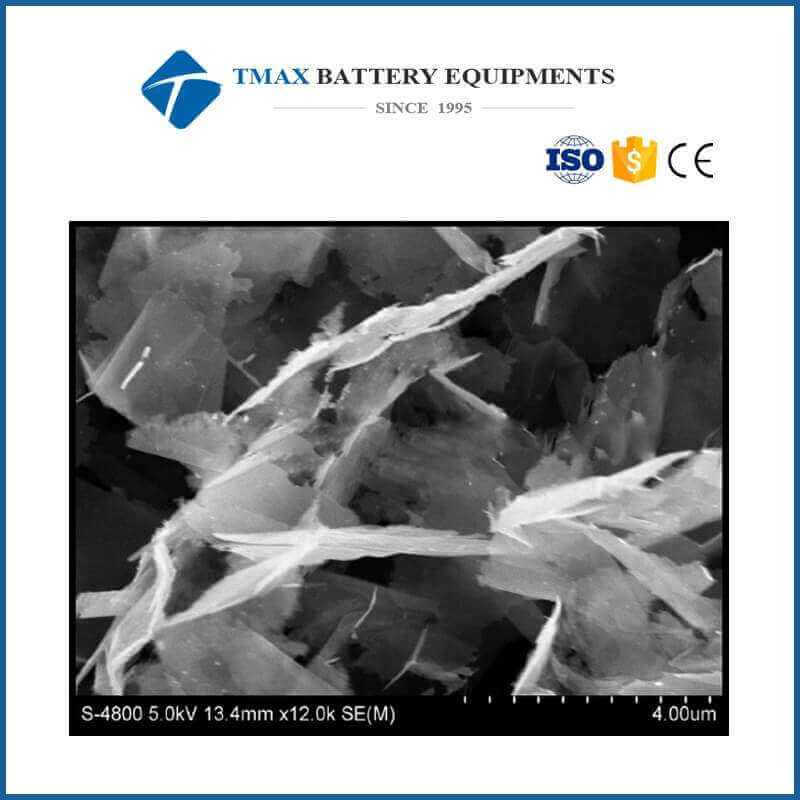

Lithium Battery Graphene For LiFePO4 Battery
Specifications
MODEL |
Conductive agent content |
Dispersant content |
Stabilizer Content |
D50 (μm) |
Viscosity (mPa.s) |
TMAX-KNG -LB102-1 |
5% graphene |
0.25% |
0 |
9 |
10000 |
TMAX-KNG -LB102-2 |
5% graphene |
0.25% |
1.5% |
9 |
8000 |
TMAX-KNG -LB102-3 |
4.3% Composite materials |
0.25% |
1.5% |
9 |
6000 |
Impurity content
Testing Products |
Iron content |
Molybdenum content |
Chromium content |
Calcium content |
Copper conten |
Sulfur content |
Graphene slurry |
<10ppm |
<0.1ppm |
<0.1ppm |
<10ppm |
<0.1ppm |
<100ppm |
Recommended dosage
Electrode active material type |
Improve capacity purpose |
Enhanced magnification purpose |
LFP |
0.5-1.5% |
1.0-2.0% |
LCO |
0.5-1.0% |
1.0-2.0% |
NCM |
0.5-1.5% |
1.0-2.0% |
Recommendation: Graphene and carbon nanotubes or with the use of conductive carbon black
