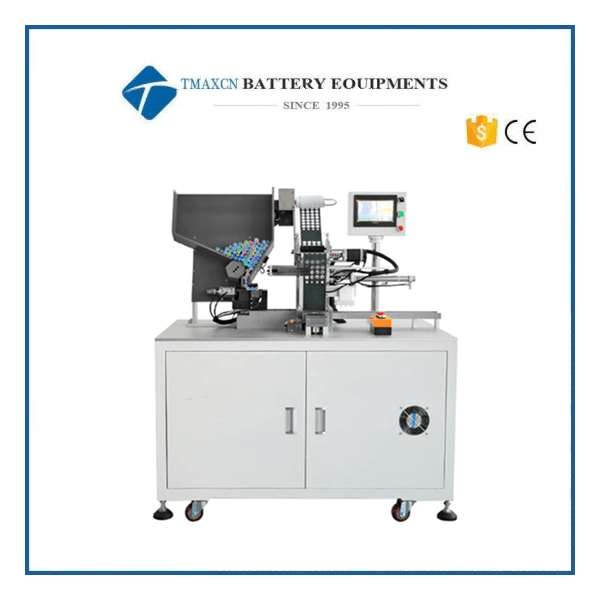

Lithium Battery Automatic Cylindrical Battery Insulation Paper Sticking/Pasting Machine

Model Number:
TMAX-MD400
Type:
Automatic
Input Power:
1500W
Dimension(L*W*H):
1000x700x1630mm
Compliance:
CE Certified
Warranty:
One year limited with lifetime support
Place of Origin:
China
Shipping Port:
Xiamen port
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Next:

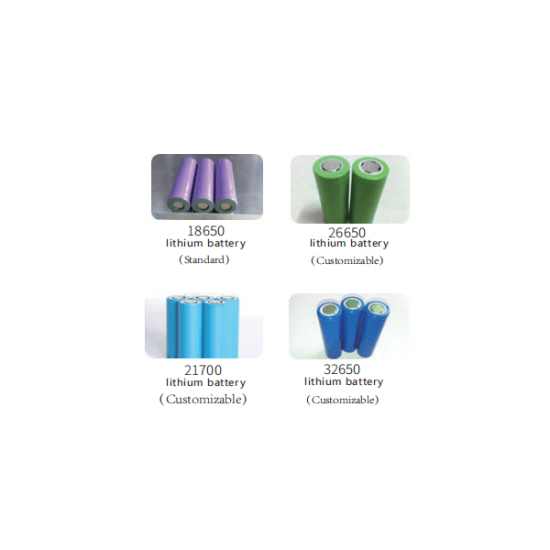

Automatic 18650/26650/32650 Cylindrical lithium Battery labling Insulation Paper Sticking/Pasting Machine

Product Details

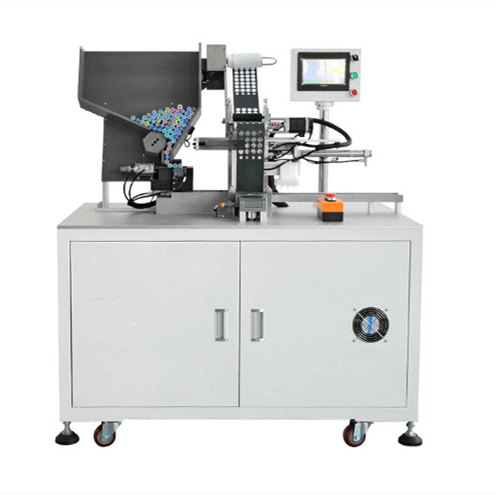

Lithium Battery Automatic Cylindrical Battery Insulation Paper Sticking/Pasting Machine

Features:

1. Stamping cutting die non cohesive gel.

2. Tight fitting No influence on automatic spot welding.

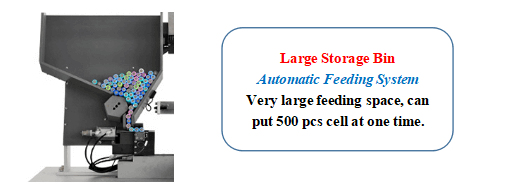

3. Hopper put in 500pcs High production efficiency easy to operate.

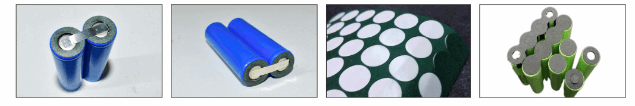

4.Stick Barley paper 4800pcs/Hour high stability.

Specifications:

Voltage/Power	Single-phase 220V,50Hz, 1500W
Air Pressure	0.4-0.8Mpa

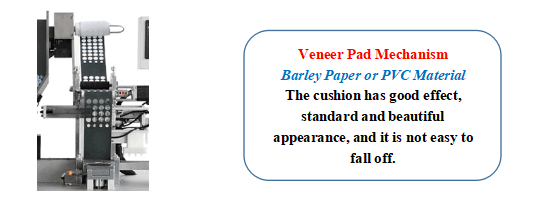

Material Speciﬁcation	Barley paper
Maximum Breadth	100mm paper Total thickness:0.3mm
Charging Pattern	Put in Batteries disposable put in 500PCS
Production Efficiency	4800pcs/hour, single pad 4pcs
Size(L xW x H)	1000x700x1630mm
Surfact Mat Material	Barley paper or PVC

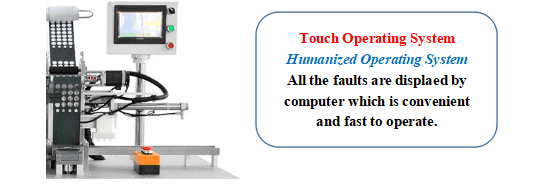

Control Device	7 inck Touch Screen PLC programming unit and stepper motor

Equipment Configuration:

Serial No.	Spare Parts	Brand
1	Air Cylinder	SMC、CKD
2	Solenoid Valve	SMC、Airtac
3	Linear Guide Rail	TPI
4	Electric Relay	OMRON
5	PLC	TouchWin
6	Inductorium	OMRON、SUNX
7	Stepper Motor	Lesev/Inovance
8	Servo Motor	Fuji/Panasonic
9	Support Base	NSK
10	Lead Screw	HIWIN
