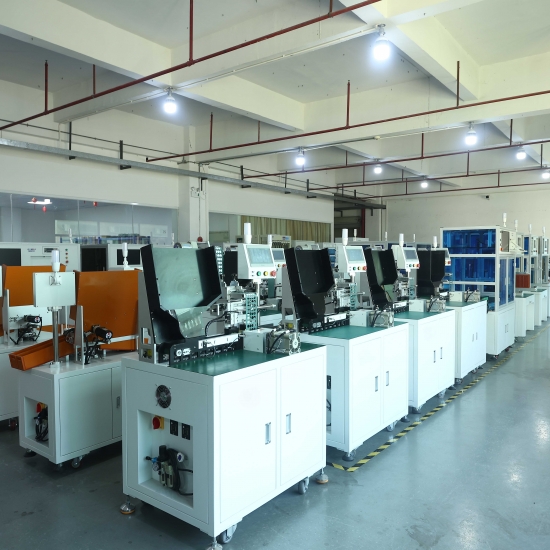

Lifepo4 Battery Pack Assembly Equipment Plant

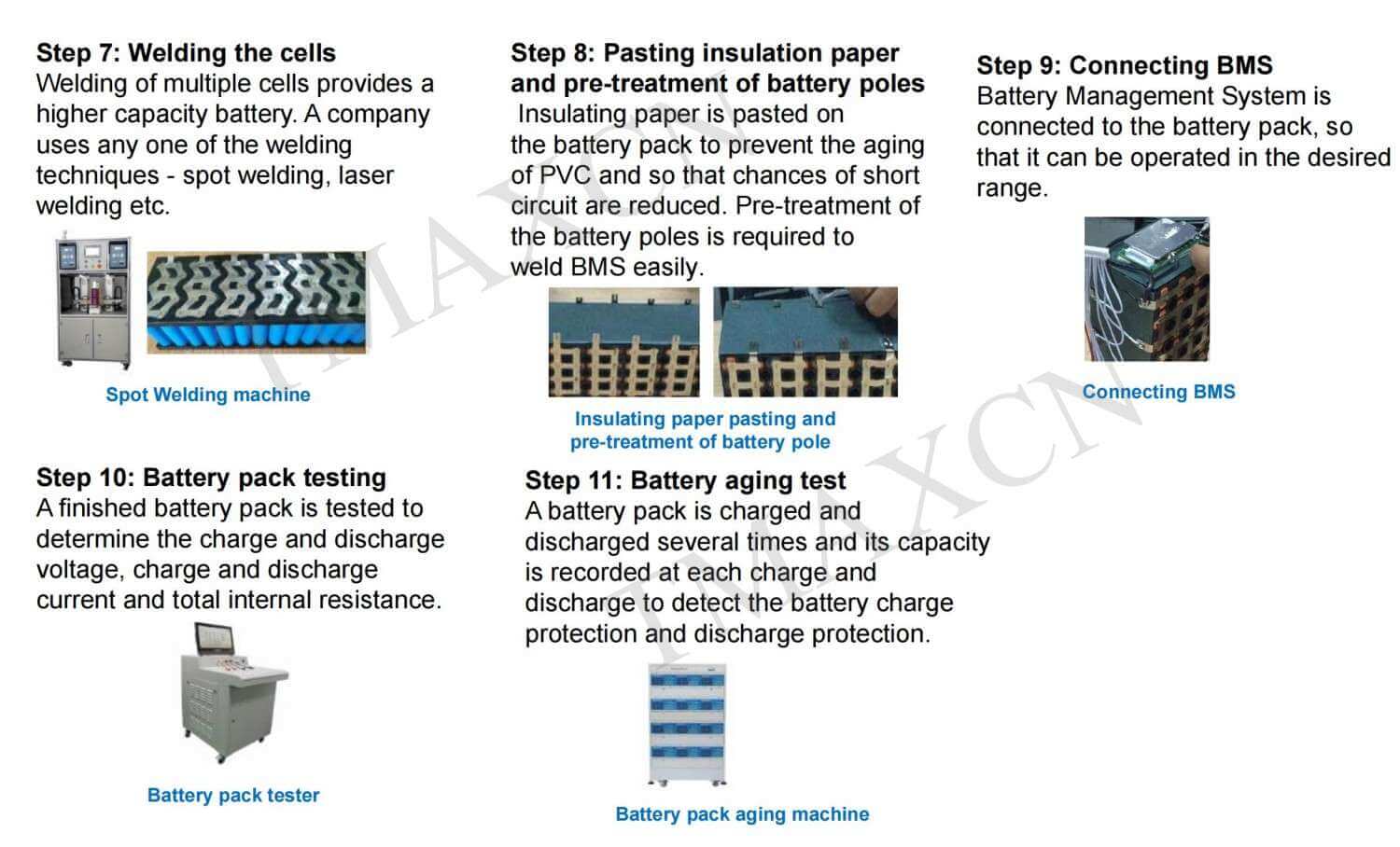

Detailed flowchart for Li-ion battery pack assembling with Cylindrical cells

Important process:

1. Detection of single cell:

The lithium battery sorter can be set to multiple gears through the upper and lower limits of internal resistance. The resistance is adjustable, and the adjustment mode is diversified and fast. It is equipped with imported voltage internal resistance tester, integrated PC, high-end drive, all electric motor configuration; Process detection signal comprehensive and bid farewell to a single industrial machine.

4.Battery Polarity Detection

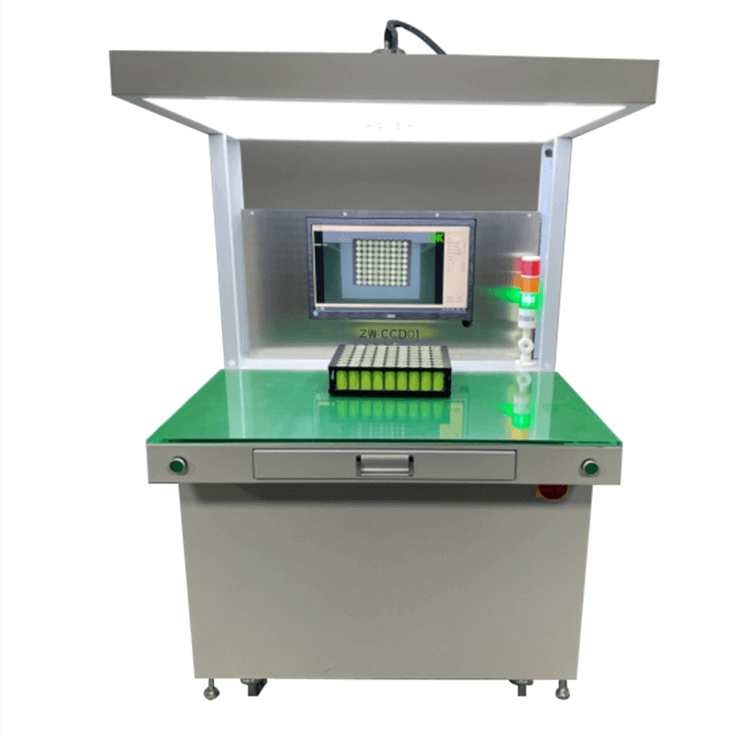

CCD Tester:

It has higher efficiency and accuracy in detecting whether the batteries are correctly placed in series-parallel positive and negative electrodes and in detecting products with defects in spot welding.

5.Spot Welding

Spot Welding Machine:

This equipment is mainly used for welding the battery and nickel strip in the cylindrical battery assembly. The welding pulse width is adjustable, the welding spatter is small, and the welding spot is not discolored. It has the function of two-stage current detection and comparison, sound and light alarm for abnormal current, effectively preventing the occurrence of false welding and false welding. It has the function of fault self diagnosis, displaying the corresponding fault points and facilitating maintenance.

6. BMS Testing

BMS Tester:

The multifunctional protection board tester is mainly used to test whether the functional indexes of the power battery protection board are within the parameter range, so as to provide a set of testing standards for the staff.

7.Comprehensive Function Testing

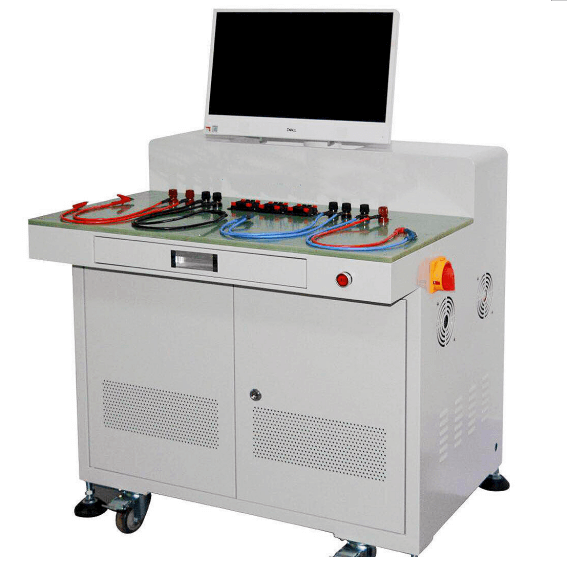

Battery Pack Comprehensive Function Tester:

The main test items include: open circuit voltage, AC internal resistance, discharge test, discharge over-current test, short circuit protection test, charging test and charging protection test.

8.PVC Heat Shrinking

PVC Heat Shrinking Machine is used for shriking the PVC of battery pack.

9.Code Printing

Ink Jet Printer :

It is for code printing on the battery pack.

10. Charging&Discharging

Battery Pack Aging Machine:

The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries.
