Li-ion Battery Manual Winding Machine
Model Number:
TMAX-JRJ-01Input Power:
25WDimension(L*W*H):
1200*600*1000mmCompliance:
CE CertifiedWarranty:
1 yearPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Semi-automatic Electric Stacker For Pouch Cell Lab ResearchNext:
Automatic Layer by Layer Stacking Machine for Pouch Cell Electrode - MSK-111A-E

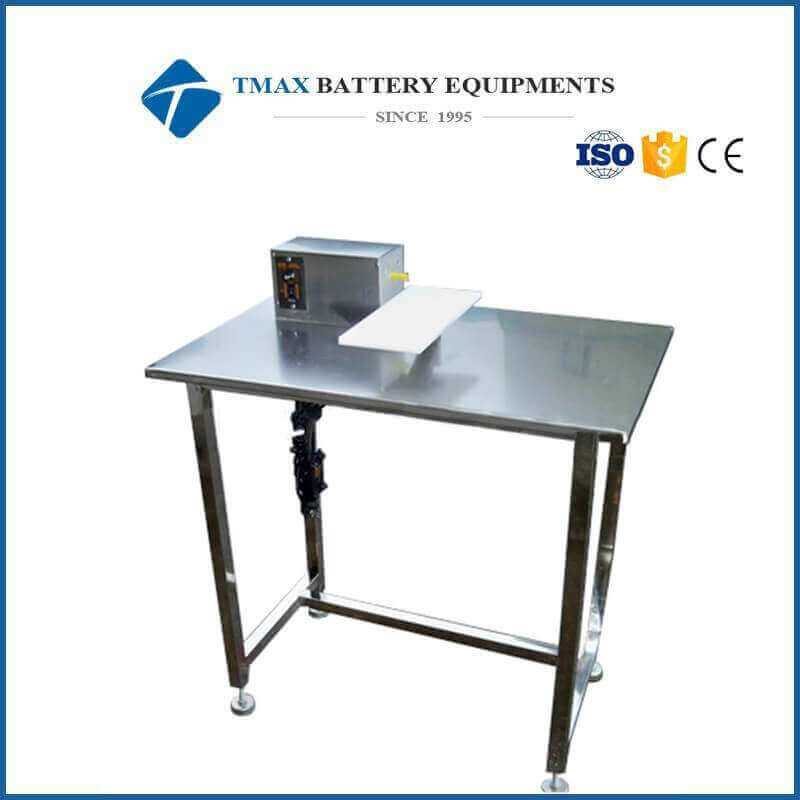

Li-ion Battery Manual Winding Machine
1 TMAX-JRJ-01 Manual
Winding Machine is used for winding battery anode/cathode electrodes with
separator together in the research of Li-ion battery cells. It can be used for
both cylinder battery or prismatic battery by changing winding blade.
2 This
manual winding machine is supplied with stainless steel table
for immediately use.
Model |
Manual Winding Machine TMAX-JRJ-01 |
Working Voltage |
AC110V/220V, 50/60HZ |
Power |
25W |
Warranty |
·One Year limited warranty with lifetime support |
Winding Speed |
12 - 140 RPM Adjustable |
Winding
blade |
The winding width depends on the width of
the winding blade Customized square winding blade according
to battery model |
Winding Mode |
Switchable between clockwise and counterclockwise |
Output |
70-100EA/h, according to battery size and maunal |
Product Dimensions (L*W*H) |
1200*600*1000mm |
Net weight |
About 30kg |
Application Notes |
This machine can be used for prismatic
battery with square winding shaft, and you can also choose the round
winding shaft for cylinder cell core winding, We will supply with the suitable winding accessories according to your battery model |
