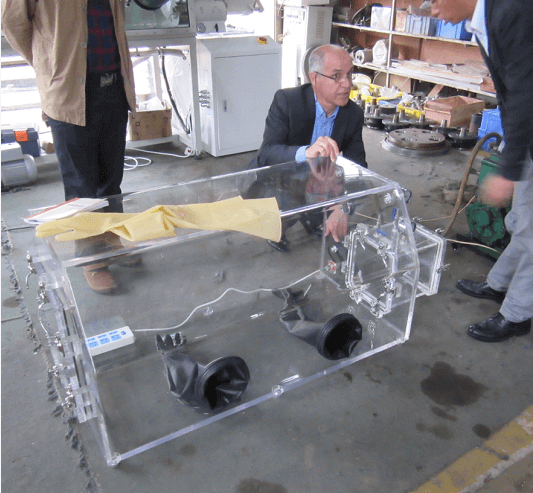

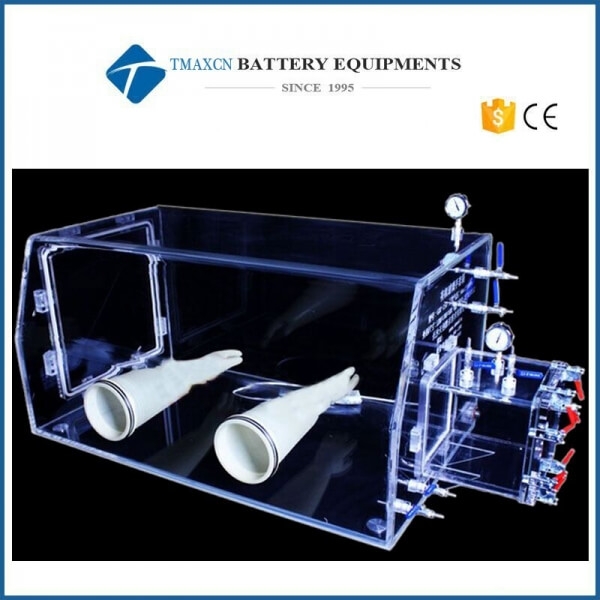

Laboratory Protection Vacuum Transparent Glove Box
Model Number:
TMAX-Glove-Box6Dimension(L*W*H):
1000mm*500mm*500mmCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Compact Stainless Steel Vacuum Glove Box with Vacuum Flange & GaugeNext:
Stainless Steel Vacuum Glove Box with H2O & O2 Purification System
Applications of Transparent Vacuum Glove Box
Some materials are very sensitive to water and oxygen when doing chemical experiment.So it is hard to finish the research. Although vacuum vessel can satisfy anaerobic and vacuum degree, it is not convenient for operating the procedure. Vacuum glove box solve the environment and operation problem.So it is widely used in chemistry, biology and biochemistry, especially in catalyst and metal organics.
Main
Parameters of Transparent Glove Box |
||||||
No. |
Model
No. |
Box Size |
Material |
Glass
Thickness |
Size of
Transition Cabinet |
Remarks |
1 |
GBT-10A |
740*450*500 |
Organic
Glass |
10 |
No
Transition Cabinet |
Isolated
from dust, no vacuum |
2 |
GBT-15A |
740*450*500 |
15 |
240*240*240 |
Slight
vacuum can be pumped, water or oxygen removal system is for option. |
|
3 |
GBT-30A |
740*450*500 |
30 |
240*240*240 |
Pump
vacuum to -0.1MPA, can be replaced with water and oxygen removal |
|
4 |
GBT-10B |
1000*500*500 |
10 |
No
Transition Cabinet |
Isolated
from dust, no vacuum |
|
5 |
GBT-15B |
1000*500*500 |
15 |
240*240*240 |
Slight
vacuum can be pumped, water or oxygen removal system is for option. |
|
6 |
GBT-30B |
1000*500*500 |
30 |
240*240*240 |
Pump
vacuum to -0.1MPA, can be replaced with water and oxygen removal |
|
7 |
GBT-10C |
1200*600*600 |
10 |
No
Transition Cabinet |
Isolated
from dust, no vacuum |
|
8 |
GBT-15C |
1200*600*600 |
15 |
240*240*240 |
Slight
vacuum can be pumped, water or oxygen removal system is for option. |
|
9 |
GBT-30C |
1200*600*600 |
30 |
240*240*240 |
Pump
vacuum to -0.1MPA, can be replaced with water and oxygen removal |
|
10 |
GBT-10D |
1200*800*700 |
10 |
No
Transition Cabinet |
Isolated
from dust, no vacuum |
|
11 |
GBT-15D |
1200*800*700 |
15 |
240*240*240 |
Slight
vacuum can be pumped, water or oxygen removal system is for option. |
|
12 |
GBT-30D |
1200*800*700 |
30 |
240*240*240 |
Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal |
|
