Power

• 110V or 220V AC switchable for worldwide use
• High torque 110VDC motor (70W Max.)

Speed range

Position Thickness & accuracy

• Cutting thickness is controlled by digital micrometer with accuracy of 0.003mm
• The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm.
• Thinnest cutting thickness is 0.35mm for most materials

Cutting Width

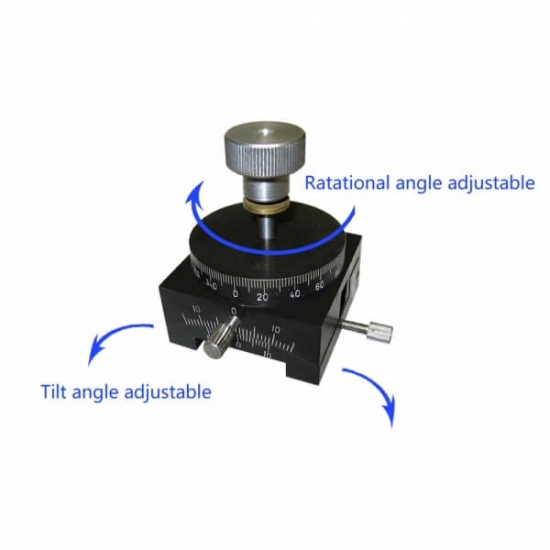

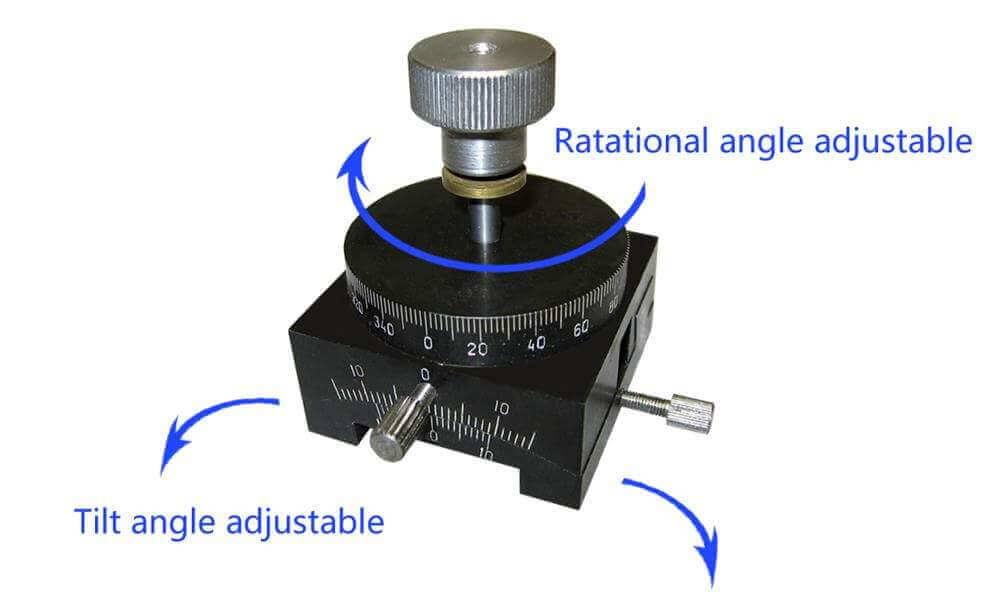

Sample holder

Two angle adjustable sample holder is included, please click picture below for the details

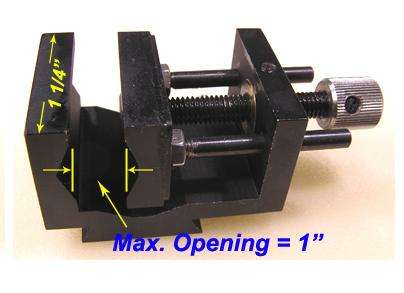

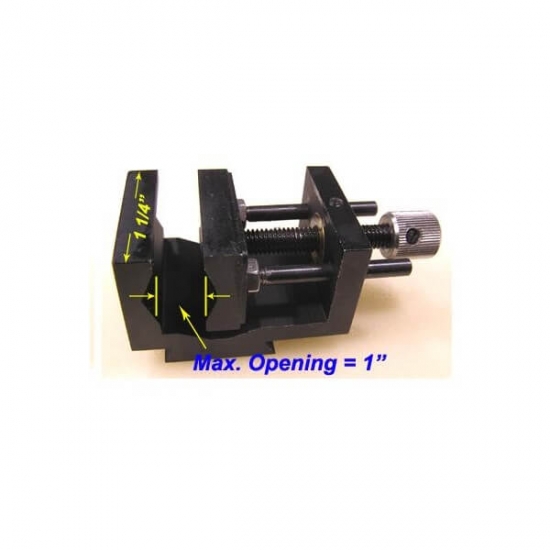

Mini-vise

Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max.

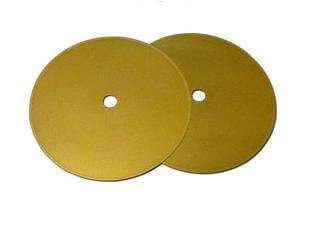

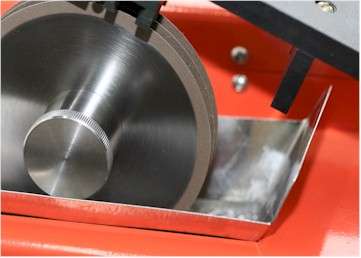

Cutting Blades

• Max 6" diameter blade (it can also adapt 3" and 4" Dia. cutting blade )
• Max cutting depth is 50mm.
• Three pcs total 6" cutting blades are included for cutting various materials:
• 6" Dia x 0.5 mm t x0.5" Arbor Impregnated Diamond Cutting Blade
• 6" x 0.5mm t x 0.5" Arbor Abrasive SiC Blade for Cutting Non-ferrous Metals
• 6" x 0.5mm t x 0.5" Arbor Abrasive Al2O3 Blade for Cutting Ferrous Metals

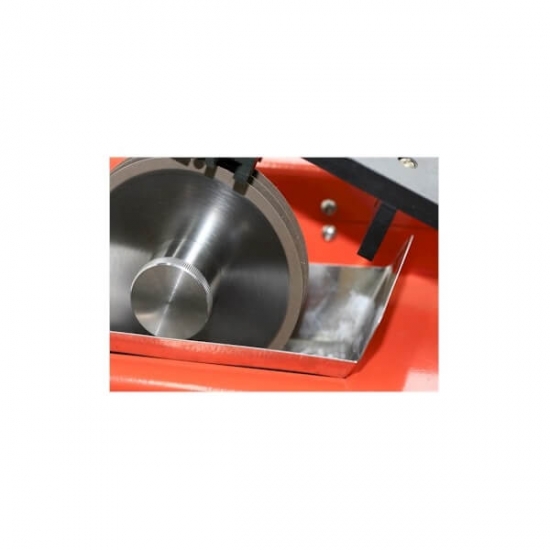

   One plastic water-proof box is included to protect water from splashing during cutting

• Complete accessories are included (see standard list below)

Warranty & Compliance

• One year limited manufacturer warranty with lifetime support.
• Rusting and damage due to improper storage condition or maintenance are not covered by warranty.

Certification

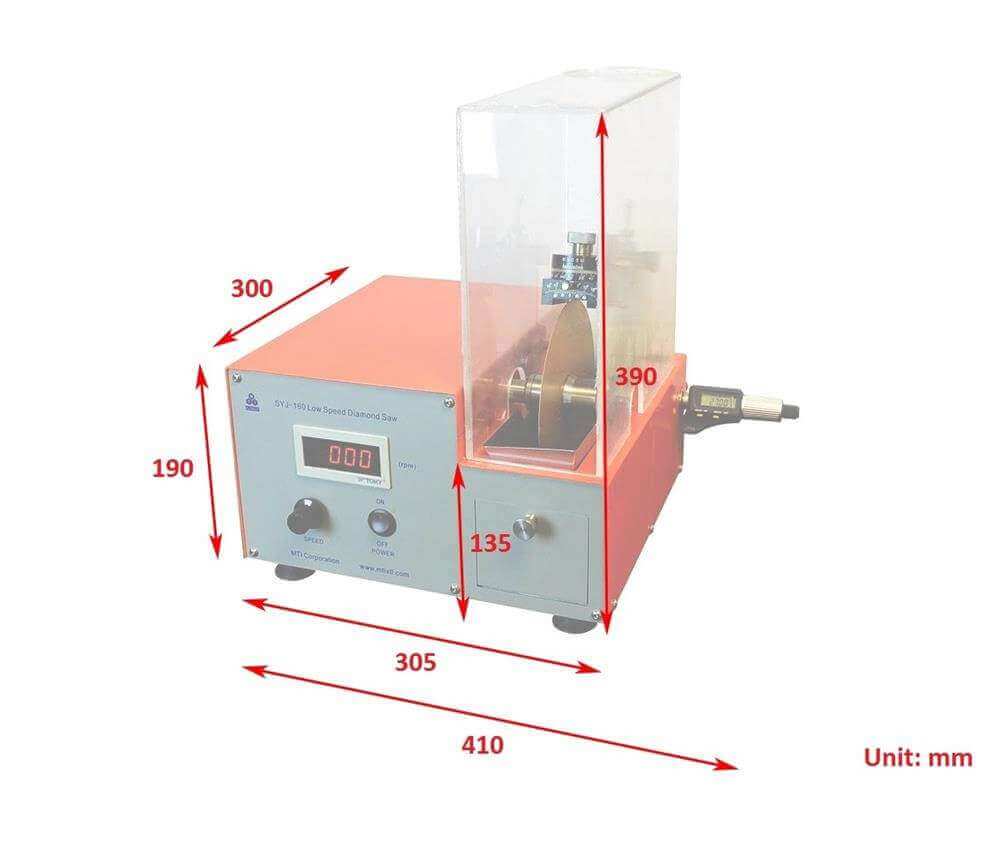

Package dimension

Accessory

Balance Weight

Shipping weight:
