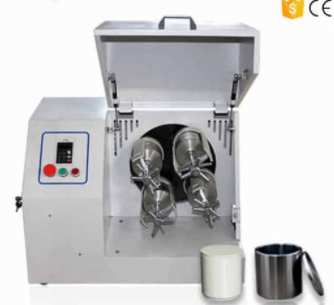

Laboratory Compact Lab Planetary Ball Mill (50-5000 mL Jars) for Li-ion Battery
Model Number:
TMAX-DSP-LBPBM06Input Power:
750WDimension(L*W*H):
350x400x400mmNet Weight:
220 LbCompliance:
CE CertifiedWarranty:
2 Year Limited Warranty With Lifetime SupportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab Pouch Cell Vacuum Sealing Machine for Battery Pre-Sealing in Glove BoxNext:
Roll To Roll Electrode Heat Calender For Pouch Cell Research
Compact Lab Planetary Ball Mill (50-5000 mL Jars) for Li-ion Battery
Features
Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.
Specifications
Model |
Capacity |
Specification of milling tank |
XQM-0.2 |
0.2L |
50ml |
XQM-0.4 |
0.4L |
50ml-100ml |
XQM-1 |
1L |
50ml-250ml |
XQM-2 |
2L |
50ml-500ml |
XQM-4 |
4L |
250ml-1L |
XQM-6 |
6L |
lL-1.5L |
XQM-8 |
8L |
1L-2L |
XQM-10 |
10L |
1L-2.5L |
XQM-12 |
12L |
1L-3L |
XQM-20 |
20L |
2L-5L |
XQM-40 |
40L |
5L-10L |
XQM-60 |
60L |
10L-15L |
XQM-100 |
100L |
20L-25L |
Model |
Planetary Ball Mill Machine |
Grinding tank volume (L) |
According to requirements
|
Grinding tank material |
|
Maximum loading per tank |
Material and grinding medium does not exceed two-thirds of the volume |
Feeding material size |
Soil material ≤ 10 mm, other materials ≤ 3 mm |
Discharge material size |
Min 0.1um |
Rotating speed |
Revolution 335r / min, Rotation 670r / min |
Speed ratio (revolution: rotation) |
1:2 |
Speed mode |
Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse |
Transfer method |
Gear drive |
Working Voltage |
220V |
Way of working |
Two or four tanks work at the same time |
Maximum continuous operating time |
72hours |
Machine Size |
750*470*564mm |
Programmable control (electronic monitoring) |
Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation. |
Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
Selection
Planetary Ball Mill |
|||
0.2L-200L total volume optional |
Pictures |
Name |
Line |
|
Rolling Jar Mill |
||
|
Vertical Planetary Ball Mill(Square ) |
https://www.tmaxcn.com/vertical-square-size-planetary-ball-mill-machine_p631.html |
|
|
Horizontal Planetary Ball Mill |
https://www.tmaxcn.com/laboratory-horizontal-planetary-ball-mill-for-powder-making_p1251.html |
|
|
Air-cooling Function Planetary Ball Mill |
https://www.tmaxcn.com/cryogenic-planetary-ball-mill-with-jars_p1032.html |
|
|
Ball Mill for Production |
https://www.tmaxcn.com/industrial-nano-powder-planetary-ball-mill-for-production_p1660.html |
|
|
