Laboratory Battery Forced Internal Short Circuit Tester Machine
Model Number:
TMAX-FSCTCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Temperature Controlled Battery High Current Short Circuit Tester Up to 1000A/2000ANext:
Battery High Current External Short Circuit Tester up to 2000A

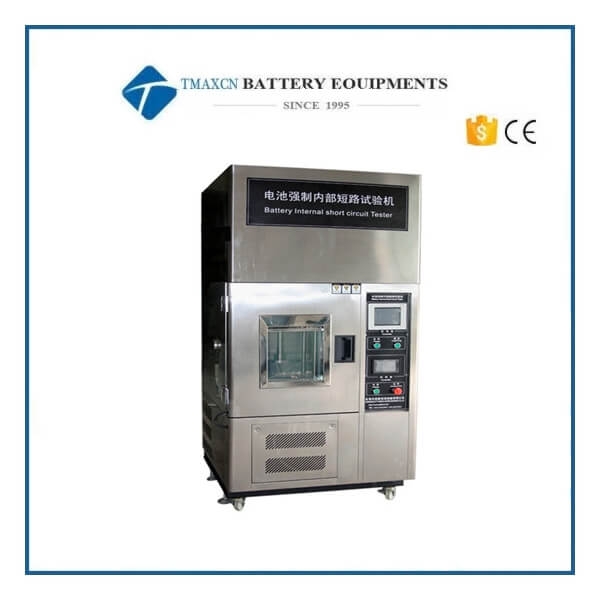

Laboratory Battery Forced Internal Short Circuit Tester Machine
Battery forced internal short circuit tester is a simulated battery under certain ambient temperature conditions for forced internal short circuit test, the test box for the stainless steel, the temperature uniformity, with exhaust function (that is, after the completion of the test exhaust emissions). Test machine control system for the PLC touch screen menu type operation, collecting data frequency up to 100 times / sec, while programming through the PLC set test pressure , pressure holding time, measured pressure, battery voltage, battery temperature, pressure drop speed.
Specification
Model |
TMAX-FSCT |
Temperature Range |
0℃ ~ +100℃(Controllable) |
Resolution |
0.01℃ |
Temperature Fluctuation |
± 0.5℃ |
Temperature Uniformity |
± 2.0℃ |
Max. Low Temperature |
-5℃ |
Temperature Rising Rate |
Ave.3℃/min(0℃ to 100℃,Nonlinear No-load) |
Temperature Cooling Rate |
Ave.1℃/min(100℃to 0℃,Nonlinear No-load) |
Inner Chamber Dimension |
400*500*500mm(W*D*H) |
Safety device |
First over temperature alarm, MCCB overload protection, etc. |
Resolution |
1/10000 |
Force Accuracy |
≤0.5% |
Displacement Resolution |
1/1000 |
Displacement Accuracy |
≤0.5% |
Speed Range |
0.01-20MM/S |
Effective Range |
0 ~ 150mm |
Inner Chamber Material |
Mirror stainless steel with bottom reinforcement |
Outer Chamber Material |
Stainless steel matte line treatment; Insulation material: rigid polyurethane foam + high efficiency compressed glass wool; |
Heater |
Finned heat pipe shaped stainless steel electric heater; Air supply circulation system: convection air supply circulation system; |
Protection device |
No fuse switch, over temperature protection switch, fuse, front open tempered glass observation window, installed explosion-proof lock; |
Standards
IEC62133-2012 JISC8714-2007 GB 31241-2014 GB/T 18287 -2013 GB/T 8897.6-2008
GB/T 21966-2008 MT/T 1051-2007 YD 1268-2003
