Model

OTL1200-I

OTL1200-II

OTL1200-III

OTL1200-IV

Power

2.5KW

2.5KW

3.5KW

4KW

Tube Size

60mm O.D x 1000mm L

80mm O.D x 1000mm L

 100mm O.D x 1000mm L

 120mm O.D x 1000mm L

Product Dimensions (mm)

400x260x565

650x450x670

 650x450x670

 650x500x700

Heating Zone length

420 mm heating zone

420 mm heating zone

420 mm heating zone

420 mm heating zone

Voltage

AC 220 Single Phase, 50/60 Hz

Temperature range

100~1100° C (Continuous); 1200 C (<1 hour)

Max. Heating Rate

<= 20° C /min

Temperature Controllers

1.      Digital controllers with 40 programmable segments for precise control of heating rate, cooling rate and dwell time.

2.      Built in PID Auto-Tune function with overheating & broken thermocouple protection.

3.      Over temperature protection and alarm allows for operation without attendant(s).

4.      +/- 1 ºC temperature accuracy.

5.      Two K-type thermocouples (one for each zone).

6.      RS485 Communications Port.

Thermal Couples

K type

Temperature Accuracy

+/- 1° C

Heating Element

Fe-Cr-Al Alloy doped by Mo

Vacuum Flange & Fitting Ports

1.      One pair of SS 304 vacuum flange with double high-temperature silicone O-rings are Included

2.       One Vacuum pressure gauge is installed, one digital vacuum gauge is available upon request at extra cost

3.       The flange set has two 1/4'' Bard fittings, two needle valve, one set of KF25 quick clamp, one blank flange fitting, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port.

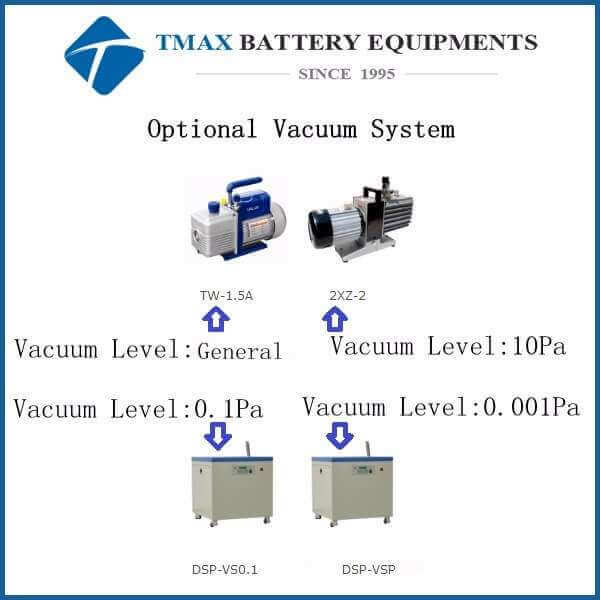

4.       Vacuum level can reach 10^-2 torr by quality mechanical vacuum pump and 10^-5 torr by molecular pump

Application Notes

1.      Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.Vacuum pressure may only be safely used up to 1000°C. The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube.

2.      Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the pressure to below 3 PSI for safe operation.

Warranty

One year limited warranty with lifetime support.

Compliance

CE
