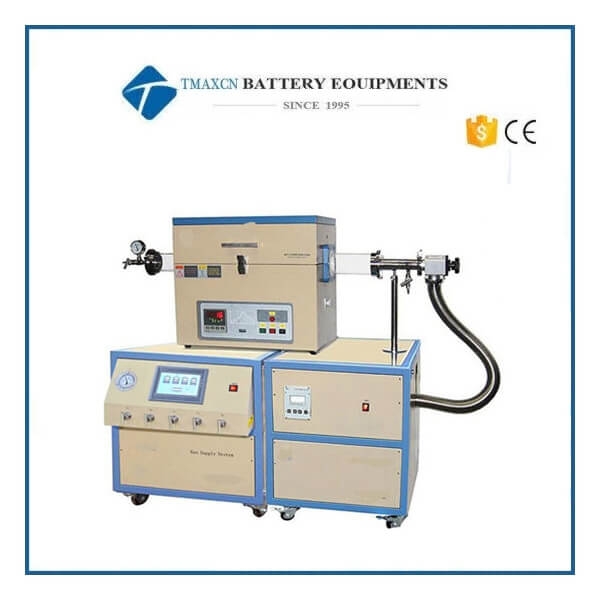

Model

DSP-1200-KS-I

DSP-1200-KS-II

DSP-1200-KS-III

Power

2.5 KW

2.5 KW

3.5 KW

Tube Size

Dia 60(OD) X1460 mm

Dia 80(OD)X1460

Dia 100(OD)X1460

Product Dimensions (mm)

1500x490x600

  1500x490x600

1500x490x600

Heating Zone Length

400mm ( single zone )

Max. Temperature

1200°C (<1 hour)

Continuous Temperature

1100°C

Voltage

AC 208-240V Single Phase, 50/60 Hz

Constant Temperature Zone

150mm (+/-1°C @ 400-1200°C)

Heating Elements

Fe-Cr-Al Alloy doped by Mo

Temperature Control

1.     PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

2.     Built-in over temperature alarm and protection allows for operation without an attendant.

3.     Two K-type thermal couples are included.  One is built in the furnace to control furnace temperature, and another inserted into the tube to monitor sample real temperature profile.

4.     PC control module is included.

Temperature Accuracy

+/ - 1°C

Vacuum Flanges

Stainless steel vacuum flanges are installed on both ends of the tube with heavy duty support.

• Right flange:  KF-25 pump connector and needle valve.
• Left flange: one needle valve and 1/4" thermocouple feed-through and digital vacuum gauge.
• An 24" length x 1/4" Dia. K type thermocouple (included) connected to an Omega temperature calibrator (included) will be inserted through this flange to monitor the heating and cooling rates of the sample's position during furnace sliding.

Vacuum Level

Pls check below pics.

Sliding Rails / Table

1.     Double sliding rail made by Cr-plated steel

2.     Sliding length: 1200 mm

3.     One slide stopping clamp is included for holding the position of the furnace.

Warranty

One year limited warranty with lifetime support.

Compliance

CE

Application Notes

1.     Tube furnaces with quartz tubes are designed for using under vacuum and low pressure <  0.2 bars / 3 psi / 0.02 MPa

2.     Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.

3.     The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube

4.     Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C.

5.     After CVD, the graphene must be transferred from the metal catalyst to another substrate for most applications. By using the graphene transfer tape, the residue can be low.
