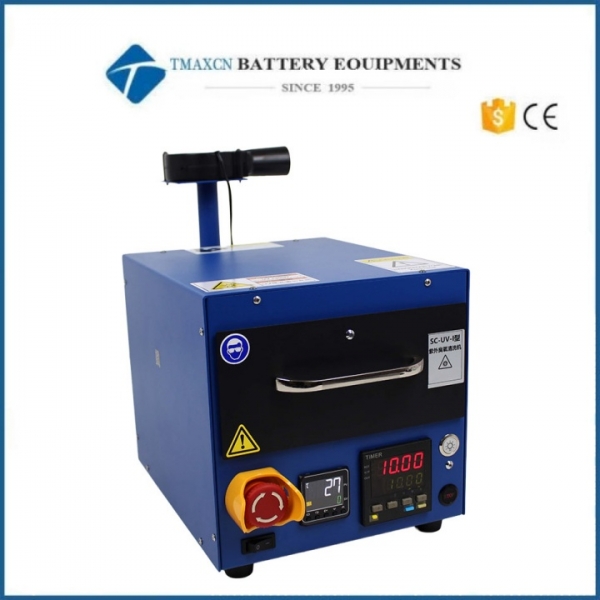

Lab UV Ozone Cleaner Machine for Perovskite Based Solar Cell And Optoelectronic Device Fabrication Purposes

Model Number:
TMAX-SC-UV-I
Input Power:
150W
Dimension(L*W*H):
250mm(W)×300mm(D)×260mm(H)
Compliance:
CE Certified
Warranty:
One year limited warranty with lifetime technical support
Place of Origin:
China
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

Lab UV Ozone Cleaner Machine for Perovskite Based Solar Cell And Optoelectronic Device Fabrication Purposes

Key Features：

1. Drawer type sample stage, easier to take and place substrate.

2. Dual-band, wavelength: 185nm, 254nm, can pass various gases to enhance cleaning effect.

3. Plate holder size: 160mm (W) × 200mm (D) × 5~30mm (H)

4. Function: Countdown display, accurate timing, optional ozone neutralizer to avoid ozone harm.

5. The SC-UV-I model does not come with heating and temperature control function as standard, and the heating and temperature control function is optional (SC-UV-I+ model).

6. The inside of the fuselage is made of stainless steel, which is anti-acid, anti-alkali and anti-corrosion.

UV Ozone Cleaner Specifications （SC-UV-I 、SC-UV-I+）

Material	Made of stainless steel ， which is resistant to acid and alkali, anti-corrosion
Structure	Drawer type sample stage, easier to take and place substrate
Air channel	Reserved intake port, a wide variety of cleaning equipment
Protection	The drawer opening and closing are interlocked with the UV lamp to avoid UV damage
Timer	Button timer, digital countdown, easy to look at it
Operation	The cleaning process can be manually terminated at any time
Accessories	Optional ozone neutralizer to avoid ozone damage
Cleaning wave band	185nm and 254nm
Average light intensity at a distance of 3-5mm from the UV lamp	28~32mW/cm²
Light tube	Dual wave low pressure mercury tube
Light tube power	150W
Irradiation area	150mm×200mm
Adjustable irradiation distance	5~30mm
Timer range	0~99min99s with automatic countdown function
Heating area (SC-UV-I+model only)	Room temperature–200℃ (suitable for SC-UV-I+model)
Air intake, Aire outlet	Air intake： φ8mm， Air outlet： φ25mm
Outer dimension of the device	250mm（W）×300mm（D）×260mm（H）
Tray outer dimension	160mm（W）×200mm（D）×5~30mm（H）
Product Weight	8KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year
